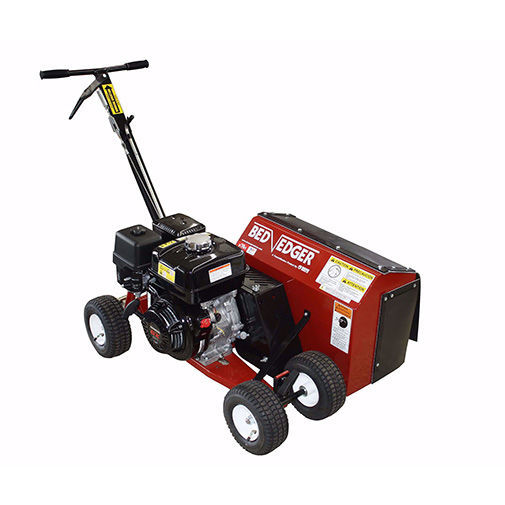

Brown F-791H 9.0 BedEdger/Trencher

Brown F-791H 9.0 BedEdger/Trencher

* MUST SHIP TRUCK FREIGHT. Call Us For A Great Freight Rate (800)769-3741!

The Brown F-791H 9.0 BedEdger/Trencher is a powerful and maneuverable machine driven by a 9-HP Honda GX270 engine, capable of cutting 2 to 7 inches deep with interchangeable rotors that offer widths from ½ inch up to 9 inches, making it versatile for edging, shallow trenching, and bed redefining. To use it with maximum efficiency, begin by selecting the correct rotor for your required depth and width, checking belt tension, clearing the work path, and inspecting the rotor points for wear so the machine starts with full cutting power; once the engine is running at full throttle, let the rotor reach full speed before easing it into the soil, then move forward at a steady, controlled pace that allows the machine to cut cleanly rather than forcing it. In hard or compacted soils, a slight rocking motion helps the rotor bite without bogging down, and keeping an eye on the soil discharge helps you catch buildup early, if spoil starts accumulating under the hood, stop and clear it so the rotor can spin freely. Most issues are easy to troubleshoot: inconsistent depth usually means the wrong rotor is installed or the rotor teeth are dull; power loss often comes from loose belts, a clogged air filter, worn rotor points, or trying to cut too aggressively; excess vibration usually indicates debris or a damaged tooth on the rotor; and starting problems are usually solved by using fresh fuel and checking the spark plug. After each job, clean soil from the hood and rotor, dry the machine thoroughly, inspect and tighten belts, and replace worn carbide points as needed to maintain cutting performance. With proper setup, smooth operation, and routine maintenance, the F-791H delivers clean, consistent trenches and edges while maintaining long-term reliability.

Depth Capabilities

• The F-791H is powered by a Honda GX270 (9 HP) engine.
• According to Brown’s spec sheet, it can trench or edge at a depth of 2 to 7 inches.
• It supports a trench/edge width of ½ to 9 inches, thanks to the use of interchangeable rotors.
• It uses tungsten carbide rotor points, which are durable and suitable for a variety of soil conditions.
• The drive system is a double belt & pulley, helping to reliably transfer power from the engine to the rotor.
• Trenching speed can range from 7 to 30 ft/min, while bed edging is around 10 to 30 ft/min, depending on soil conditions.

Troubleshooting Tips

Here are some common problems you might run into with the F-791H and how to solve them:

1. Poor Cutting Depth or Inconsistent Performance
   • Check that you have the proper rotor installed: using the wrong rotor for your job or soil type can limit depth or efficiency.
   • Inspect the rotor points for wear. Even carbide wears over time; dull points will reduce cutting effectiveness.
   • Clear out any soil buildup under the hood or around the rotor especially in sticky or clayey soils, buildup can reduce cutting performance.
2. Loss of Power / Bogging
   • If the machine bogs during use, slow down your forward feed. Let the rotor spin freely rather than pushing too hard.
   • Check the belt tension, loose or worn belts can slip and reduce power transfer.
   • Inspect the air filter; a dirty or clogged air filter will starve the engine of air and reduce performance.
3. Starting Problems
   • Use fresh, clean fuel. Stale or contaminated gas can make starting difficult or cause misfires.
   • Examine the spark plug: remove it and check for fouling or wear, then clean or replace as needed.
   • When starting, set the throttle correctly to allow the rotor to spin before engaging the clutch.
4. Vibration / Rotor Imbalance
   • Excessive vibration usually means there's debris caught on the rotor or one of the rotor points may be damaged or missing. Stop and inspect.
   • Ensure the clutch fully disengages when released. Partial engagement can cause the rotor to spin unexpectedly.
   • Check tire pressure. Low or uneven tire pressure can make the machine unstable and affect trench depth consistency.
5. Safety / Unexpected Obstacles
   • Always survey your work area before trenching: look for buried utilities, rocks, or roots.
   • If you hit something solid (rock, root, pipe), immediately release the clutch and stop, then investigate.
   • Use proper protective gear: eye protection, gloves, and ear protection are especially important when trenching.

Tips for Best Efficiency

To run the F-791H smoothly, cut cleanly, and extend its lifespan, follow these best practices:

1. Pre-Job Setup
   • Select the right rotor for the job (depth, width, soil type) having the correct rotor increases efficiency.
   • Inspect belt alignment and tension before each job; proper belt setup helps maintain power.
   • Clear rocks, debris, or any obstacles from the trench line before starting.
2. Starting & Engagement
   • Start the engine at full throttle and allow the rotor to spin freely before engaging the clutch.
   • Lower the handle slowly so that the rotor contacts the soil gently, reducing stress on drive components.
3. Operating Technique
   • Use a steady, controlled forward motion. Let the rotor do the work; avoid forcing the machine.
   • In harder or more compacted soils, use an oscillating (rocking) motion: gently shift the handle front-to-back while advancing to help the rotor bite.
   • Keep an eye on how the spoil is being thrown: if soil is building up, pause to clear the rotor and hood.
4. Soil Management
   • The F-791H neatly places the excavated soil beside the trench so you can backfill easily while it's still loose.
   • After trenching, clean out any soil from the hood and rotor to prevent hard clods from sticking and making future cuts harder.
5. Maintenance & Storage
   • After each use, clean the machine (especially under the hood and around the rotor) and dry it to prevent rust or buildup.
   • Regularly inspect rotor points and replace them when they are dull. Sharp carbide points make a big difference in cut quality.
   • Lubricate all moving or pivot points per the manual.
   • Store in a dry, covered place to protect belts, the pulley system, and other components from weather.
6. Safety Practices
   • Mark and clear your trench path before you start: hidden nails, rocks, or utility lines are hazards.
   • Use the clutch to stop the rotor before repositioning or transporting the machine this helps prevent accidents and reduces stress on components.
   • Always wear safety gear: gloves, eye and ear protection, and sturdy footwear.

Summary

The Brown F-791H (9-HP Honda) BedEdger / Trencher is a very capable, maneuverable machine that lets you trench or edge to 2–7 inches of depth with a variety of rotor options (widths from ½″ to 9″), all powered by a rugged double-belt drive and tungsten carbide cutting points. It’s most efficient when set up properly (right rotor + belt tension), started smoothly (let the rotor spin before digging), and handled with consistent, controlled forward motion especially in tough or compacted soils, where a slight rocking motion helps the blades cut cleanly without overloading the engine. Common issues like power loss or stumbling are usually caused by loose belts, dirty filters, or soil buildup, so regular inspections and routine cleaning go a long way. With careful operation, periodic maintenance (like checking rotor wear and belt tension), and proper storage, the F-791H can deliver reliable, high-quality trenching or edging for a wide range of landscaping jobs.
