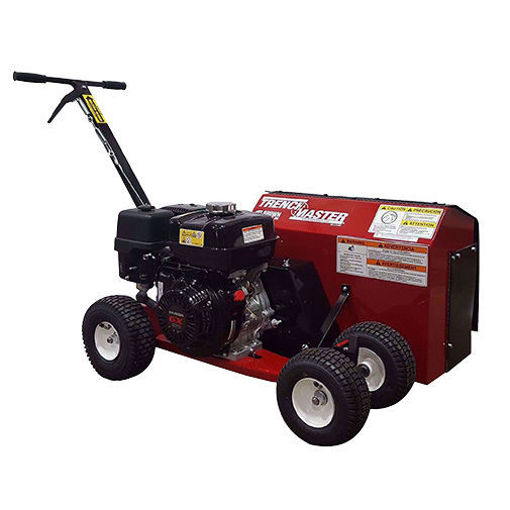

Brown TrenchMaster F-704H6.5

Brown TrenchMaster F-704H6.5

* MUST SHIP TRUCK FREIGHT. Call Us For A Great Freight Rate (800)769-3741!

The Brown TrenchMaster F-704H6.5 is a compact, durable mini-trencher designed for clean, consistent cuts typically up to 7 inches deep with trench widths ranging from ½″ to 2″ depending on the rotor used and it performs best when kept well-maintained and operated with smooth, steady technique. For maximum efficiency, start by choosing the correct rotor and marking a clear trench line, then make your first pass shallow to break the surface before deepening the trench in controlled, progressive cuts; this reduces strain on the Honda GX200 engine and prevents stalling. While operating, move at a consistent pace and let the machine do the work instead of forcing it forward, and periodically clear out soil especially in clay to maintain cutting speed. Proper maintenance directly affects performance: keep belts tight and aligned, inspect rotor points for wear, maintain clean air and fuel systems, and check tire pressure for stability and uniform depth control. Troubleshooting is usually straightforward; poor running often comes from old fuel, clogged filters, or a fouled spark plug, while loss of cutting power may indicate belt slip, worn rotor teeth, or too-aggressive cutting depth, so checking these basics solves most problems quickly. To keep the F-704H6.5 running efficiently for years, clean it thoroughly after use, lubricate and inspect moving parts regularly, store it dry, and follow the engine and machine service schedules, ensuring reliable starts, strong cutting action, and consistently clean trenches.

Depth Capabilities

• According to Brown’s spec sheet, the maximum trenching depth is 7 inches for the F-704H6.5 model.
• The trench width can vary from ½″ up to 2″, depending on the rotor used.
• The machine uses a double belt & pulley drive system.

Troubleshooting Tips

Here are common issues you might run into with a TrenchMaster, and how to troubleshoot them:

1. Engine Won’t Start or Runs Poorly
   • Check the fuel: make sure you have fresh, clean fuel.
   • Inspect the spark plug: remove it, check for fouling, clean or replace as needed.
   • Air filter: a dirty air filter can choke the engine; clean or replace it.
   • Carburetor: if it’s clogged, you may need to clean or rebuild it.
2. Machine Stalls or Loses Power While Trenching
   • Overloaded trench: the rotor may be cutting too deep or in very hard soil. Reduce trenching depth or take slower passes.
   • Belt slipping: examine the drive belts. If they’re loose or worn, they could be slipping, reducing power transmission.
   • Pulley alignment or damage: misalignment or damage can make the belts not run smoothly.
3. Rotor Problems
   • Rotor not turning: check the clutch lever (TrenchMaster has a clutch to disengage the rotor) make sure it's fully engaged when working.
   • Rotor damage: tungsten carbide rotor points can wear down. Inspect regularly and replace when needed.
   • Rotor changing: Brown’s design lets you change rotors by removing a single nut.
4. Turf or Soil Build-Up
   • Clay hood: the machine has a standard clay hood to help reduce buildup.
   • Clean regularly: after use, especially in sticky or clayey soil, clear out dirt so that buildup doesn’t impair cutting.
5. Safety / Operational Issues
   • Clutch lever: make sure the clutch fully cuts power to the rotor when not in use, helps with safety.
   • Tire pressure: since the trencher has pneumatic tires, check tire pressure to ensure stability and consistent trenching depth.
6. Maintenance
   • Belt tension: check and adjust periodically.
   • Engine maintenance: follow standard engine maintenance (oil change, air filter, spark plug) on your Honda GX200.
   • Lubrication: ensure any specified points are greased or lubricated per the manual.

How to Use It Efficiently

To get the best performance and longevity from the F-704H6.5, here are some tips:

1. Pre-Job Setup
   • Choose the right rotor for your job: smaller width for fine cable trenches, wider for pipe, etc.
   • Mark your trench line: use string or spray paint so you steer straight.
   • Start with a shallow pass: especially in hard or compacted ground, start shallow, then deepen with subsequent passes.
2. Operating Technique
   • Use controlled, steady forward motion: don’t force it too quickly; let the rotor do the work.
   • Engage the clutch lever properly when you want the rotor to spin, disengage when repositioning.
   • Monitor cut rate: if the machine slows noticeably, you may be overloading it; adjust your speed or depth.
3. Soil Management
   • In clay or sticky soil: stop periodically to clear out soil from the hood / rotor area.
   • Use water carefully: if soil is very dry and hard, a little moisture (if allowed) can help cut, but too much water can gum up the rotor.
4. Transport & Storage
   • When not in use, clean the trencher thoroughly to remove soil.
   • Store in a dry place to avoid rust or deterioration of belts and metal parts.
   • Before storing long-term, drain or stabilize fuel if recommended by your engine manual.
5. Preventive Maintenance
   • Follow the maintenance schedule in the Brown TrenchMaster operator’s manual (oil, air filter, belts, etc.).
   • Inspect rotor points regularly and replace when worn to maintain cutting efficiency.
   • Keep spare belts and a spare rotor (if you can) on hand; that way, you minimize downtime.

*NOTE: This item is special order

May not be exactly as pictured
