905-00-01 Little Wonder BedShaper, Hydrostatic BedEdger

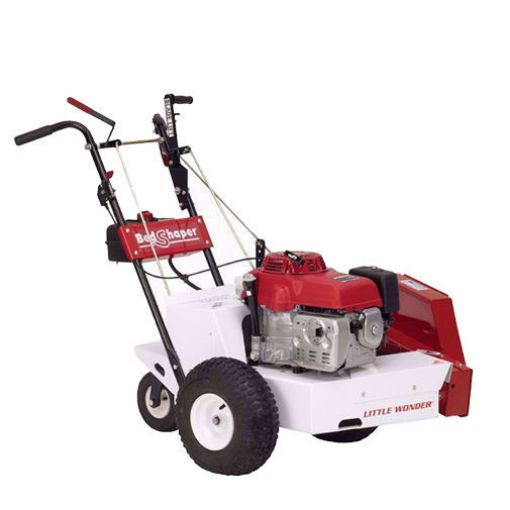

Little Wonder 905‑00‑01 BedShaper

The Little Wonder 905‑00‑01 BedShaper is a professional-grade, walk-behind landscape tool designed for creating clean, precise beds and borders in both residential and commercial settings, powered by a reliable Honda GXV390 engine and equipped with a notched 16.25-inch spring-steel blade capable of cutting up to 4.5 inches deep into compacted soil or turf. Depth control is achieved through a 7-position gauge wheel, allowing operators to select cuts as shallow as 0.5 inches or as deep as the full 4.5 inches, ensuring consistent shaping without overloading the engine. For best efficiency, operators should set a moderate depth for initial passes and gradually increase to the desired level, allowing the blade to do the work rather than forcing the machine too quickly through the soil. The hydrostatic drive provides smooth, self-propelled operation, and careful use of the blade engage and bypass controls ensures precise cutting and safe maneuvering, especially around curves or tight beds. Regular maintenance is essential for reliable operation: keep the blade sharp, inspect and grease wheel bearings, check blade nut torque, clear debris from the gauge wheel and frame, and maintain the engine with fresh fuel, clean air filters, and properly gapped spark plugs. Common troubleshooting includes adjusting the gauge wheel if the blade is cutting too shallow or too deep, inspecting the hydrostatic transmission or drive belts if forward motion is sluggish, and checking for bent or worn blades if vibration or uneven cuts occur. By combining proper depth settings, steady walking pace, careful use of the hydrostatic controls, and consistent blade and engine maintenance, the Little Wonder 905‑00‑01 delivers highly efficient, precise, and professional-quality bed shaping, making it an indispensable tool for landscapers and gardening professionals who require consistent results with minimal downtime.

Depth Capabilities / Cutting Depth

• The 905‑00‑01 BedShaper has a maximum cutting depth of 4.5 inches.
• Depth is controlled by a 7-position gauge wheel, which lets you choose how deeply the notched blade cuts into the soil.
• According to the spec sheet, the gauge wheel lets the machine cut as shallow as 0.5 inches up to 4.5″.
• The blade itself is a 16.25-inch heat-treated spring-steel disc, designed to handle tough soil while maintaining durability.

Easy Troubleshooting Tips

Here are common issues with the 905‑00‑01 and how to address them:

1. Blade Not Cutting Deep Enough / Too Shallow
   • Use the 7-position gauge wheel to adjust: rotate it to a higher notch for deeper cut, or to a lower notch for shallower.
   • Check that the gauge wheel is properly seated and not worn or damaged; a bad wheel can throw off your depth.
   • Make sure the blade is sharp. A dull notched blade won’t cut cleanly or deeply, especially in dense or compacted soil.
2. Engine Performance Issues
   • The 905‑00‑01 uses a Honda GXV390 engine. If the engine is hard to start or sputters, check for fresh fuel, a clean air filter, and a good spark plug.
   • Inspect the hydrostatic transmission (since it’s self-propelled) if the drive feels weak or doesn’t move, there might be transmission or belt resistance.
3. Vibration / Uneven Cutting
   • Make sure all bolts, especially around the blade housing and frame, are tight — vibration can loosen things over time.
   • Inspect the blade for damage or bending; a warped blade will cause rough cuts or vibration.
   • Because the BedShaper has a differential (for turning), ensure the wheels are not binding or dragging, that could affect how smoothly it moves.
4. Control / Maneuvering Problems
   • The machine has a hydro-engage / bypass control for the blade from the operator’s position. If the blade does not engage or disengage smoothly, check this control linkage and make sure it’s not damaged or obstructed.
   • For tight curves: the zero‑turning-radius design should help but make sure your tire pressure is correct and both sides of the drive system are working well to allow proper turning.
5. Maintenance / Safety
   • Always stop the engine and disconnect spark plug (or shut off) before making any adjustments, changing gauge wheel, or inspecting parts.
   • Grease the roller bearings as per the owner’s manual so the wheel and blade operate smoothly over time.
   • Regularly remove dirt and debris from the gauge wheel, blade, and frame to prevent buildup that could interfere with depth control or the transmission.

How to Use It for Best Efficiency

To get the most out of the Little Wonder 905‑00‑01 BedShaper, follow these best practices:

• Set Depth Smartly: Use the gauge wheel to start at a moderate depth (e.g., 1–2″) for initial passes rather than jumping to full depth. This reduces load on the engine and lets you define the shape more precisely.
• Use Hydrostatic Drive Carefully: Because the unit is self-propelled forward and reverse, use the hydro-engage control smoothly to engage the blade only when you’re ready to cut, and use bypass when making non-cutting moves or repositioning.
• Maintain a Steady Pace: Walk at a steady, moderate walk speed. Let the Notched blade do the work; don’t force it too fast or try to push it too hard, especially when cutting deep.
• Sharpen / Replace Blade When Needed: Even though the blade is robust spring-steel, it will dull over time. A sharp blade cuts more efficiently (less horsepower wasted) and makes cleaner edges.
• Regular Maintenance: Check and grease wheel bearings, inspect the gauge wheel for wear, verify blade nut torque, and service the engine (oil, air filter, etc.).
• Storage: When storing for a while, clean the machine (especially the gauge wheel and blade), drain or stabilize fuel per the Honda engine guidelines, and keep it in a dry place to prevent rust or deterioration.
