Brown F-1202H13.0 TrenchMaster

Brown F-1202H13.0 TrenchMaster

* MUST SHIP TRUCK FREIGHT. Call Us For A Great Freight Rate (800)769-3741!

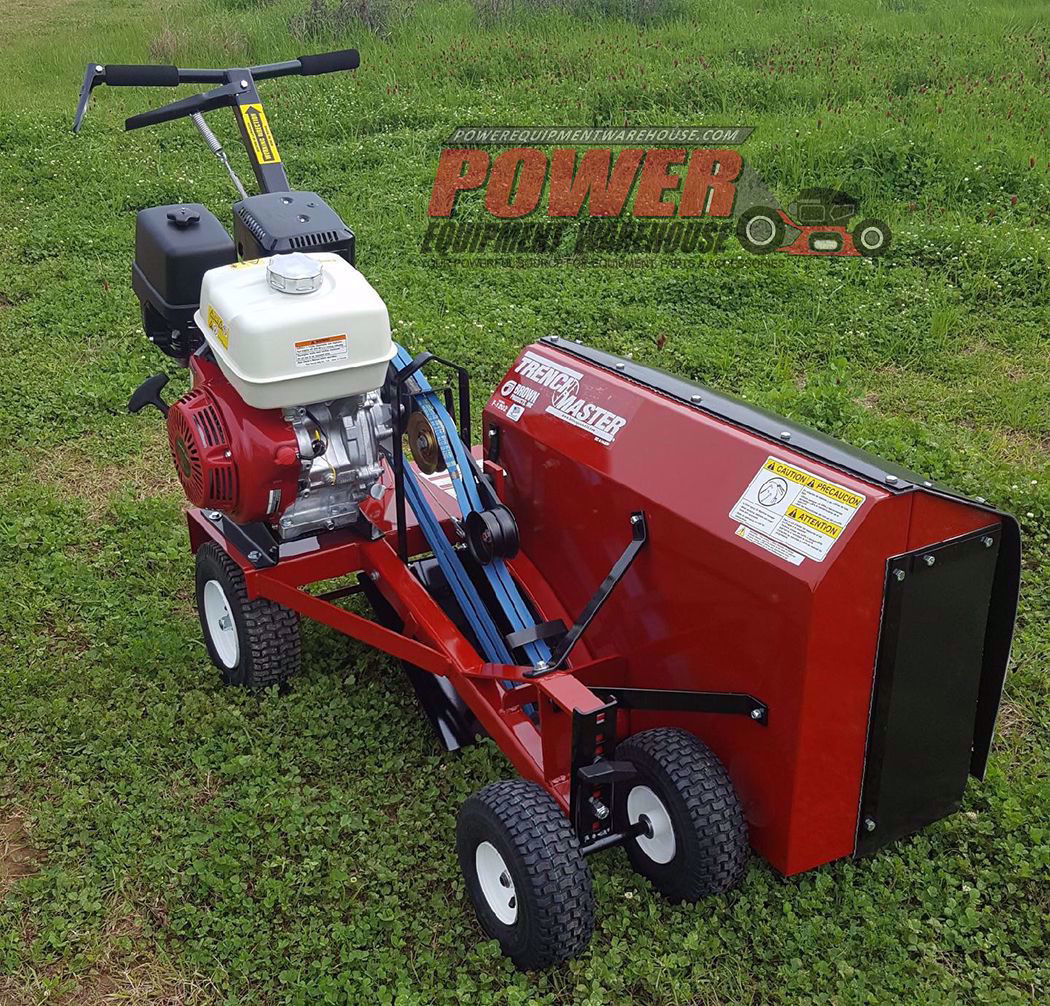

The Brown F-1202H13.0 TrenchMaster is a commercial-grade walk-behind trencher powered by a 13-HP Honda GX390 engine and designed for fast, narrow trenching in turf, clay, and mixed soils, offering a trenching depth range of 3 to 12 inches depending on the rotor installed and soil conditions, with a standard trench width of about 3 inches. Because the machine uses a double-belt drive system and interchangeable rotors, performance depends heavily on correct belt tension, sharp rotor teeth, and selecting the rotor best suited for the soil, shallower rotors cut faster and with less engine load, while deeper or more aggressive rotors are better for cable burial, edging, or root pruning. For best efficiency, operators should start the engine, bring the rotor to full speed, then slowly lower the handle so the teeth engage the ground without bogging the engine, maintaining a steady walking pace rather than forcing the machine, and using a gentle rocking motion in very hard or compacted soil to help the rotor bite. Consistent maintenance is key: clean the clay hood after every use so dried soil doesn’t restrict material flow, inspect belts for wear or slack before each job, keep the air filter clean, verify proper engine oil level, and check rotor teeth for dullness or damage because worn points dramatically reduce cutting efficiency. Troubleshooting is typically straightforward, if the engine won’t start, look first to fuel, spark plug, air filter, and choke position; if the rotor slips or doesn’t spin well, check belt tension and pulley alignment; if vibration increases, inspect the rotor bearings; and if the machine struggles to dig, confirm you’re using the correct rotor for the soil type and that the teeth haven’t worn down. Operating safely also improves results: always disengage the rotor before adjustments, avoid trenching without locating underground utilities, and never force the machine through obstructions like buried rocks or large roots. With proper rotor selection, correct belt adjustment, steady operating technique, and routine maintenance, the F-1202H13.0 delivers fast, clean trenches and long, reliable service life.

Depth Capabilities

• This model has a trenching depth range of 3″ to 12″, depending on soil conditions and rotor choice.
• The maximum trench width is 3″.
• Rotor (digging bit) options are key: Brown offers multiple rotors for the F-1202, including:
  • 12-76 rotor: 12″ deep × 3″ wide, with 5 carbide points.
  • There are also 7″, 9″, and other depth rotors.
• From the manual: choosing a smaller (shallower) trench when possible improves efficiency, reduces soil cleanup, and prolongs rotor life.

Easy Troubleshooting Tips

Here are common issues you might run into with the F-1202H13.0 and how to address them.

1. Engine Doesn’t Start or Runs Poorly
   • Check fuel: make sure you're using fresh, correct gasoline.
   • Inspect the spark plug: dirty or fouled plugs can prevent starting.
   • Air filter: ensure it’s clean; a clogged filter restricts airflow and hurts performance.
   • Throttle / choke settings: use the choke when starting cold, then adjust as the engine warms.
2. Rotor Belt Problems
   • This trencher uses a double belt + pulley drive system.
   • If the rotor isn’t turning or slips, inspect belt tension. Loose belts can slip, while over-tight belts can cause wear.
   • Also check pulley alignment; misalignment can reduce power transfer.
3. Cutting Performance Is Weak
   • Check the rotor points (teeth) if they’re worn or dull, they’re less effective.
   • Make sure you're using the right rotor for the soil: clay, rock, or root pruning require different rotors. (See Brown’s rotor compatibility list.)
   • In very hard soils, use a more aggressive digging technique (see below).
4. Overheating or Excess Vibration
   • Inspect engine oil: low or dirty oil can lead to overheating.
   • Check bearings (rotor spindle): worn bearings can vibrate and cause damage.
   • Verify that belt tension is correct (too tight or too loose can both cause issues).
5. Rotor Removal / Replacement Issues
   • Use a 1½″ wrench or socket to remove the rotor nut.
   • Be careful using an impact wrench: over-tightening can make future removal difficult.
   • Follow the rotor compatibility chart when ordering a replacement.
6. Clogging / Soil Build-up
   • After trenching, clean out the soil chute (clay hood) so clay or dirt doesn’t harden and block future runs.
   • Regularly clear out debris to maintain performance.

How to Use It for Best Efficiency

To maximize performance and minimize wear, here are some best practices:

1. Choose the Right Rotor
   • Use the shallowest rotor that meets the requirements of your job. As the manual notes, smaller trenches mean faster cuts, less spoil, and less wear.
   • For root pruning, use a root-pruner rotor.
   • For rockier soil, consider a rock rotor (Brown offers 1.5″ wide or 3″ wide rock rotors in different depths).
2. Proper Operating Technique
   • When starting, engage the clutch only after the rotor is at speed. Then gradually lower the handle so the rotor engages the ground.
   • Use a steady walking pace. Don’t force the machine too fast; let it dig.
   • In extremely hard soil or clay, use an oscillating action: gently rock the machine front-to-back to help the rotor “bite” better.
   • Once the desired depth is reached, pull the unit back at a steady rate, avoiding overloading the engine.
3. Maintenance Routine
   • Before each job: check belt tension, inspect rotor condition, ensure proper tire pressure, and clean any debris in the trench area.
   • After every job: clean out the clay hood and inspect the rotor, belts, and any moving parts.
   • Periodically (per the manual): grease bearings, change engine oil, and check belt wear.
4. Safety First
   • Always disengage the rotor via the clutch lever before making adjustments or changing rotors.
   • Wear appropriate personal protective equipment: gloves, safety glasses, and steel-toed boots.
   • Before trenching, have utilities located (call your local service marking company) to avoid damaging underground lines.
   • Be especially careful starting the trench. Rocks, roots, or buried objects can become projectiles.

When to Call a Technician / Professional

You might need to engage a pro when:

• The belts constantly slip or burn despite proper tension.
• You hear grinding or feel wobble, possibly a sign of bearing failure on the rotor.
• The engine frequently overheats or loses power.
• You’re unsure about rotor selection or compatibility for tricky soil.

*NOTE: This item is special order
