Rhino GPD-45 Multi-Pro Post Driver

Rhino GPD45 Multi‑Pro Post Driver

Video: Honda Engine Shroud on Rhino Post Drivers

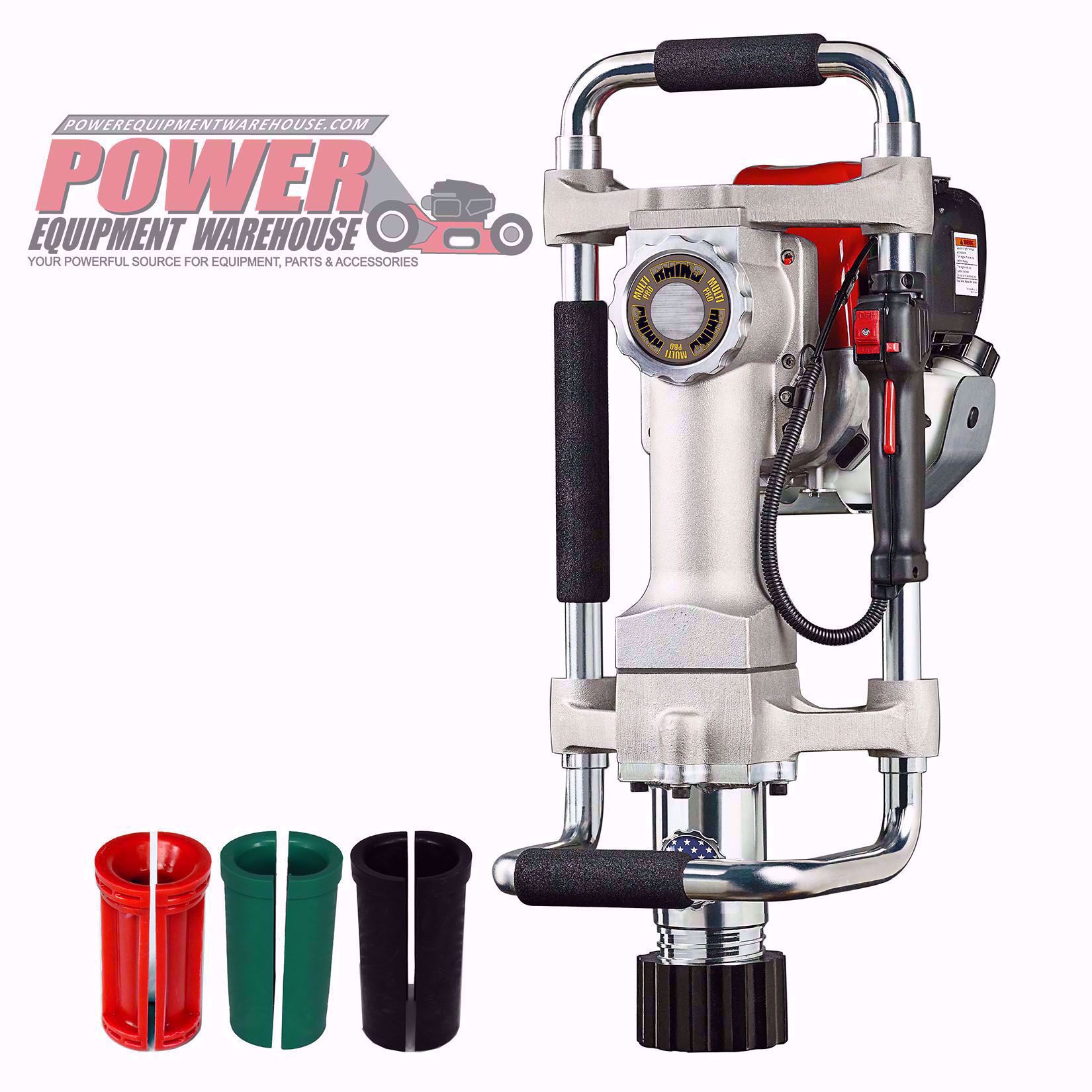

The Rhino GPD‑45 Multi‑Pro is a heavy-duty gas-powered post driver with a Honda GX35 4-stroke engine, designed to drive larger or more challenging posts (such as T-posts, ground rods, form ­pins, and U-channel) into the ground by delivering a powerful 1,720 hammer blows per minute, and according to Rhino’s technical‑data guidance, it performs best in light to medium soils for example, sandy or humus-rich soil (light), or loamy soil with occasional small gravel or some clay (medium) because these soil types contain voids that allow displaced earth to compact around the post for a tight hold; in contrast, heavy soils (very dense clay, heavy shale, large gravel, or very dry, compacted ground) resist displacement more, making post-driving slower or more difficult, and in such cases Rhino recommends lightly pre‑wetting the ground prior to driving so the soil compacts more readily as the post is driven in. When troubleshooting the GPD‑45, a first step is to check the internal lubrication: service instructions in the manual specify inspecting the grease in the crankcase ,there should be a visible grease ring, and if it’s thinner than about ¼″ (6 mm) or if the grease is dark or dirty, you must remove the old grease, clean the hammer and anvil components, and add fresh Rhino-approved grease to the correct level (but not overfill). You should also regularly tighten all fasteners (bolts on the body, handle, chuck) since the violent hammering action can gradually loosen things. Make sure the air filter is clean and the engine oil (SAE 10W-30) is at the correct level before each use, because poor air or oil conditions hurt performance. optimal use and efficiency, align your post carefully, use the correct chuck adapter (the GPD‑45 has a 2.5″ master chuck, but must be fitted with the right adapter for T-posts or rods), apply steady downward pressure while giving a smooth, full throttle to engage the hammer, and maintain a consistent rhythm, don’t force the driver, let the hammer do the work. Watering the soil lightly in dry or compacted conditions helps the post go in more smoothly and settle firmly. Periodically pause when driving deep or many posts to check that the post remains vertical and that the driver is still aligned, then resume. After finishing, perform cleanup and maintenance: disassemble to inspect the hammer/anvil for wear, re-grease as needed, tighten all bolts, and store the driver upright (as recommended) to avoid internal damage or fluid leaks.

Soil‑Type Capabilities

• According to Rhino’s “Tech Data,” the GPD‑45 (and other GPD-series drivers) are optimized for light to medium soils, because these soils have enough voids for the displaced soil to compact around the post as you drive it.
• Rhino defines light soil as things like beach sand, clean sand, or soil high in organic matter; medium soil includes soil with some clay, occasional gravel (up to ~1.5"), or light shale.
• In heavy, compacted, or very dry soils (for example dense clay, lots of rock, or very compact fill), driving is more difficult because there are fewer voids for soil to move into.
• Rhino recommends lightly wetting very dry or compacted soil before driving, just a little water can help the soil compress better around the post, which reduces driving time and makes the post more securely set.

Troubleshooting Tips

Here are common problems you might run into with the GPD‑45 and how to address them efficiently:

1. Engine / Starting Problems
   • Use the correct oil: The GPD‑45’s Honda GX35 engine requires SAE 10W‑30.
   • Inspect the air filter: A dirty or clogged air filter restricts airflow, making the engine run poorly or fail to start.
   • Perform a hot restart correctly: If the engine is warm, some manuals (or similar Rhino driver manuals) explain a specific “turn off → set choke open → pull several times → restart” sequence.
   • Inspect the driver’s interior: Before use, check the inside of the chuck tube for obstructions, wear, or damage (especially around the anvil).
2. Hammer / Anvil / Lubrication
   • Check the grease: The crankcase should be properly greased with Rhino’s recommended lubricant. Low or contaminated grease will degrade hammer performance or damage parts.
   • Service internal parts: Periodically disassemble (per manual) to inspect and clean the hammer and anvil, then re-grease.
   • Vibration check: Because of strong hammering action, fasteners can slowly loosen. Regularly inspect and tighten all bolts.
3. Performance / Driving Slowness
   • If driving seems sluggish, verify your post adapter is correct for the post size. Using the wrong adapter reduces efficiency.
   • Fuel or venting issue: If fuel isn’t flowing properly, check for vent blockage or fuel delivery problems, since restricted fuel can reduce engine power.
   • Post stuck in adapter: The manual describes how to remove a lodged post by turning off the engine, removing the locking nut, and using pry points on the adapter.
4. Storage / Safety
   • Store the driver upright: Rhino’s safe storage recommendation is to keep the driver upright to avoid damaging internal components.
   • Clean after use: Wipe down the exterior, clean debris from the chuck / anvil, and re-lubricate as needed to reduce long-term wear.
   • Safety check: Before each use, inspect for wear, cracks, or damage. Do not operate if any part is compromised.

Tips for Best Efficiency in Use

To get the most out of the GPD‑45 , use these operational techniques:

• Align the Post Properly: Make sure the post is centered and straight before starting to drive. Misalignment can reduce impact efficiency and damage the post or driver.
• Use Correct Adapter: Use the right chuck adapter for the post, the GPD‑45 accepts a 2.5″ master chuck plus adapters (1″, 1¾″, 2″, etc.).
• Apply Steady Pressure + Throttle: Hold the driver firmly, apply steady downward force, and gradually throttle up to engage the hammer. Once the post is going in straight, you can run at full throttle to complete the drive.
• Water the Ground If Needed: In dry or very compact soil, pre-wetting helps reduce resistance. Periodic light watering while driving can help the soil compress better around the post.
• Take Breaks / Check Often: Stop periodically to recheck alignment and hammer function, especially if driving deep or through difficult soils.
• Inspect & Maintain Frequently: After a day of use, inspect the hammer/anvil, clean off dirt, re-grease, and retighten all hardware. This extends life and keeps driving consistent.
• Use Vibration-Dampening: Wear good gloves and hold the driver with its anti-vibration system engaged; this not only makes the job safer, but also more comfortable over long driving sessions.

Why This Model Matters

The Rhino GPD‑45 Multi‑Pro hits a sweet spot for driving larger or heavier posts (compared to smaller handheld drivers) while still being portable and efficient. Its higher-impact hammer and robust construction give you more “driving power” per blow, especially in soil conditions that might bog down a lighter driver. But like any post driver, its performance is strongly tied to using the right adapters, prepping the soil, and maintaining the internals, when used properly, it’s a time-saver, and when misused, it can wear out or struggle just like other tools.

Click here for GPD45 schematics
