Rhino GPD-40 Post Driver

Rhino GPD-40 Post Driver

Video: Honda Engine Shroud on Rhino Post Drivers

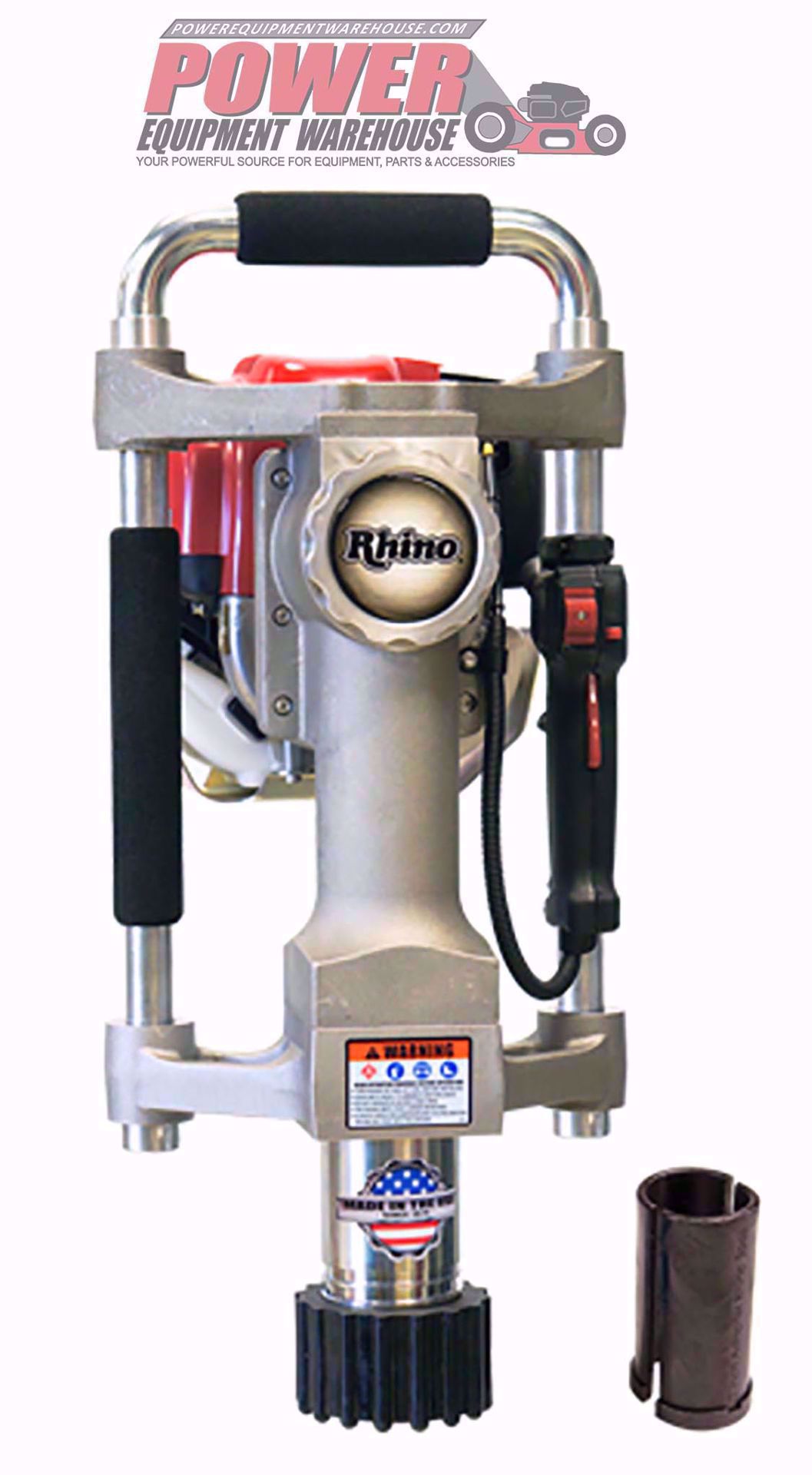

The Rhino GPD-40 is a 37.8‑lb, gas-powered post driver with a Honda GX35 4‑stroke engine and a 2.50″ master chuck (with adapters for smaller posts), delivering around 1,720 hammer blows per minute, enough force for many standard fencing and post-setting jobs. Rhino’s own technical data and soil‑type guidance show that this model (and similar Rhino drivers) are designed primarily for light to medium soils, for example, sandy soil, humus‑rich topsoil, or moderately loamy ground with occasional gravel or some clay content. The logic is that in lighter soils, there are enough “voids” so the displaced dirt can compact beside the post as you drive it, giving the post a firm hold; by contrast, heavy, compacted, dry, or rocky soils, such as dense clay, heavy shale, or ground with large gravel, naturally resist displacement, reducing the driver’s effectiveness. Rhino even recommends lightly wetting very dry or compacted spots before driving, since a bit of moisture can drastically reduce resistance and make the post set more quickly.

When you hit trouble with the driver, the primary fix points are engine maintenance, lubrication, fasteners, and correct post and adapter use. The owner’s manual highlights checking engine oil (SAE 10W‑30) every use and keeping the air filter clean, because low or dirty oil and air starvation commonly cause hard starts or sluggish engine behavior. If the hammer/anvil assembly feels rough or the driver seems weak, you should inspect the grease in the crankcase, there should be a visible grease ring; if the grease is below ~6 mm or is dark/contaminated, add fresh Rhino‑approved lubricant (but don’t overfill). For situations where a post flares and gets stuck, the manual gives a step-by-step: turn off the engine, remove the locking nut, let the adapter slide down, and if needed use the pry-gaps on the adapter base to carefully free it, always re-tightening the locking nut before resuming. Also, because the tool vibrates heavily, fasteners should be checked and retightened regularly to avoid loosening.

To use the GPD-40 as efficiently as possible, you’ll want to focus on preparation, technique, and maintenance. First, select the correct adapter for your post (T‑post adapter, ground‑rod adapter, etc.) so the post sits squarely in the chuck and doesn’t wobble. Before starting, align the post carefully and apply steady downward pressure while throttling to engage the hammer; once the post begins to go in straight, you can increase throttle to full hammer speed until you reach your desired depth. If the ground is dry, give it a light spray of water, this softens compact soil and lets the displaced dirt settle better as the post goes down, making the job faster and the setting firmer. After a few inches of driving, it’s good practice to pause and confirm the post remains vertical and the driver is still properly aligned so you avoid bending or misdriving the post. Once you finish, perform a quick inspection: check the hammer/anvil for wear, wipe down and clean the driver, re‑grease if needed, and tighten any loose bolts; storing the unit upright (as recommended in the manual) helps prevent oil or lubricant leaks and preserves internal components.

Overall, the GPD‑40 offers a strong balance of portability and power for a wide range of fencing and post‑installation tasks, when used in compatible soil types and maintained properly, it can make post-driving much faster and more efficient than manual methods, yet like any tool its performance depends heavily on soil conditions, proper setup, and regular care.

Soil-Type Capabilities

• According to Rhino’s technical data, the GPD‑40 is designed to work most effectively in light to medium soils, where there is enough “void space” so displaced soil can compact around the post.
• Rhino defines light soil as things like beach sand, sandy soil, or soil with a high organic/humus content, and medium soil as soil containing some clay, occasional gravel (up to ~1.5"), or light shale content.
• In heavy, compacted, or dry soils (clay, rock-laden, or dense fill), driving becomes more difficult because there are fewer voids for displaced soil. Rhino’s guidance suggests that for such conditions, you may need a more powerful post driver, or you should pre-wet the soil to make driving easier.
• Importantly: Rhino recommends lightly wetting very dry or compacted areas before driving. Moist soil helps the displaced soil compress better around the post, reducing driving time and increasing setting quality.

Easy Troubleshooting Tips

Here are some common issues with the GPD‑40 and how to troubleshoot them:

1. Starting Issues / Engine Trouble
   • Use the choke correctly: When starting from cold, set the choke to “closed” per the owner’s manual.
   • Make sure the throttle is locked into high idle while starting (as described in the manual) so the engine can run up enough to warm.
   • If you’re doing a hot restart (engine was running recently), follow Rhino’s procedure: turn the engine off, open the choke, pull the starter a few times, then restart with the choke open.
   • Check the air filter: A clogged or dirty air filter restricts airflow and can cause hard starting or poor performance.
   • Check and maintain oil level: Use SAE 10W-30 as specified; incorrect or low oil can damage the engine or impair starting.
2. Hammer / Anvil or Lubrication Problems
   • Inspect the internal grease in the crankcase: The manual recommends checking the grease depth and condition.
   • If the grease is low or dark/dirty, add Rhino‑approved grease up to the proper level.
   • Service the hammer and anvil periodically: disassemble per the manual to inspect, clean, and regrease as needed.
3. Vibration / Loose Components
   • Because the driver vibrates a lot, check and retighten bolts and fasteners every use to prevent loosening.
   • Inspect the chuck adapter and make sure it’s correctly installed, as a misaligned or loose chuck can cause wobble or inefficient driving.
4. Performance Loss or Sluggish Driving
   • If the driver seems sluggish, check if the fuel is fresh and not contaminated.
   • Make sure the fuel tank vent isn’t blocked, a blocked vent can cause vacuum in the tank, restricting fuel flow.
   • Confirm the correct chuck adapter is being used for the post type, wrong adapter can reduce impact efficiency.
5. Storage / Transport Considerations
   • Store the unit upright, not lying on its side, to avoid oil or grease leaking or damaging internal components.
   • Clean the driver after use, especially around the hammer/anvil, to remove dirt and debris, which helps with long-term maintenance.

How to Use It for Best Efficiency

Here are best practices to get the most efficient, effective use out of the GPD‑40:

• Align the Post Carefully: Before you start driving, make sure the post is upright and properly centered in the driver, misalignment can reduce driving efficiency and risk damage.
• Use Proper Adapter: Use the correct chuck adapter for your post — GPD‑40 supports a variety of adapters (like 2", 1¾", or 1″) to fit different post types.
• Apply Steady Pressure + Throttle: While driving, apply a consistent downward force and maintain throttle to engage the clutch and hammer. Let the driver do the work rather than forcing it.
• Pause to Inspect: After driving a few inches, pause and check that the post is still aligned. This prevents mis‑driving or bending.
• Wet the Ground If Needed: If soils are dry or very compact, lightly wet the area where you’re driving first; this helps soil compact around the post and improves driving performance.
• Take Breaks: For multiple posts, don’t run constantly, give short rests to allow the engine to cool and inspect for wear.
• After Use Maintenance: When you finish driving: inspect the hammer and anvil, clean off debris, re-grease internal parts if needed, and do a routine check of fasteners.
• Transport and Store Securely: Use the handle and vibration-dampening grips to carry it safely. Store upright, keep it clean, and make sure to maintain lubrication.

Summary

The Rhino GPD‑40 Fence Pro is a 37.8‑lb, gas-powered post driver with a Honda GX35 engine and a 2.50″ chuck, capable of delivering about 1,720 impacts per minute, and is best suited for light to medium soils (sandy, humus-rich, or soils with moderate clay/gravel), while very dense, rocky, or dry soils may require pre-wetting or a more powerful driver; common troubleshooting includes checking oil and air filter, inspecting and maintaining grease levels in the crankcase, ensuring fasteners remain tight due to vibration, servicing the hammer and anvil, and ensuring fuel system and venting are working properly, and for optimal efficiency you should align the post correctly, use the proper adapter, apply steady downward pressure with consistent throttle, pause to recheck alignment, wet the driving zone if needed, rest periodically, and perform maintenance (clean, grease, inspect) after use and store the driver upright to preserve its performance.
