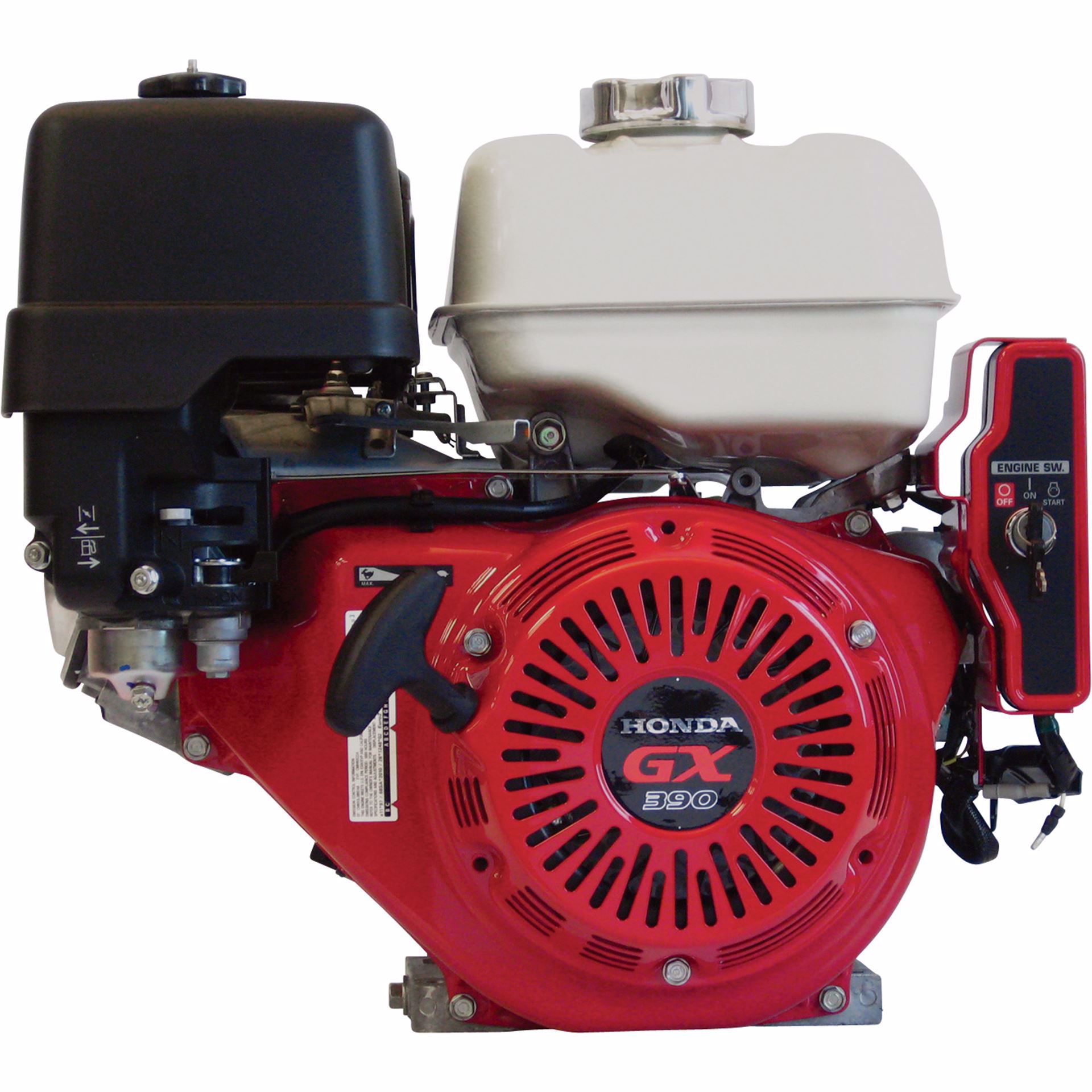

GX390 QAE2 Honda Electric Start OHV Engine - FREE SHIPPING

Name: GX390 QAE2 Honda Electric Start OHV Engine - FREE SHIPPING
SKU: 664930
Price: 995.00 USD
Availability: InStock

Manufacturer: Honda Engines

Be the first to review this product

390cc Honda Electric Start OHV Engine ***CANNOT SHIP TO CALIFORNIA*** Free Shipping Continental U.S. Only ***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***

SKU: 664930

Availability: 31 in stock

$995.00

Qty:

i h

Free shipping

Overview
Specifications
Reviews
Contact Us

GX390 QAE2 Honda Horizontal Electric Start OHV Engine - FREE SHIPPING CONTINENTAL U.S. ONLY

***CANNOT SHIP TO CALIFORNIA***

Honda GX390 QAE2 (GX390UT2QAE2) horizontal OHV engine is 390cc and puts out 11.7 net HP. This Honda GX has a 1" x 3-31/64" crankshaft. The engines has an electric starter, a 3-amp charging system with rectifier, a silent muffler with spark arrestor and deflector, plus an oil alert system. Honda GX390 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Common applications for this engine include water pumps, small vehicles, commercial lawn and garden equipment, generators and more

Features Include:

390cc, net 11.7HP
1" X 3 31/64" crankshaft
Electric & Recoil Start
3 amp charging system
Silent muffler with spark arrestor and deflector
Oil alert
49-State CARB compliant

***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***

Warranty	36 Months Private Residential; 36 Months Commercial,Rental,Institutional
Displacement Range	241cc - 390cc
Engine Brand	Honda
Crankshaft Diameter	1"
Crankshaft Length	3-31/64"
Crankshaft End Tapped Size	3/8-24
Crankshaft Keyway Width	1/4"
Air Cleaner Type	Dual Element
Throttle Control	Manual
Starter Type	Electric & Recoil
PTO Height	5-1/4
Max RPM	3600
Oil Cooler	No
Carburetor Type	Float
Valve Style	OHV
Recoil Starter Position	9:00 O'Clock
Bearing Type	Ball
Displacement	389cc
Ignition System	Digital CDI with Variable Timing
Lubrication System	Splash
Oil Capacity	38
Muffler	Yes
Fuel System	Gasoline
Governor System	Centrifugal Mass Type
Gear Reduction	No
Charging System	3

Choke Control	Manual
Cooling System	Air
Type	Small Engines
Fuel Pump	No
Auxiliary PTO	No
Compression Release	Yes
MFG Rated Output	11.7 Net HP
CPSC Compliant	No
Low Oil Shutdown	Yes
Low Oil Alert/Shutdown	No
Compression Ratio	8.2:1
Extended Recoil Rope	No
Oil Filter	No
Bolt Circle (in.)	5,6-1/2
Crankshaft Type	Straight
Oil Pump	No
Fuel Filter	Yes
Control Box	Yes
Cylinders (quantity)	1
Cylinder Bore Type	Cast Iron
Crankshaft Style	Horizontal
For Use in California	No
Crankshaft Rotation Direction (from PTO Shaft Side)	Counterclockwise
Fuel Tank Capacity	6.4
Color	Red

Products specifications

Product Type	Parts
Engine Brand	Honda®
