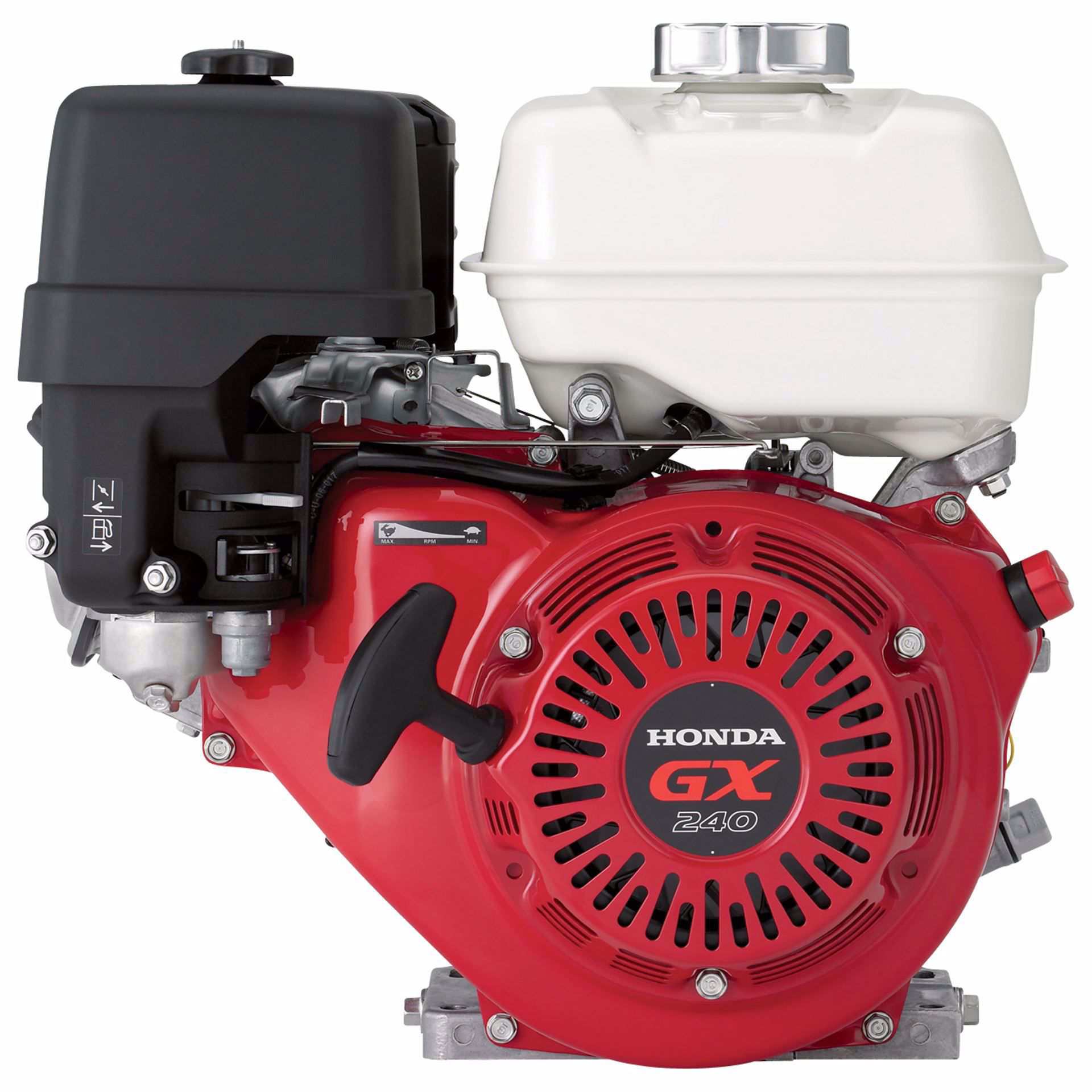

GX240 QA2 Honda OHV Engine - FREE SHIPPING

Manufacturer: Honda Engines
Be the first to review this product
270cc Honda OHV Engine NOT CARB COMPLIANT - CANNOT SHIP TO CALIFORNIA Free Shipping Continental U.S. Only ***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***
SKU: 664450
Availability: 11 in stock
$639.00
i h
Free shipping



GX240 QA2 Honda Horizontal OHV Engine - FREE SHIPPING CONTINENTAL U.S. ONLY

With the GX240, you’re looking at one of the best engines in the business. More power. Quieter performance. Lower fuel consumption. Lower emissions. Better features. Exceptional performance. Honda’s GX series lives up to the legend, and then some.

Honda GX240 HA2 (GX240UT2HA2) horizontal OHV 6:1 gear reduction engine is 270cc and puts out 7.9 net HP. This Honda GX has a 1" x 3.37" crankshaft. The engine has recoil start, a standard muffler with exhaust pipe protector and spark arrestor, and an oil alert system, but no clutch. Honda GX240 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Applications requiring lower speeds are ideal for gear reduction engines.



Features Include:

  • 240cc, net 7.9HP
  • 1" x 3 31/64" shaft, 1/4" keyway
  • Recoil Start
  • Standard muffler with spark arrestor, exhaust pipe protector and deflector
  • Oil alert
  • NOT CARB COMPLIANT, CANNOT SHIP IN TO CALIFORNIA

***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***


Warranty36 Months Private Residential; 36 Months Commercial,Rental,Institutional
Displacement Range241cc - 390cc
Engine BrandHonda OHV
Crankshaft Diameter1"
Crankshaft Length3-31/64"
Crankshaft End Tapped Size7/16-20
Crankshaft Keyway Width1/4"
Air Cleaner TypeDual Element
Throttle ControlManual, Remote (Rod)
Starter TypeRecoil
PTO Height5-1/4
Max RPM3600
Oil CoolerNo
Carburetor TypeFloat
Valve StyleOHV
Recoil Starter Position9:00 O'Clock
Displacement270cc
Ignition SystemDigital CDI with Variable Ignition Timing
Lubrication SystemSplash
Oil Capacity38
MufflerYes
Fuel SystemGasoline
Governor SystemCentrifugal Mass Type
Gear ReductionNo
Charging SystemNone
Choke ControlManual
Cooling SystemAir
TypeSmall Engines
Fuel PumpNo
Auxiliary PTONo
Compression ReleaseYes
MFG Rated Output7.9 Net HP
CPSC CompliantNo
Low Oil ShutdownYes
Low Oil Alert/ShutdownNo
Compression Ratio8.5:1
Extended Recoil RopeNo
Oil FilterNo
Bolt Circle (in.)5,6-1/2
Crankshaft TypeStraight
Oil PumpNo
Fuel FilterYes
Control BoxNo
Cylinders (quantity)1
Cylinder Bore TypeCast Iron
Bore x Stroke73 x 58 mm
Crankshaft StyleHorizontal
For Use in CaliforniaNo
Crankshaft Rotation Direction (from PTO Shaft Side)Counterclockwise
Fuel Tank Capacity5.6
ColorRed








Products specifications
Product TypeParts
Engine BrandHonda®
