GX390 QA2 Honda OHV Engine - FREE SHIPPING

Manufacturer: Honda Engines
Be the first to review this product
390cc Honda OHV Engine Free Shipping Continental U.S. Only ***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***
SKU: 664600
Availability: 31 in stock
$720.00
i h
Free shipping

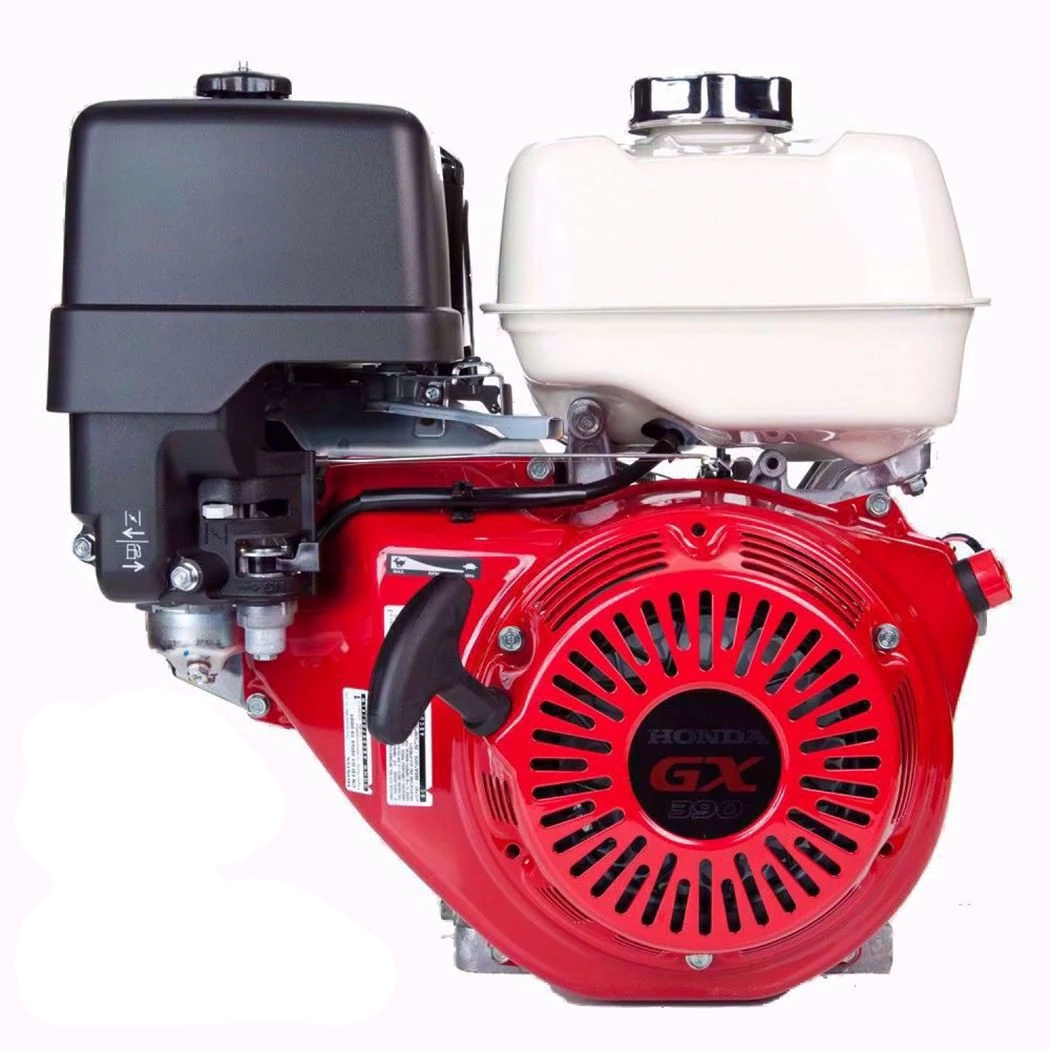

GX390 QA2 Honda Horizontal OHV Engine - FREE SHIPPING CONTINENTAL U.S. ONLY

Honda GX390 QA2 (GX390UT2QA2) horizontal OHV engine is 390cc and puts out 11.7 net HP. This Honda GX has a 1" x 3-31/64" crankshaft. The engine has a recoil starter, a silent muffler with a spark arrestor and deflector plus an oil alert system. Honda GX390 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Common applications for this engine include water pumps, small vehicles, commercial lawn and garden equipment, generators and more.

Features Include:

  • 390cc, net 11.7HP
  • 1" X 3 31/64" crankshaft, 1/4" keyway, tapped 3/8 - 24
  • Recoil Start
  • Silent muffler with spark arrestor & deflector
  • Oil alert
  • 49-State CARB compliant

***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***



Warranty36 Months Private Residential; 36 Months Commercial,Rental,Institutional
Displacement Range241cc - 390cc
Engine BrandHonda
Crankshaft Diameter1"
Crankshaft Length3-31/64"
Crankshaft End Tapped Size3/8-24
Crankshaft Keyway Width1/4"
Air Cleaner TypeDual Element
Throttle ControlManual, Remote (Rod)
Starter TypeRecoil
PTO Height5-1/4
Max RPM3600
Oil CoolerNo
Carburetor TypeFloat
Valve StyleOHV
Recoil Starter Position9:00 O'Clock
Displacement389cc
Ignition SystemDigital CDI with Variable Timing
Lubrication SystemSplash
Oil Capacity38
MufflerYes
Fuel SystemGasoline
Governor SystemCentrifugal Mass Type
Gear ReductionNo
Charging SystemNone
Choke ControlManual
Cooling SystemAir
TypeSmall Engines
Fuel PumpNo
Auxiliary PTONo
Compression ReleaseYes
MFG Rated Output11.7 Net HP
CPSC CompliantNo
Low Oil ShutdownYes
Low Oil Alert/ShutdownNo
Compression Ratio8.2:1
Extended Recoil RopeNo
Oil FilterNo
Bolt Circle (in.)5,6-1/2
Crankshaft TypeStraight
Oil PumpNo
Fuel FilterYes
Control BoxNo
Cylinders (quantity)1
Cylinder Bore TypeCast Iron
Bore x Stroke88 x 64 mm
Crankshaft StyleHorizontal
For Use in CaliforniaNo
Crankshaft Rotation Direction (from PTO Shaft Side)Counterclockwise
Fuel Tank Capacity6.4
ColorRed








Products specifications
Product TypeParts
Engine BrandHonda®
