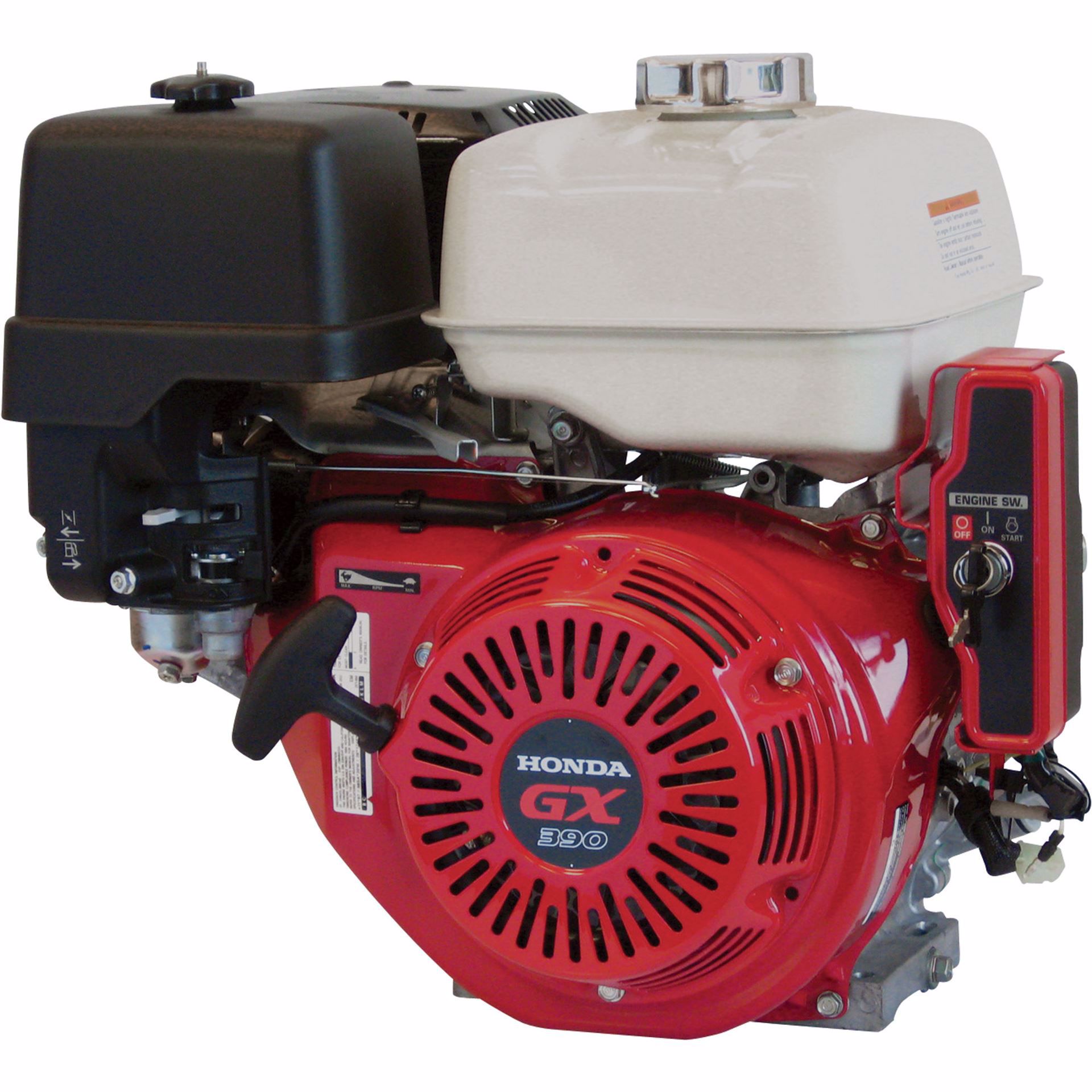

GX390 QNE2 Honda Electric Start OHV Engine - FREE SHIPPING

Manufacturer: Honda Engines
Be the first to review this product
390cc Honda Electric Start OHV Engine Free Shipping Continental U.S. Only ***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***
SKU: 664970
Availability: 29 in stock
$964.00
i h
Free shipping

GX390 QNE2 Honda Electric Start OHV Engine - FREE SHIPPING - CONTINENTAL U.S. ONLY

Honda GX390 QNE2 (GX390UT2QNE2) horizontal OHV engine is 390cc and puts out 11.7 net HP. This Honda GX has a 1" x 3-31/64" crankshaft with a 1/4" keyway (Tapped 3/8-24). The engine has electric and recoil start, a 10-amp charging system, a silent muffler with deflector, a fuel tank and an oil alert system. Honda GX390 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Common applications for this engine include water pumps, small vehicles, commercial lawn and garden equipment, generators and more.

Features Include:

  • 390cc, net 11.7HP
  • 1" X 3 31/64" crankshaft, 1/4" keyway, tapped 3/8 - 24
  • Electric & Recoil Start
  • 10 amp charging system
  • Includes fuel tank & muffler
  • Oil alert
  • 49-State CARB compliant

***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***



Manufacturer's Warranty3 year limited warranty
Ship Weight90.0 lbs
Engine Displacement (cc)389
Start TypeElectric w/recoil backup
ApplicationPressure washer, compressor
Engine TypeGX series OHV commercial-duty
Net Power Output (HP)11.7 (8.7 kW) at 3,600 RPM
Net Torque (lbs./ft.)19.5 (26.4 Nm) at 2,500 RPM
Shaft OutputHorizontal
CrankshaftQ-type
Shaft Diameter (in.)1
Shaft Length (in.)3 31/64
Shaft Keyway (in.)1/4
Shaft End Tapped (Diameter (in.)/Threads per inch)7/16-20
Shaft Rotation (From PTO Shaft Side)Counterclockwise
PTO Height (in.)5 1/4
Cylinders (qty.)1
Cylinder BoreCast iron
Bore x Stroke (in.)3.5 x 2.5
Compression Ratio8.2:1
Cooling SystemAir cooled
Air Cleaner TypeDual element
Fuel TankStandard (White)
Fuel TypeGasoline
Fuel Tank Capacity (qt.)6.4
Fuel FilterFuel tank filler neck strainer
Oil Capacity (qt.)1.16
Lubrication SystemForced splash
Low Oil AlertYes
Low Oil ShutdownYes
Ignition SystemElectronic
Governor SystemCentrifugal mechanical
CarburetorFloat, external vent
Throttle ControlRemote (wire)
Choke ControlManual
Max. RPM3,600
Charging System Amps10
Muffler IncludedSilent, exhaust pipe protector, deflector
Auto Compression ReleaseYes
Bolt Circle (in.)5, 6 1/2
Mounting Base L x W (in.)7 11/16 x 3 25/64–4 1/16
Dimensions L x W x H (in.)15 7/8 x 17 11/16 x 17 3/8
EPA/CARB Approval (California Air Resource Board)No
