    GX270 QA2 Honda OHV Engine - FREE SHIPPING

    Manufacturer: Honda Engines
    270cc Honda OHV Engine Free Shipping Continental U.S. Only ***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***
    SKU: 664500
    Availability: 4 in stock
    $605.00
    i h
    Free shipping

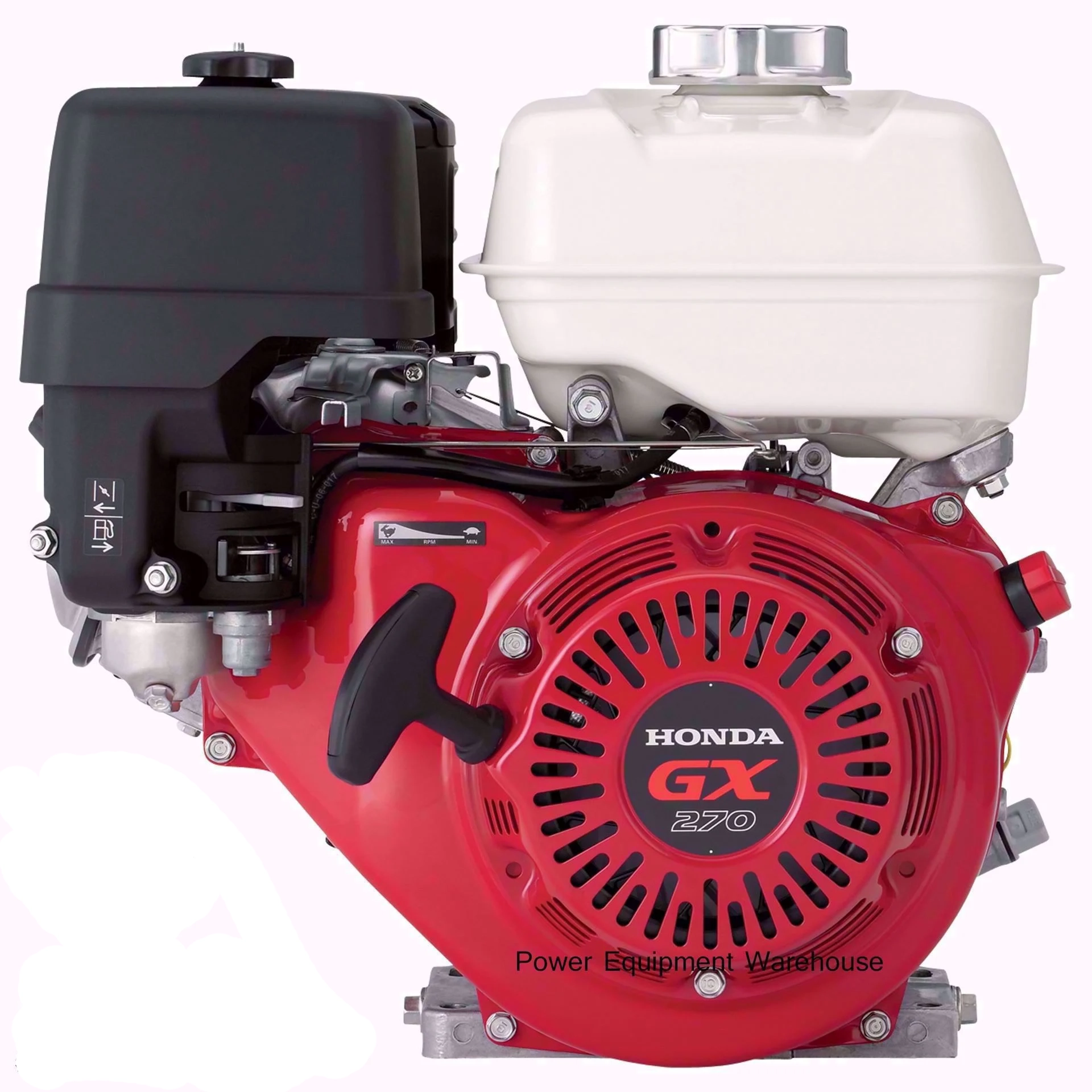

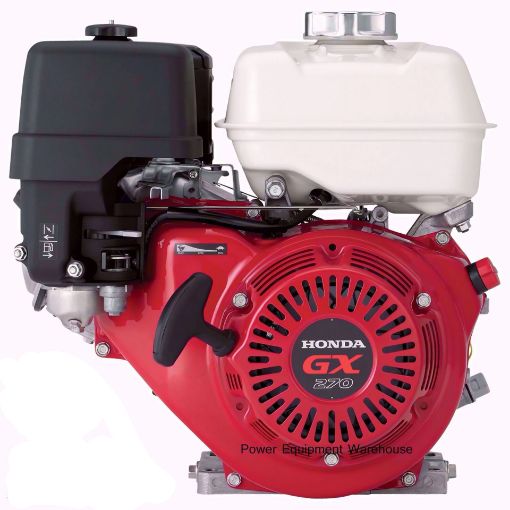

    GX270 QA2 Honda Horizontal OHV Engine - FREE SHIPPING

    Honda GX270 QA2 (GX270UT2QA2) horizontal OHV engine is 270cc and puts out 8.5 net HP. This Honda GX has a 1" x 3-31/64" crankshaft with a 1/4" keyway (Tapped 7/16-20). The engine has a recoil starter, a standard muffler with spark arrestor and deflector plus an oil alert system. Honda GX270 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Common applications for this engine include water pumps, small vehicles, commercial lawn and garden equipment, generators and more.

    Features Include:

    • 270cc, net 8.5HP
    • 1" x 3 31/64" shaft, tapped 7/16-20, 1/4" keyway
    • Recoil Start
    • Oil alert
    • 49-State CARB compliant

    ***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***

    Warranty3 year limited warranty
    Ship Weight65.0 lbs
    Engine Displacement (cc)270
    Start TypeRecoil
    ApplicationChipper, shredder, log splitter, compressor
    Engine TypeGX series OHV commercial-duty
    Net Power Output (HP)8.5 (6.3 kW) at 3,600 RPM
    Net Torque (lbs./ft.)14.1 (19.1 Nm) at 2,500 RPM
    Shaft OutputHorizontal
    CrankshaftQ-type
    Shaft Diameter (in.)1
    Shaft Length (in.)3 31/64
    Shaft End Tapped (Diameter (in.)/Threads per inch)3/8–24
    Shaft Rotation (From PTO Shaft Side)Counterclockwise
    PTO Height (in.)5 1/4
    Cylinders (qty.)1
    Cylinder BoreCast iron
    Bore x Stroke (in.)3.0 x 2.3
    Compression Ratio8.5:1
    Cooling SystemAir cooled
    Air Cleaner TypeDual element
    Fuel TypeGasoline
    Fuel Tank Capacity (qt.)5.6
    Fuel FilterFuel tank filler neck strainer
    Oil Capacity (qt.)1.16
    Lubrication SystemForced splash
    Low Oil AlertYes
    Ignition SystemElectronic
    Governor SystemCentrifugal mechanical
    CarburetorFloat, external vent
    Throttle ControlRemote (wire)
    Choke ControlManual
    Max. RPM3,600
    Bolt Circle (in.)5, 6 1/2
    Mounting Base L x W (in.)7 11/16 x 3 3/16–3 11/16
    Dimensions L x W x H (in.)15 x 16 7/8 x 16 1/8
    EPA/CARB Approval (California Air Resource Board)No

    Products specifications
    Product TypeParts
    Engine BrandHonda®
