GX200 QX2 Honda OHV Engine - FREE SHIPPING

Manufacturer: Honda Engines
Be the first to review this product
200cc Honda OHV Engine Free Shipping Continental U.S. Only ***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***
SKU: 667980
Availability: In stock
$407.00
i h
Free shipping

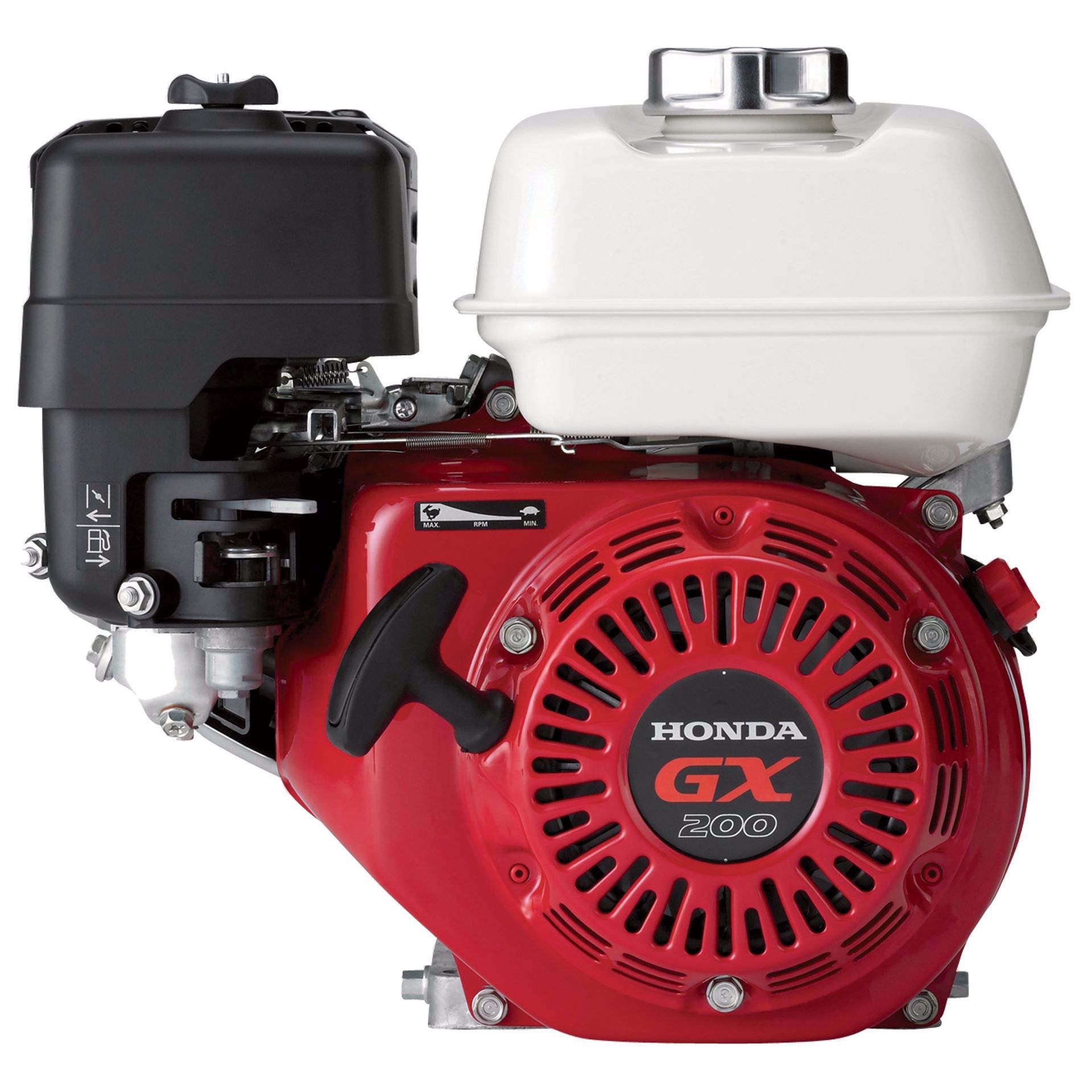

GX200 QX2 Honda Horizontal OHV Engine - FREE SHIPPING CONTINENTAL U.S. ONLY

Honda GX200 QX2 (GX200UT2QX2) horizontal OHV engine is 200cc and puts out 5.5 net HP. This Honda GX has a 3/4" x 2-7/16" crankshaft. The engine has a recoil starter and includes a standard muffler and oil alert system. Honda GX200 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Common applications for this engine include water pumps, small vehicles, commercial lawn and garden equipment, generators and more.

Features Include:

  • 200cc, net 5.5HP
  • 3/4" x 2-7/16" crank
  • Recoil Start
  • Standard muffler
  • Oil alert
  • 49-State CARB compliant

Warranty36 Months Private Residential; 36 Months Commercial,Rental,Institutional
Displacement Range121cc - 240cc
Engine BrandHonda
Crankshaft Diameter3/4"
Crankshaft Length2-27/64"
Crankshaft End Tapped Size5/16-24
Crankshaft Keyway Width3/16"
Air Cleaner TypeDual Element Silent
Throttle ControlManual, Remote (Rod)
Starter TypeRecoil
PTO Height4-11/64
Max RPM3600
Oil CoolerNo
Carburetor TypeFloat
Valve StyleOHV
Recoil Starter Position9:00 O'Clock
Displacement196cc
Ignition SystemTransistorized Magneto
Lubrication SystemSplash
Oil Capacity20
MufflerYes
Fuel SystemGasoline
Governor SystemMechanical
Gear ReductionNo
Charging SystemNone
Choke ControlManual
Cooling SystemAir
TypeSmall Engines
Fuel PumpNo
Auxiliary PTONo
Compression ReleaseYes
MFG Rated Output5.5 Net HP
CPSC CompliantNo
Low Oil ShutdownYes
Low Oil Alert/ShutdownNo
Compression Ratio8.5:1
Extended Recoil RopeNo
Oil FilterNo
Bolt Circle (in.)3-5/8
Crankshaft TypeStraight
Oil PumpNo
Fuel FilterYes
Control BoxNo
Cylinders (quantity)1
Cylinder Bore TypeCast Iron
Bore x Stroke68 x 54 mm
Crankshaft StyleHorizontal
For Use in CaliforniaNo
Crankshaft Rotation Direction (from PTO Shaft Side)Counterclockwise
ColorRed
