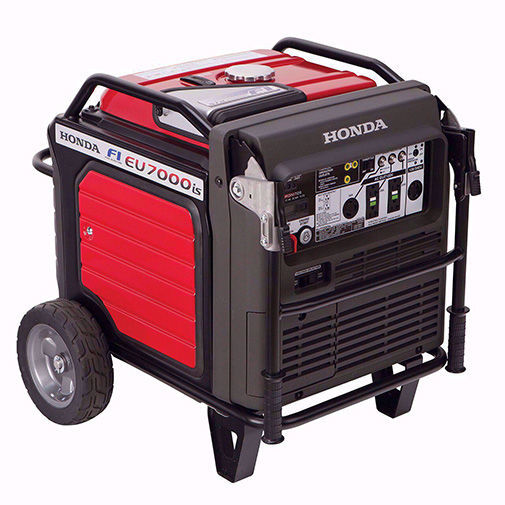

Honda EU7000iAG

Honda EU7000iAG

The Honda EU7000iAG is a high-capacity, ultra-quiet inverter generator that delivers 7,000 watts of surge power and 5,500 watts of continuous output, powered by Honda’s fuel-injected GX390 EFI engine and equipped with Eco-Throttle to improve fuel efficiency by automatically adjusting engine speed to match load, allowing run times of about 6.4 hours at rated load and up to 16 hours at quarter load; it also operates at a remarkably low noise level of about 52–58 dB(A) depending on load, making it one of the quietest in its class. The generator uses a 5.1-gallon fuel tank, features CO-MINDER carbon-monoxide protection, electric start with recoil backup, Bluetooth connectivity through the Honda My Generator app for remote monitoring, and multiple 120/240V outlet options including 20A GFCI duplexes and 30A locking plugs. Common troubleshooting begins with checking overload conditions if the red alarm illuminates, reducing load or staggering motor-driven appliances that cause heavy startup surges; sudden shutdowns often trace back to the Oil Alert system detecting low oil, requiring the generator to be level and properly filled before restarting; and starting issues may result from weak battery connections, stale fuel, or EFI-related sensor faults such as the E-56 fuel-sender error some users have reported and resolved by replacing the sender unit. For best efficiency, operate the EU7000iAG at a moderate load (roughly 40–70% of capacity), keep Eco-Throttle enabled for fuel savings, use only clean fresh gasoline especially important for EFI systems and stagger the startup of large appliances so the inverter doesn’t experience sudden load spikes. Regular maintenance such as oil and filter changes, spark-plug inspection, and keeping the spark arrestor clean extends engine life, while letting the generator run at light load for a couple of minutes before shutdown helps internal components cool evenly. Always place the generator outdoors with ample airflow to prevent CO-MINDER shutdowns and ensure safe operation. With proper care, load management, and safe placement, the EU7000iAG provides clean, stable, long-duration power suitable for home backup, RV use, and sensitive electronics.

Wattage Capabilities / Key Specs

• The EU7000iAG is rated for 7,000 watts maximum output (surge) and about 5,500 watts of rated (continuous) power.
• Voltage: 120/240 V, giving flexibility to power both types of loads.
• Engine: Honda GX390 EFI, 389 cc displacement.
• Fuel: Has a 5.1-gallon fuel tank.
• Run Time: ~6.4 hours at full rated load; up to ~16 hours at quarter load.
• Noise Level: Very quiet for its size -~58 dB(A) at rated load, ~52 dB(A) at ¼ load.
• Start System: Electric push-button start, plus recoil (pull-start) backup.
• Safety / Monitoring:
  • CO-MINDER™ system monitors carbon monoxide and can shut the unit down if CO levels become unsafe.
  • Oil Alert: Shuts down the engine to protect it if oil is too low.
  • Eco-Throttle: Helps improve fuel efficiency by adjusting engine speed to match load.
• Connectivity: Has Bluetooth via the Honda My Generator app, so you can monitor status (fuel, hours, maintenance) and remotely start/stop.
• Outlets: Includes two 20A 125V GFCI duplex, one 30A 125V locking plug, and one 30A 125/250V locking plug.
• Weight: Around 260+ lbs. (very heavy, given large capacity + EFI).

Common Troubleshooting Tips

Here are typical problems people run into, and how to troubleshoot them:

1. Overload / Overcurrent Issues
   • If the red “OVERLOAD ALARM” indicator lights up (or trips), it likely means you’re drawing too much power or there’s a short in one of the connected devices.
   • To fix: reduce load, unplug some devices, or stagger the start of heavy appliances. Be especially careful with motors (e.g., HVAC, pumps) since their startup surge is high.
2. Low Oil / Oil Alert Shutdown
   • If the oil is too low, the Oil Alert system will trigger and shut the engine off.
   • Check oil level before use (make sure the generator is level), fill to the correct specification, then reset the alert by switching the MAIN switch off and on again.
   • Use the correct oil type (as directed by Honda) and stick to a regular change schedule to avoid this.
3. Starting Problems
   • Battery / electric start: If the generator won’t start via the button, check the battery charge, connections, and ensure the starter is functional.
   • Recoil (pull start) backup: Make sure the pull cord assembly is in good shape (cord not frayed, handle intact).
   • Fuel issues: Since it’s fuel-injected (EFI), bad or contaminated fuel can still cause problems. If it sits unused, consider draining or cycling the fuel.
   • Injector or EFI issue: Some users report trouble with fuel sensor or EFI system; for example, an E-56 error code has been reported, which in some cases is related to a faulty fuel sensor in the pump.
4. Voltage or Power Instability
   • Even though it’s an inverter generator, large or sudden load changes (especially motor loads) can cause fluctuations.
   • Balance your load between 120V and 240V outlets when possible.
   • If instability continues, consider limiting or restructuring how you plug into it, or have a technician look at the control board or inverter module.
5. Carbon Monoxide (CO) Concerns / Shutdowns
   • Because of CO-MINDER, if CO builds up dangerously, the generator could shut down.
   • Always run this generator in a well-ventilated, outdoor location. Keep it away from windows, doors, or vents of buildings.
   • Make sure exhaust is directed away from people and structures.
6. Maintenance / Sensor Errors
   • Some users report that sensor faults (fuel-level sensor, etc.) can trigger error codes; make sure to check fuel pump or sensor connections.
   • Keep up with maintenance: oil changes, spark plug inspection, cleaning any filters, and checking for EFI system warnings in your app.

Tips for Best Efficiency & Use

To get the most out of the EU7000iAG and run it efficiently:

• Run at Moderate Load: Avoid running at full surge all the time. Try to operate at a portion of the generator’s capacity (if you can) this helps with fuel efficiency, reduces stress, and prolongs engine life.
• Use Eco-Throttle: Let the Eco-Throttle system adjust engine speed based on actual power demand. This saves fuel when your load is lighter.
• Stagger Startup of Heavy Loads: When turning on high-draw devices (motors, HVAC, compressors), bring them on one at a time, give the generator a moment to stabilize, then turn on the next one.
• Use Fresh, Clean Fuel: Since this model uses EFI, using clean gasoline is very important. If you’re storing the generator or fuel, use a stabilizer to reduce gumming or fuel system problems.
• Regular Maintenance:
  • Change the oil at recommended intervals.
  • Check and clean/replace the air filter.
  • Inspect the spark plug and replace if dirty or worn.
  • Make sure the exhaust and muffler are clear (spark arrestor, if equipped).
• Cool-Down: After running under a heavy load, allow the generator to continue running for a minute or two under a lighter load before shutting it off, to help let internal components cool more gently and avoid thermal shock.
• Use the App: Use the Honda My Generator app to monitor your generator via Bluetooth. You can get maintenance reminders, check hours run, monitor fuel level, and even start/stop remotely.
• Safe Placement: Always operate the generator on a level, stable surface with adequate clearance for ventilation. This ensures safe operation and proper oil lubrication.

Real-World Use Scenarios

Because of its power and inverter design, the EU7000iAG is great for:

• Home backup during power outages (running critical circuits like fridge, lights, sump pump, etc.)
• RV use (especially with 240V-capable appliances)
• Events or job sites where “clean” inverter power is needed for tools, electronics, or sensitive devices
• Long-duration use: with a 5.1-gal tank and its Eco-Throttle, you can stretch runtime significantly at lower loads
