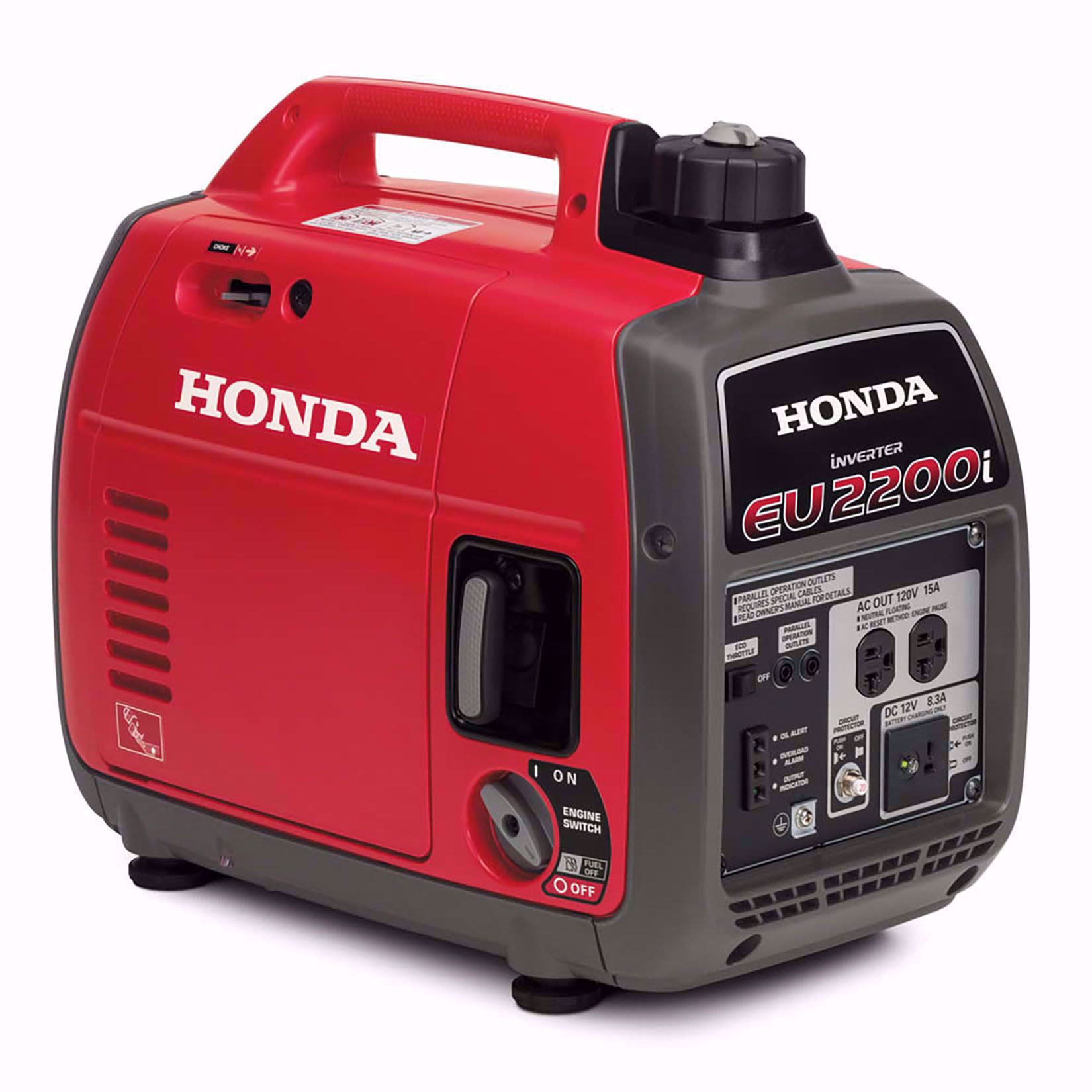

Honda EU2200ITAG (EU2200i)

Honda EU2200ITAG (EU2200i)

The Honda EU2200ITAG (EU2200i) is a quiet, fuel-efficient inverter generator that produces 2,200 watts of peak power and 1,800 watts of continuous output, making it ideal for camping, tailgating, job-site tool use, or home backup for small appliances and sensitive electronics. Powered by Honda’s reliable 121 cc GXR120 engine and equipped with CO-MINDER carbon-monoxide monitoring, Oil Alert low-oil shutdown, and a clean 120-volt inverter output, it delivers steady power while remaining lightweight and easy to transport. For simple troubleshooting, always start with the basics: ensure you’re using fresh gasoline, check oil level if the generator won’t start or shuts off suddenly, clean or replace the air filter if the engine seems suffocated, and inspect the spark plug if starting becomes difficult. Most stalling or surging problems come from stale fuel or a dirty carburetor, so draining old fuel and cleaning the carb jets usually restores smooth operation; if it shuts off unexpectedly, the cause is often overload protection, CO-MINDER activation due to poor ventilation, or an issue with the fuel cap vent. To use the EU2200ITAG for maximum efficiency, keep your load comfortably under the 1,800-watt continuous rating, turn on Eco-Throttle whenever you’re not running heavy equipment so the engine can automatically slow down and save fuel, and let the machine warm up for a minute before plugging in appliances. Store it properly by shutting off the fuel valve and letting the carburetor run dry, change the oil at recommended intervals, keep the air filter clean, and run the generator periodically to prevent varnish buildup in the carb. When used with balanced loads, kept clean, and maintained regularly, the EU2200ITAG provides long runtimes, excellent fuel economy, and dependable portable power for years.

Wattage Capabilities & Specs

• The EU2200i delivers 2,200 watts peak (surge) and 1,800 watts continuous/rated output.
• Output is 120 V AC from a 20A 125V duplex outlet.
• Engine: Honda GXR120, 121 cc.
• Fuel tank capacity: 0.95 gallons, which gives:
  • ~3.2 hours run time at rated load.
  • Up to 8.1 hours at very light load (¼ load) thanks to Eco-Throttle.
• Noise level: about 57 dB(A) at rated load, 48 dB(A) at ¼ load.
• Weight: ~47.4 lb (dry).
• Safety / Protection Features:
  • Oil Alert: engine shuts off if oil level is too low.
  • CO-MINDER: sensor detects dangerous carbon monoxide and will shut it down.
• Parallel Capability: You can connect a second EU2200i (with the optional parallel cable) to double output (up to ~4,400 W).

Easy Troubleshooting Tips

Here are common problems users run into with the EU2200i / EU2200ITAG and how to fix or diagnose them:

1. Generator Won’t Run or Starts Poorly
   • Fuel Issues: Use clean, fresh gas. Old or degraded fuel (especially with ethanol) can cause stalling or poor performance. Several users on Reddit report issues that resolved when bad gas was drained and fresh fuel used.
   • Oil Level: Low oil will trigger the Oil Alert and shut the engine down; check and top up oil.
   • Air Filter: A dirty or clogged air filter will choke the engine; clean or replace it.
   • Spark Plug: Inspect the plug; if it’s fouled or worn, swap it out.
   • Carburetor: If fuel delivery seems bad (sputtering or dying under load), the carb could be dirty; jets may need cleaning.
2. Generator Dies After Running for a While
   • CO-MINDER Shutoff: If the generator is in a poorly ventilated or enclosed space, the CO-MINDER may detect high CO levels and shut it off. Move to a more open area.
   • Overload Protection: If you’re drawing more than its rated capacity, the circuit breaker or overload protection can trip; reduce load.
   • Fuel Starvation or Vent Blockage: Some users report that venting issues in the fuel cap or carb flooding (especially after storage) can cause shutdowns.
   • Ignition or Sensor Malfunctions: In a few reports, problems with the oil sensor or wiring have caused shutdowns or false shutdown signals.
3. Variable or Unstable Power Output
   • Load Variability: Because this is an inverter, the engine speed can change depending on load, especially in Eco mode, this can make power feel “variable.” One user noted that their load (e.g. battery charger) was pulling more amps than the generator was rated for, causing instability.
   • Parallel Cable Issues (if using two units): Make sure the parallel cord is properly connected before applying a load; both generators should be running.
4. Surging or RPM Fluctuation
   • This can happen if the generator is under a light or inconsistent load in Eco-Throttle mode. Trying to run a load that is near threshold can cause the engine to surge.
   • In cold conditions, condensation can cause issues with the breather tube, leading to “surging and eventual shutoff.”

How to Use It for Best Efficiency

To get the most from your EU2200ITAG: maximizing runtime, protecting the unit, and running smoothly; here are best practices:

• Use Eco-Throttle Mode Whenever Practical: This feature adjusts the engine RPM to match the load, saving fuel and reducing noise when you’re not drawing full power.
• Size Your Load Wisely: Try to keep your total draw under the 1,800W rated capacity. If you plan to run high-draw devices (tools, heaters, large appliances), make sure you’re not constantly near the peak rating that reduces efficiency and can strain the generator.
• Use the Fuel “Off” Setting for Storage: Flip the fuel valve to “Off” when done, then let the unit run until the carb is mostly empty, this helps avoid stale fuel buildup in the carburetor.
• Maintain Regularly: Change the oil per Honda’s schedule, check/clean the air filter, and inspect the spark plug. Also, inspect the muffler/spark arrester periodically.
• Run Periodically: If you’re storing the generator, run it every few weeks under a moderate load to keep the engine “fresh” and prevent carb issues.
• Ensure Proper Ventilation: Always run it outdoors or in a very well-ventilated area to prevent CO buildup (and shutoffs via CO-MINDER).
• Warm-Up & Cool-Down Routine: Let the engine run without load for a minute after starting (warm-up), and before shutting it off, run a light load or no load for a bit so the engine stabilizes (cool-down). This promotes longevity and helps prevent stress on internal parts.
• Use the Remote Monitoring App (if Applicable): Some EU2200i models have Bluetooth / My Generator app support, letting you monitor runtime, load, and alerts more conveniently.

Summary

The Honda EU2200ITAG is a compact, quiet, and efficient inverter generator that produces up to 2,200W surge and 1,800W continuous, making it excellent for camping, tailgating, small tool usage, and backup power for sensitive electronics. It runs for 3.2 hours at full load or up to 8.1 hours at light load on its 0.95-gallon tank and features both Oil Alert and CO-MINDER for safety. Common issues like starting trouble, stalling, or shutoffs usually come down to fuel quality, oil level, or sensor wiring; cleaning the carb, checking the sensor, or using fresh gas often solves them. For efficient operation, use Eco-Throttle mode, size your load carefully, run and store it properly, and do regular maintenance. With good care, this generator delivers reliable, clean power in a very portable package.
