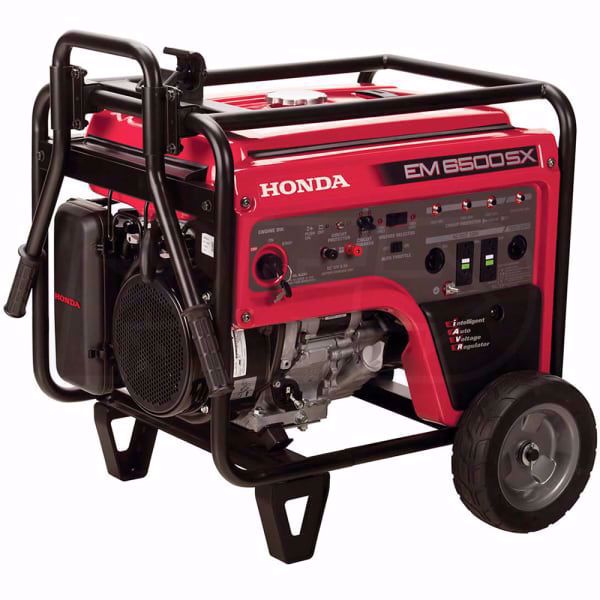

Honda EM6500X2AG

Honda EM6500X2AG

The Honda EM6500X2AG is a strong and dependable 6,500-watt class generator that delivers 6,500 watts of surge power and 5,500 watts of continuous output, powered by the proven Honda iGX390 engine and stabilized by Honda’s iAVR system, which not only keeps voltage steady but also provides a short 7,000-watt boost to help start large appliances or motor-driven tools. To keep it running smoothly, basic troubleshooting usually starts with checking for overloads if breakers trip or power drops, confirming the oil level when the Oil Alert system shuts the engine down, and making sure fuel is fresh if the generator becomes hard to start. Many no-start problems come from stale gasoline, a dirty carburetor, a fouled spark plug, or weak battery connections on the electric-start system, while voltage fluctuations often point to uneven or excessive load on the 120/240V circuits. For the best efficiency, it helps to run the generator at a moderate load; ideally around half to two-thirds of its capacity, rather than pushing it at maximum output continuously, and to stagger the startup of heavy appliances so they don’t all surge at once. Regular maintenance, such as oil changes, air-filter cleaning, spark-plug inspections, and clearing the spark arrestor, is essential for long-term reliability; using fresh fuel and a stabilizer prevents gumming and keeps the carburetor clean; and allowing a couple minutes of light-load cool-down before shutting off the engine extends its life. Always run the EM6500X2AG outdoors with plenty of ventilation so the CO-MINDER system doesn’t detect carbon monoxide buildup, and position it on stable, level ground to maintain proper lubrication and airflow. With thoughtful load management, routine upkeep, and safe operation, this generator delivers efficient, steady power for emergencies, job sites, or household backup.

Wattage Capabilities / Specs

• The surge (starting) output is 6,500 watts, and the continuous (rated) output is 5,500 watts.
• It’s a 120/240 V generator, allowing flexibility for different voltage loads.
• It’s powered by a Honda iGX390 engine (389 cc).
• It has an iAVR (Intelligent Automatic Voltage Regulator), which stabilizes voltage and enables a temporary boost to 7,000 watts for up to 10 seconds to start high-draw devices.
• Fuel tank capacity is 6.2 gallons.
• Run time: about 10.4 hours at 50% load, and around 6.9 hours at full rated load, according to one spec sheet.
• Noise: rated at 64-66 dB(A) depending on load.
• Starting: Electric start (with battery), plus a recoil (pull-cord) backup.
• Outlets: Includes two 20 A 125 V GFCI duplex outlets, a 30 A 125 V locking plug, and a 30 A 125/250 V locking plug.
• DC Output: There is a 12 V DC terminal with ~100 W (8.3 A) capacity.
• Safety: Features CO-MINDER for carbon monoxide detection.
• Other: It has a 120/240 V selector switch, letting you choose between “120 V only” or “120/240 V” mode.

Common Troubleshooting Tips

1. Overload / Circuit Breaker Trips
   • If the generator shuts off or a breaker trips, you may be drawing more power than it can handle. High-startup devices (motors, pumps) can be especially demanding.
   • Use the 120/240 V selector wisely: distributing load appropriately between the 120V and 240V outlets can help avoid overloading.
   • Try to stagger the startup of heavy-draw devices to minimize surge stress.
2. Low Oil / Oil Alert Shutdown
   • The Oil Alert system will shut down the engine if the oil level drops too low.
   • Always check the oil level before using, especially if the generator was stored or transported. Make sure the unit is on level ground when checking.
   • Use the proper oil grade as recommended by Honda and change it at the intervals specified in the manual.
3. Hard or No Start
   • Battery: If electric start doesn’t work, check battery condition and connections.
   • Recoil: Make sure the pull-start mechanism (cord, handle, spring) is in good shape.
   • Fuel: Stale or dirty gasoline can cause starting problems. Drain old fuel if necessary and refill with fresh, clean gas.
   • Spark Plug: Inspect, clean, or replace if fouled or worn.
   • Air & Exhaust: Make sure the air intake is clean and that the muffler / spark arrestor is not clogged.
4. Voltage Fluctuations or Unstable Power
   • Even with the iAVR, large or sudden load changes (especially from motors) may cause dips or spikes in voltage.
   • Verify that loads are balanced across the 120V and 240V circuits.
   • If instability persists, limit how many heavy devices are running at once, or have a qualified technician inspect the generator’s AVR or internal wiring.
5. Carbon Monoxide (CO) Issues / CO-MINDER Shutdown
   • If the CO-MINDER system triggers, it means CO levels around the generator are unsafe. Always operate the generator outdoors in a well-ventilated area.
   • Position the generator so that exhaust is blown away from people, occupied buildings, or windows.
   • Don’t run the generator in enclosed or semi-enclosed spaces.

Tips to Use It for Best Efficiency

• Run at a Moderate Load: For fuel efficiency and generator longevity, avoid running it at full capacity all the time. Keeping load around 40-70% of its rated power is usually a sweet spot.
• Stagger High-Demand Starts: When starting heavy appliances (like compressors, well pumps, or HVAC), don’t turn them all on at once — bring them online one at a time after the generator is running and stable.
• Manage Fuel Wisely: Use fresh gasoline, and if you're storing fuel for emergency use, add a fuel stabilizer to prevent degradation.
• Regular Maintenance:
  • Change the oil on schedule.
  • Clean or replace the air filter regularly.
  • Check the spark plug and clean or replace as needed.
  • Inspect and clean the muffler/spark arrestor to ensure good airflow.
• Cooling / Idle Management: After a heavy run or when using the generator for less demanding tasks, let it run for a few minutes under lighter load before shutting down, this helps the engine cool more evenly.
• Use the 120/240V Selector Smartly: Depending on what devices you need to power, switch between “120V Only” and “120/240V” mode to balance your load and use the generator’s capacity more effectively.
• Placement: Always put the generator on a level, stable surface. Make sure there is good clearance for airflow and for exhaust to safely vent away from structures or people.
• Use Monitoring Tools: If your model supports the Honda My Generator App (Bluetooth), you can use it to remotely start/stop the generator, monitor its operating status, and track maintenance reminders (this feature is noted for this model).
• Pre-run Checks: Before running the generator (especially for long or critical-use sessions), do a quick check: oil level, fuel level, all connections, and filter condition. Catching small issues early helps avoid bigger problems.
