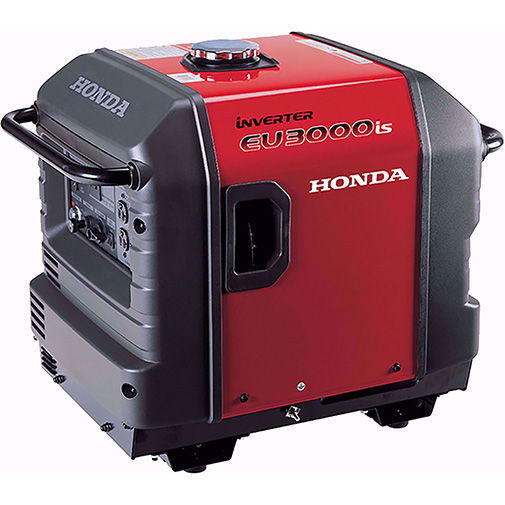

Honda EU3000S1AG

Honda EU3000S1AG

The Honda EU3000S1AG is a quiet, fuel-efficient 3,000-watt inverter generator that delivers 3,000 watts of surge power and 2,800 watts of continuous running power, making it ideal for home backup, RV use, and sensitive electronics thanks to its clean inverter output. Powered by a Honda GX200 engine, it features Eco-Throttle, which automatically adjusts engine speed to match the load, greatly improving fuel efficiency and extending run time up to nearly 20 hours at light load. To keep it running reliably, routine maintenance is essential; use fresh gasoline, clean or replace the air filter, check the spark plug, and make sure the exhaust spark arrestor isn’t clogged. Common troubleshooting steps start with the basics: if it won’t start or runs rough, check for stale fuel, a dirty carburetor, or improper choke position; if it shuts off unexpectedly, the Oil Alert or CO-MINDER safety systems may be triggered, so verify the oil level and make sure the generator is operated only outdoors in full ventilation. For best efficiency, always run it in Eco-Throttle mode unless using high-demand appliances, avoid overloading or starting multiple heavy loads at once, and place the generator on level ground with good airflow. With proper care, smart load management, and safe operation, the EU3000S1AG provides long-lasting, efficient, and extremely quiet power whenever you need it.

Wattage Capabilities / Specs

• The EU3000S1AG delivers up to 3,000 watts (surge) and 2,800 watts (rated) at 120 V.
• It runs on a Honda GX200 engine (196 cc).
• Fuel tank capacity is 3.4 gallons.
• Run time: ~6.9 hours at full rated load, up to ~19.6 hours at ¼ load.
• Noise level: very quiet for a generator ; ~57 dB(A) at full load, ~50 dB(A) at lighter load.
• Outlets: 20A duplex (125 V), and a 30A locking plug.
• Features:
  • Eco-Throttle: the engine speed adjusts to match load, improving fuel efficiency.
  • CO-MINDER system: detects carbon monoxide and shuts down the generator if levels become unsafe.
  • Oil Alert: shuts engine down if oil is too low.
  • Parallel capability: you can connect two identical units to double power.

Common Troubleshooting Tips

Here are some typical issues and how to address them:

1. Engine Pulsing / “Hiccuping” at Low Load
   • Some users report light pulsing or surging when the generator is under very light load.
   • One fix: adjust the choke; partially opening the choke (not all the way) has helped some people stop the surging.
   • Also check air flow: on some EU3000iS units, if the battery door cover is missing or its gasket is damaged, airflow gets changed and can cause instability.
2. Low Oil Shutdown
   • The Oil Alert system will shut the engine off if oil is too low.
   • If oil level is fine but it still shuts off, the low-oil-level sensor may be faulty.
   • Make sure oil is at the correct level — not too low, and check when the unit is level. Use the dipstick spec from the manual.
3. Hard or Rough Starting / Stalling
   • Dirty or gummed-up carburetor: Many of the problems are carb-related, especially after sitting idle. Clean the carb jets, check float, and inspect pilot jets.
   • Misadjusted choke: As above, setting the choke too far in or out can disrupt how the engine idles or starts.
   • Spark plug: Check the condition and gap (the manual recommends a gap of ~0.028–0.031 in / 0.7–0.8 mm).
   • Fuel issues: If fuel is old, or there is water or sediment in the tank, you may get erratic running. Use clean fuel or clean the tank and filters if needed.
   • Exhaust / airflow: Make sure spark arrestor is not clogged and air intake is clean.
4. Carbon Monoxide Shut-Down
   • If the CO-MINDER system triggers a shutdown, it means CO levels are too high. Always operate the generator in a well-ventilated, open area. Don’t run it in enclosed spaces or too close to windows or vents.

Tips to Use for Best Efficiency

To maximize efficiency, longevity, and safety:

• Run in Eco-Throttle Mode: Let the Eco-Throttle system adjust engine speed to the actual load. This saves a ton of fuel, especially when loads fluctuate.
• Manage Load Properly: Try to operate appliances so you don’t max out the generator all the time. Also, stagger starting big loads (like an air conditioner) so you don’t deal with huge surges.
• Use Fresh, Stabilized Fuel: Always use clean, fresh gasoline. If storing fuel for backup use, treat it with a fuel stabilizer. Old or contaminated fuel can gum up the carburetor and reduce efficiency.
• Maintain the Generator Regularly: Change the oil per Honda's schedule. Clean or replace the air filter. Inspect and clean the spark arrestor. Clean the carburetor if needed.
• Cool-Down Time: After heavy use, let the generator run on a moderate or light load for a minute or two before shutting down. This helps the engine cool more evenly.
• Parallel When Needed: If you need more power than a single unit can supply, use a matched second EU3000iS in parallel rather than running the one unit at or over capacity.
• Proper Placement: Always put the generator on level, stable ground. Use a safe, well-ventilated area to avoid CO build-up, and keep it away from windows or enclosed spaces.
• Exercise the Generator: If it's a backup unit and doesn't run often, run it periodically (with a load) to keep fuel flowing, prevent stale gas, and ensure it’s ready when needed.
