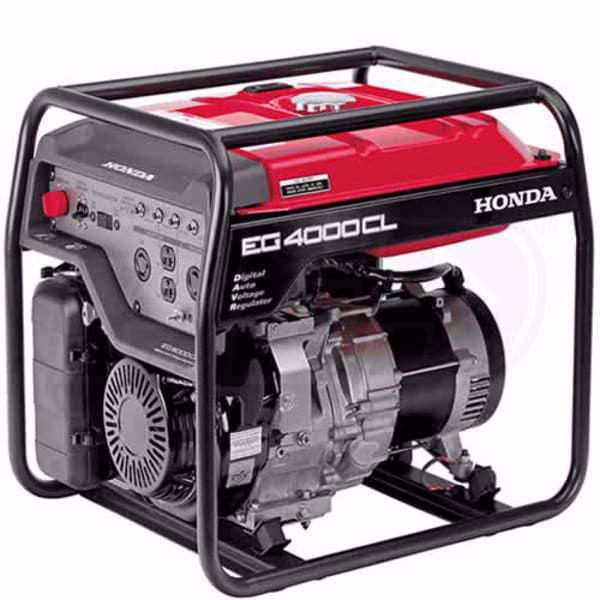

Honda EG4000CLAG

Honda EG4000CLAG

The Honda EG4000CLAG is a dependable mid-size generator designed to deliver about 4,000 watts of surge power and 3,500 watts of continuous power, making it suitable for home backup, job sites, and light industrial use. It runs on the durable Honda GX270 engine and features a DAVR (Digital Automatic Voltage Regulator) system, which helps keep voltage stable even when loads fluctuate. To get the best performance and efficiency from it, you should manage your power usage by running the generator at around half load whenever possible, avoid turning on all heavy appliances at once, and always use fresh fuel to maintain smooth engine operation. For reliable starting and long life, stick to a regular maintenance routine: check and change the oil on schedule, clean or replace the air filter, inspect the spark plug, and ensure the exhaust system is clear. Troubleshooting is usually straightforward; if the generator shuts off unexpectedly, a low-oil sensor or an overload is often the cause; if it won’t start, stale fuel, a dirty carburetor, or an improperly set choke are common culprits. Ensuring proper ventilation is critical because the CO-MINDER system will shut the unit down if carbon monoxide levels rise, so always run it outdoors and away from windows or enclosed spaces. With smart load management, good upkeep, and safe operation practices, the EG4000CLAG will deliver strong, efficient, and consistent performance for years.

Wattage Capabilities / Specs

Here are the key power specs for the EG4000CLAG (California model):

• Engine: Honda GX270, 270 cc
• AC Output: 120/240 V
• Max (surge) wattage: ~4,000 W
• Rated (continuous) wattage: ~3,500 W
• Current: 33.3 A (120 V) / 16.7 A (240 V) at peak output.
• Fuel tank: 6.3 gallons.
• Run time: up to ~14.8 hours at 50% load.
• Noise: ~66–67 dB(A), depending on load.
• Safety: Has CO-MINDER for carbon monoxide detection.
• Regulation: Uses a DAVR (Digital Automatic Voltage Regulator), keeping voltage stable ~±1%.
• Protection: Automatic shut-off (“Oil Alert”) if oil is low.

Easy Troubleshooting Tips

Here are some common issues you might run into, plus how to troubleshoot and solve them:

1. Overload / Circuit Breaker Trips
   • Symptom: Generator shuts off or breaker flips.
   • Cause: Drawing more power than the generator’s rated capacity.
   • Fix:
     • Check what you're plugging in. Motor-driven appliances (like pumps and compressors) often need much more wattage to start than their running wattage.
     • Reduce the load. Turn off or unplug some devices, then reset the circuit breaker.
     • If frequent, consider a larger generator or stagger powering up heavy-load devices.
2. Low Oil Shutdown
   • Symptom: Engine stops unexpectedly.
   • Cause: Oil level is too low.
   • Fix:
     • Check the oil before each use (or per the manual schedule).
     • Refill with the correct oil grade.
     • Make sure the generator is on level ground when checking.
3. Hard Starting
   • Symptom: Pull cord doesn’t start the engine easily.
   • Possible Causes & Fixes:
     • Dirty or stale fuel: Drain old fuel, refill with fresh gas.
     • Faulty spark plug: Check, clean, or replace the spark plug.
     • Choke misused: Use the choke correctly when cold starting.
     • Air filter dirty: Inspect and clean or replace the air filter.
     • Carburetor issues: If the generator has been stored long, the carb might need cleaning.
4. High CO Warning / Shutdown (CO-MINDER)
   • Symptom: Generator shuts off or warns of CO.
   • Cause: Carbon monoxide buildup around the unit.
   • Fix:
     • Ensure the generator is outdoors and well-ventilated.
     • Keep it away from enclosed areas.
     • Don’t run it near open windows, doors, or vents where CO could accumulate.
5. Voltage Stability Problems
   • Symptom: Connected equipment flickers, undervolts, or overvolts.
   • Cause: Possible regulator issues, or overloading.
   • Fix:
     • Verify load is within spec.
     • If regulation still seems off, the DAVR (voltage regulator) may need inspection or replacement (professional service).
6. Poor Fuel Efficiency or Engine Bogging
   • Symptom: High fuel consumption, engine stalling under load.
   • Cause: Overloading, dirty filters, or engine tuning problems.
   • Fix:
     • Run closer to 50% load if you want good fuel economy. (Running very lightly or at max constantly can hurt efficiency.)
     • Maintain the engine: change oil, clean filters.
     • Make sure spark arrestor isn’t clogged.

Tips to Use It for Best Efficiency

To get the most efficient and safe use out of your EG4000CLAG, here are some best practices:

• Load Management: Try to run your generator at about 40–60% of its rated capacity when possible. This is often the “sweet spot” for fuel efficiency and reduces stress on the unit.
• Stagger Start-Up of Heavy Loads: When you need to start motor-driven appliances, don’t turn them all on at once. Start one, let it run for a few seconds, then bring on the next; this avoids a huge surge that could overload.
• Use Proper Fuel: Use clean, fresh gasoline. Old fuel can lead to poor combustion and inefficiency. If you store fuel, use a stabilizer.
• Regular Maintenance:
  • Change the oil per Honda’s recommendations.
  • Clean or replace the air filter regularly.
  • Check the spark plug periodically.
  • Inspect and clean the exhaust / spark arrestor to keep airflow good.
• Cool-Down Practices: After heavy use, let the generator run at a modest light load for a minute or two before shutting it off it helps it cool down more evenly and protects the engine.
• Safe Placement: Always run the generator outdoors or in very well-ventilated space. Carbon monoxide is dangerous. Also, place it on level ground to ensure stable operation and reliable oil readings.
• Use the Right Cords & Connections: Make sure extension cords or power cords are rated for the load you’re drawing. Undersized cords can overheat or drop voltage.
• Monitor CO-MINDER: Don’t ignore CO warning shutdowns. That system is there to protect you. If it triggers, move the unit, improve ventilation, or reduce load.
• Winter / Cold Starts: If you're starting in cold weather, warm up the engine properly. Cold engines are less efficient initially, so give it a little time before connecting heavy loads.
