Honda WX15TA

Honda WX15TA

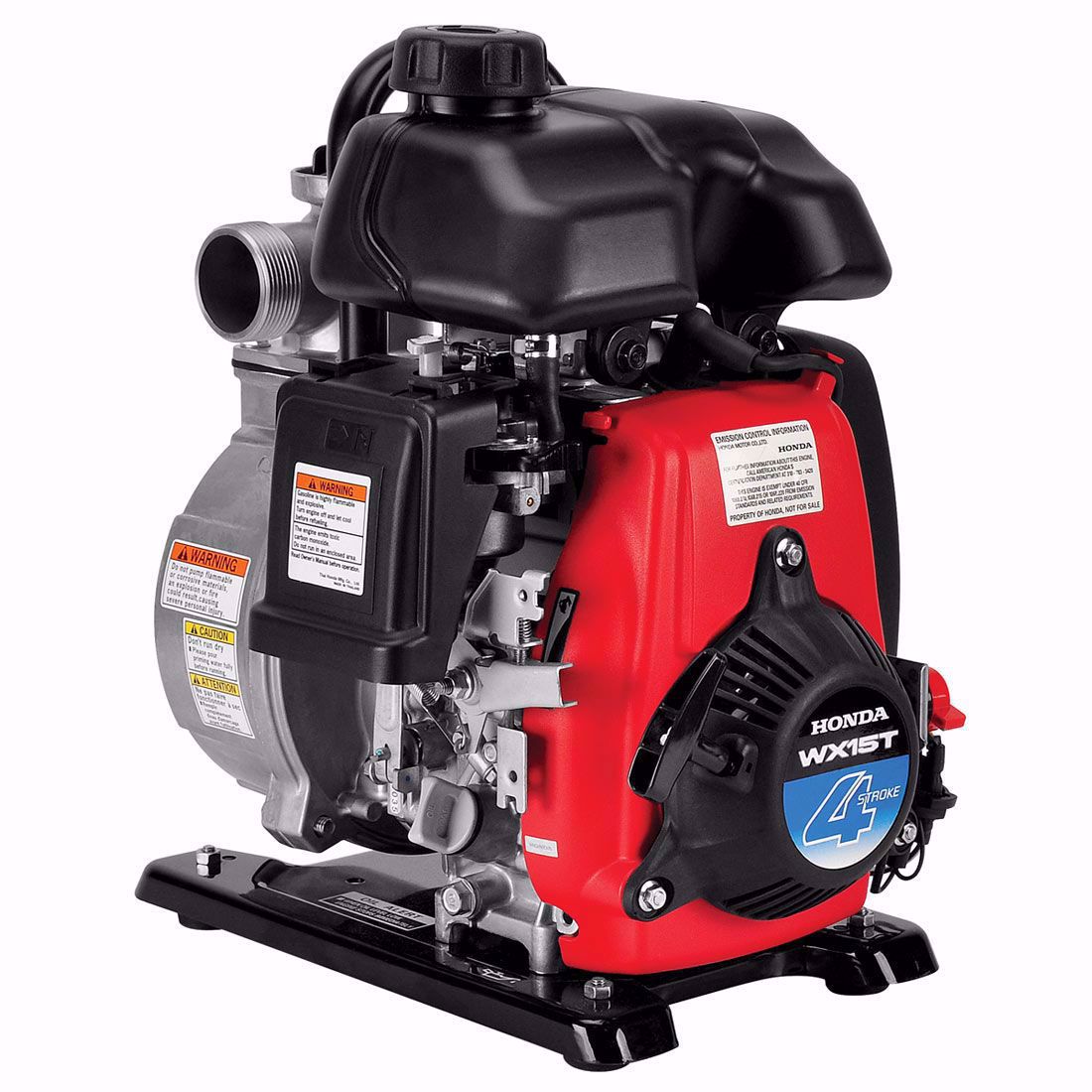

The Honda WX15TA is a robust and highly portable 1.5-inch centrifugal water pump powered by a Honda GXH50 engine, designed for efficient water transfer in a variety of settings. With a maximum discharge capacity of 74 gallons per minute, it can lift water up to 26 feet from a source and push it vertically to heights of 121 feet, making it suitable for irrigation, dewatering, and general-purpose pumping tasks. For best efficiency, it is crucial to position the pump as close to the water source as possible, use a non-collapsible suction hose, and ensure all hose connections are airtight to maintain prime; the built-in priming port facilitates filling the pump with water, and priming should be done patiently, typically taking around two minutes at moderate lift. The discharge hose should be appropriately sized to minimize pressure loss, securely clamped, and routed with minimal bends or elevation gain. Engine maintenance, such as checking oil levels to avoid triggering the low-oil shutdown, using fresh fuel, and cleaning the intake strainer regularly, ensures optimal performance and longevity. Common troubleshooting issues include the pump losing prime due to suction leaks or collapsed hoses, low flow from blockages or worn impellers, surging caused by air in the system, or engine starting problems related to spark plugs, fuel quality, or oil levels; these can generally be resolved by inspecting hoses and fittings, re-priming, cleaning the strainer, and verifying engine conditions. Safety measures, including operating on a stable surface, wearing eye protection when connecting or disconnecting hoses, avoiding running the pump dry, and draining it completely before freezing conditions, are essential to prevent damage and ensure safe operation. With attentive setup, regular maintenance, and careful operation, the WX15TA provides reliable, high-efficiency water pumping performance for both professional and domestic applications.

Key Specs & Discharge Capabilities

Here are the important specs for the WX15TA:

• Engine: Honda GXH50, 49 cc.
• Pump type: General-purpose centrifugal, self-priming.
• Discharge capacity: 74 gallons per minute (GPM).
• Suction port: 1.5″ NPT; Discharge port: 1.5″ NPT.
• Total head lift: 121 ft (how high it can push water).
• Suction head lift: 26 ft (how far it can draw water up from a source).
• Max pressure: 52 psi.
• Priming time: ~120 seconds when suction lift is 16.4 ft.
• Dry weight: ~20 lb., very portable.
• Fuel capacity: ~0.20 gal.
• Run time at maximum discharge: ~0.9 hours (when fully loaded)
• Mechanical seal: Carbon/Ceramic, impeller: Aluminum.
• Oil Alert: The engine has a low-oil shutdown system (“Oil Alert”) to protect from damage.

Tips for Best Efficiency & Use

Here are some practical tips to run your WX15TA efficiently:

1. Placement / Setup
   • Place the pump as close to your water source as possible to minimize suction loss.
   • Use a sturdy, non-collapsible suction hose. If the hose collapses under vacuum, you’ll lose prime.
   • Make sure all hose clamps and fittings are tight to avoid air leaks (especially on the suction side).
2. Priming
   • Use the pump’s priming port to fill with water before starting. Since priming time is about 120 seconds (at ~16 ft lift), be patient.
   • While priming, monitor for air leaks, if air is entering the line, the pump may never completely prime.
3. Discharge Hose / Pressure
   • Use a hose that’s appropriately sized for the flow. A narrow or restrictive discharge hose will reduce flow and efficiency.
   • Securely clamp the discharge hose. Under high pressure, a loose connection could blow off.
   • If possible, avoid excessive bends or elevation gain in the discharge line, each adds pressure drop and reduces flow.
4. Running the Engine
   • Use fresh gasoline, since the fuel tank is small.
   • Make sure oil is at the proper level; the Oil Alert system will shut the engine off if oil is too low.
   • After finishing work, run the pump briefly to clear out any remaining water in the pump to avoid corrosion or damage (especially if storing).
5. Maintenance
   • Regularly check and clean the strainer on the intake; debris will reduce flow and could damage the pump.
   • Change or check engine oil per Honda’s maintenance schedule.
   • Inspect the impeller and mechanical seal during maintenance intervals to ensure they are in good condition; wear or damage can reduce efficiency.

Troubleshooting Common Issues

Here are some issues you might run into, and how to diagnose or fix them:

Safety & Best Practices

• Always operate the pump on a stable, level surface to prevent tipping or triggering low-oil sensors.
• Wear eye protection when attaching/detaching hoses (especially under pressure).
• Do not run the pump dry, you risk damaging the mechanical seal or impeller.
• If storing for winter or in freezing conditions, drain the pump completely so water doesn’t freeze inside and crack components.
