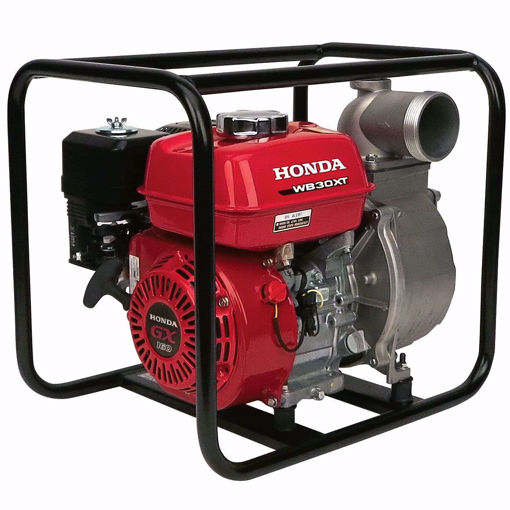

WB30XKT3A Honda 3" Water Pump

Honda WB30XT3A

The Honda WB30XT3A is a powerful 3-inch general-purpose centrifugal water pump equipped with a 163 cc GX160 engine, capable of delivering up to 290 gallons per minute, making it ideal for high-volume water transfer, irrigation, dewatering, and other demanding applications; it can draw water from a suction lift of up to 25 feet and push it vertically to a total head of 85 feet, providing strong performance even in challenging conditions. For optimal efficiency, the pump should be positioned as close as possible to the water source, using a reinforced, non-collapsible suction hose and ensuring all fittings are airtight to prevent air leaks that could compromise priming. Priming is accomplished through the built-in port, and at a typical suction lift, it takes around 150 seconds, with attention paid to avoid air entering the system. The discharge hose should match the 3-inch port, be routed with minimal sharp bends, and be firmly clamped to prevent blow-offs, while avoiding excessive vertical rises that could reduce flow and strain the engine. The pump should be fueled with fresh gasoline, and oil levels should be checked before operation to prevent the Oil Alert system from shutting down the engine, and after use, it is recommended to briefly run the pump to flush out residual water to protect the mechanical seal and impeller from corrosion. Routine maintenance, such as cleaning the intake strainer, inspecting the cast-iron impeller and silicon-carbide mechanical seal, and following the engine oil change schedule, is essential to sustain performance and longevity. Common troubleshooting involves checking suction hoses and fittings if the pump fails to prime, cleaning the strainer or inspecting the impeller if discharge is weak, bleeding air from the system if the pump pulses, and verifying fuel quality, spark plug condition, or oil levels if the engine does not start or shuts off unexpectedly. Safety precautions include operating the pump on a stable, level surface, wearing eye and hand protection when handling hoses under pressure, never running the pump dry, and draining the unit completely before freezing conditions to prevent damage. By carefully setting up the suction and discharge lines, properly priming the pump, maintaining the engine and pump components, and observing safety practices, the WB30XT3A provides reliable, high-efficiency water pumping for both professional and heavy-duty residential applications.

Key Specs & Discharge Capabilities

• Engine: Honda GX160, 163 cc.
• Pump type: Centrifugal, self-priming.
• Volute: Rigid-mounted cast iron; very durable.
• Impeller: 4‑vane cast iron, designed for efficiency.
• Mechanical Seal: Silicon carbide (on both pump case and impeller) offers long-term durability.
• Priming Time: Approximately 150 seconds (when suction lift is ~16.4 ft).
• Discharge Capacity: 290 gallons per minute (GPM).
• Suction Port: 3″ NPT.
• Discharge Port: 3″ NPT.
• Total Head Lift: 85 ft (i.e., the maximum vertical height it can push water).
• Suction Head Lift: 25 ft (how far it can draw water).
• Maximum Pressure: ~37 psi.
• Fuel Capacity: ~0.82 gallons.
• Run Time at Max Discharge: ~1.9 hours.
• Strainer: Large, can allow up to 8 mm (5/16 in.) solids, reducing risk of clogging.
• Protection: Has Honda Oil Alert; the engine will shut off if the oil is too low.
• Dry Weight: ~57 lb.

How to Use It Efficiently

1. Positioning & Setup
   • Place the pump as close to the water source as practical. Reducing suction distance helps efficiency and makes priming easier.
   • Use a reinforced suction hose (non-collapsible) to avoid vacuum collapse or leaks.
   • Make sure all hose connections (especially on the suction side) are tight and properly clamped to minimize air leaks.
2. Priming
   • Fill the priming port with water before starting so the pump can self-prime. Given that priming takes around 150 seconds (at a typical suction lift), patience is important.
   • While priming, check for any signs of air entering (bubbling, hissing) air leaks will prevent stable priming.
3. Discharge Line Setup
   • Use a 3″ discharge hose (matching the pump port) to preserve flow and reduce pressure drop.
   • Route the discharge hose with as few sharp bends as possible. Avoid excessive vertical rises in the discharge path, since each foot of head adds load and reduces flow.
   • Use strong, reliable hose clamps on the discharge outlet to prevent blow‑offs under pressure.
4. Running the Engine
   • Use clean, fresh gasoline. Because the tank is relatively small, plan your refuel strategy if running long.
   • Verify the oil level before use the Oil Alert system protects the engine from damage.
   • Once the pump is running and you no longer need to physically prime, let it run for a short period at moderate flow to clear out any remaining water in the pump before shut-down.
5. Maintenance
   • Regularly clean the intake strainer to remove debris and prevent clogging.
   • Follow Honda’s schedule for checking and changing engine oil.
   • Inspect the impeller and mechanical seal over time. Even though the silicon-carbide seal is very robust, wear or sand/abrasive material in the water can cause damage.
   • Tighten and check all bolts and frame mounts periodically; vibration can loosen things over long runs.

Troubleshooting Tips

Here are common problems you might run into with the WB30XT3A and how to address them:

• Pump Fails to Prime / Loses Prime
  • Likely cause: air leak in the suction hose or at connections.
  • What to do: Inspect all suction fittings, tighten hose clamps, and re-prime. Also check the foot valve (if you’re using one) for proper operation.
• Low Flow / Weak Discharge
  • Possible causes: clogged strainer, worn or damaged impeller, overly restrictive or small discharge hose, or too much head (vertical lift).
  • What to do: Clean the strainer, inspect the impeller for damage, ensure the discharge hose is appropriately sized and routable, and re-evaluate the system’s vertical lift.
• Pump Pulses / Surges
  • Likely cause: air entrainment or fluctuating suction conditions.
  • What to do: Bleed any trapped air (if possible) via priming port, re-check suction line for leaks, verify that your foot valve (if present) is working and seated properly.
• Engine Shuts Off or Won’t Start
  • Possible causes: low oil (triggering Oil Alert), bad fuel, spark plug issues, or flooding.
  • What to do: Check oil level, use fresh fuel, inspect/clean or replace the spark plug, and ensure the choke and throttle are set correctly.
• Overheating or Straining
  • Possible cause: Pump is pushing more water than the system allows (or running against too high head without enough flow), or there is a blockage in discharge.
  • What to do: Check discharge path for obstructions, reduce head if possible, and ensure the engine is not being overloaded.

Safety & Best Practices

• Always run the pump on a firm, level surface to prevent tipping and to avoid triggering oil shutoff due to tilt.
• Wear safety glasses and gloves when connecting or disconnecting hoses pressurized water or trapped air can spray out unexpectedly.
• Never run the pump dry; doing so can damage the mechanical seal.
• If you’re operating in cold conditions or storing the pump in winter, drain all water from the pump and hoses to avoid freeze damage.
• Secure the pump during transport using the built-in frame tie-down points. The WB30XT3A has a heavy-duty frame for protection.

Why This Pump Is a Good Choice

The WB30XT3A is designed for high-volume water transfer, thanks to its 3″ ports and large discharge capacity (290 GPM). It’s built tough with a cast-iron volute and impeller, plus a durable silicon-carbide mechanical seal, making it effective and long-lived even in demanding use. Its self-priming capability, large strainer, and Oil Alert system make it practical for both rugged jobsites and dewatering tasks. When used with proper hose setup, priming, and maintenance, it offers very efficient, reliable water pumping.
