GX390 QC9 Honda OHV Engine w/Cyclone Air Cleaner - FREE SHIPPING

Manufacturer: Honda Engines

Be the first to review this product

390cc Honda OHV Engine Free Shipping Continental U.S. Only ***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***

SKU: 664610

Availability: 23 in stock

$799.00

Qty:

i h

Free shipping

Overview
Specifications
Reviews
Contact Us

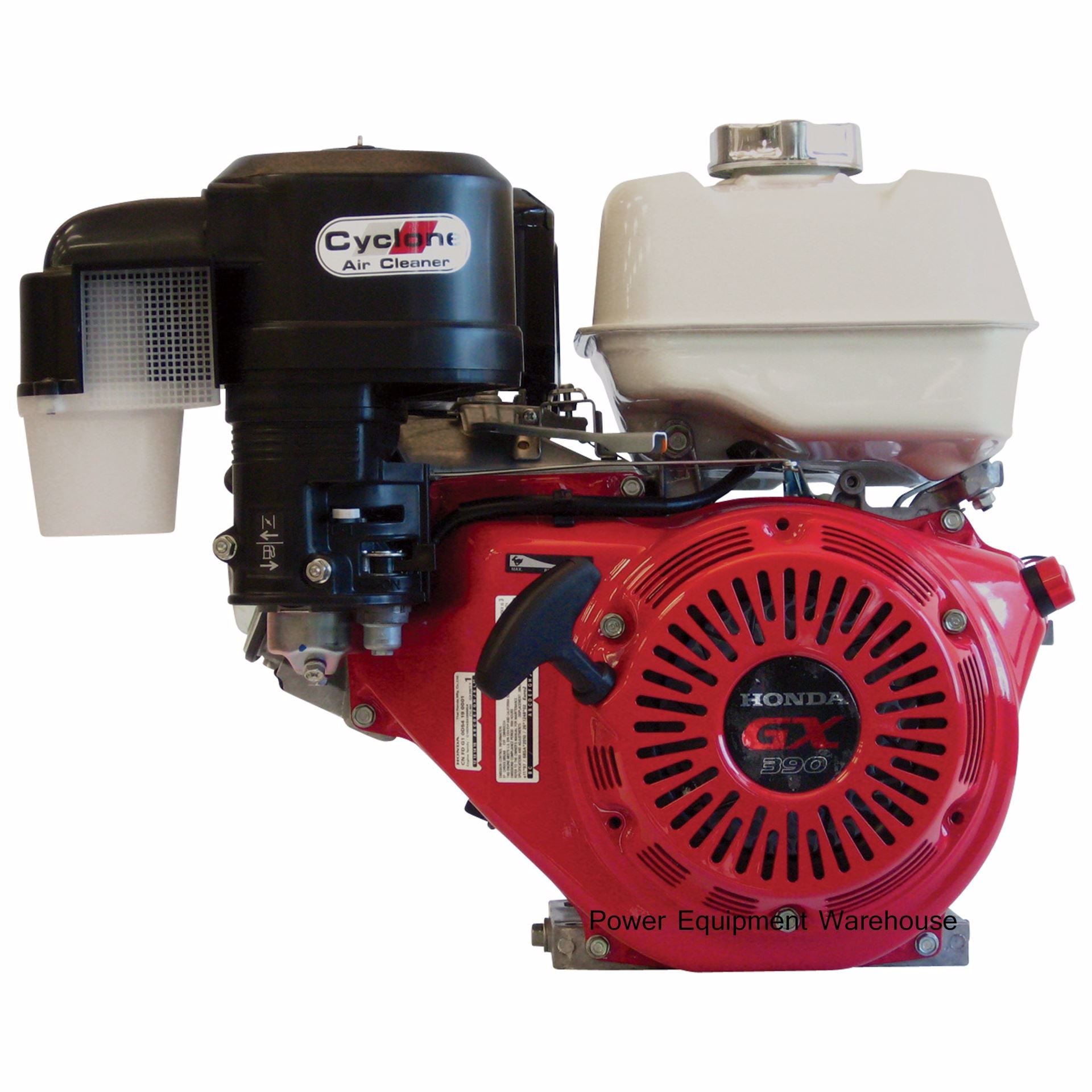

GX390 QC9 Honda Horizontal OHV Engine - FREE SHIPPING CONTINENTAL U.S. ONLY

Honda GX390 QXC9 (GX390UT2QAE2) horizontal OHV engine is 390cc and puts out 11.7 HP. This Honda GX has a 1" x 3-31/64" crankshaft. The engine has a recoil starter, a cyclone air filter, a standard muffler and oil alert system. Honda GX390 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power.

Features Include:

390cc, net 11.7HP
1" X 3 31/64" crankshaft
Recoil Start
Cyclone Air Cleaner
Standard Muffler
Oil alert
49-State CARB compliant

***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***

Warranty	36 Months Private Residential; 36 Months Commercial,Rental,Institutional
Displacement Range	241cc - 390cc
Engine Brand	Honda OHV
Crankshaft Diameter	1"
Crankshaft Length	3-31/64"
Crankshaft End Tapped Size	3/8-24
Crankshaft Keyway Width	1/4"
Air Cleaner Type	Cyclone
Throttle Control	Manual, Remote (Rod)
Starter Type	Recoil
PTO Height	5-1/4
Max RPM	3600
Oil Cooler	No
Carburetor Type	Float
Valve Style	OHV
Recoil Starter Position	9:00 O'Clock
Displacement	389cc
Ignition System	Digital CDI with Variable Timing
Lubrication System	Splash
Oil Capacity	38
Muffler	Yes
Fuel System	Gasoline
Governor System	Centrifugal Mass Type
Gear Reduction	No
Charging System	None
Choke Control	Manual

Cooling System	Air
Type	Small Engines
Fuel Pump	No
Auxiliary PTO	No
Compression Release	Yes
MFG Rated Output	11.7 Net HP
CPSC Compliant	No
Low Oil Shutdown	Yes
Low Oil Alert/Shutdown	No
Compression Ratio	8.2:1
Extended Recoil Rope	No
Oil Filter	No
Bolt Circle (in.)	5,6-1/2
Crankshaft Type	Straight
Oil Pump	No
Fuel Filter	Yes
Control Box	No
Cylinders (quantity)	1
Cylinder Bore Type	Cast Iron
Bore x Stroke	88 x 64 mm
Crankshaft Style	Horizontal
For Use in California	No
Crankshaft Rotation Direction (from PTO Shaft Side)	Counterclockwise
Fuel Tank Capacity	6.4
Color	Red
