160cc Honda OHV Engine Free Shipping Continental U.S. Only
SKU: 656851
Free shipping
Manufacturer: Honda Engines
$423.00

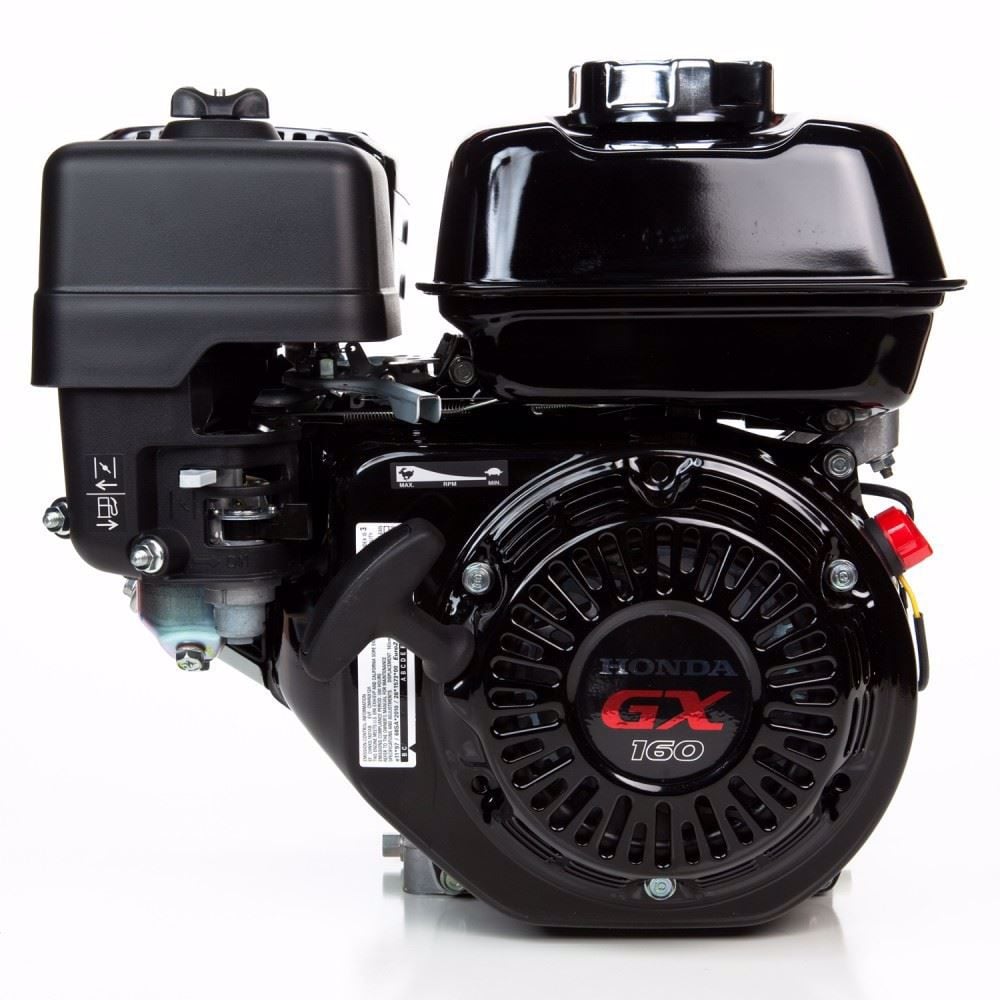

GX160 SMC7 Honda Horizontal OHV Engine

Features Include:

  • 160cc engine
  • 20mm crankshaft
  • Recoil Start
  • Muffler
  • Oil alert
  • 50-State CARB compliant
Warranty
  36 Months Private Residential; 36 Months Commercial,Rental,Institutional
Displacement Range 121cc - 240cc
Engine Brand Honda
Crankshaft Diameter 20mm
Crankshaft Length 2-7/16"
Crankshaft End Tapped Size M8 x 1.25
Crankshaft Keyway Width 5 mm
Air Cleaner Type Dual Element
Throttle Control Manual
Starter Type Recoil
PTO Height 4-11/64
Max RPM 3600
Oil Cooler No
Carburetor Type Float
Valve Style OHV
Recoil Starter Position 9:00 O'Clock
Displacement 163cc
Ignition System Transistorized Magneto
Lubrication System Splash
Oil Capacity 20
Muffler Yes
Fuel System Gasoline
Governor System Centrifugal Mechanical
Gear Reduction No
Charging System None
Choke Control Manual
Cooling System Air
Type Small Engines
Fuel Pump No
Auxiliary PTO No
Compression Release Yes
MFG Rated Output 4.8 Net HP
CPSC Compliant No
Low Oil Shutdown Yes
Low Oil Alert/Shutdown No
Compression Ratio 9.0:1
Extended Recoil Rope No
Oil Filter No
Bolt Circle (in.) 3-5/8
Crankshaft Type Straight
Oil Pump No
Fuel Filter Yes
Control Box No
Cylinders (quantity) 1
Cylinder Bore Type Cast Iron
Bore x Stroke 68 x 45 mm
Crankshaft Style Horizontal
For Use in California Yes
Crankshaft Rotation Direction (from PTO Shaft Side) Counterclockwise
Color Black
