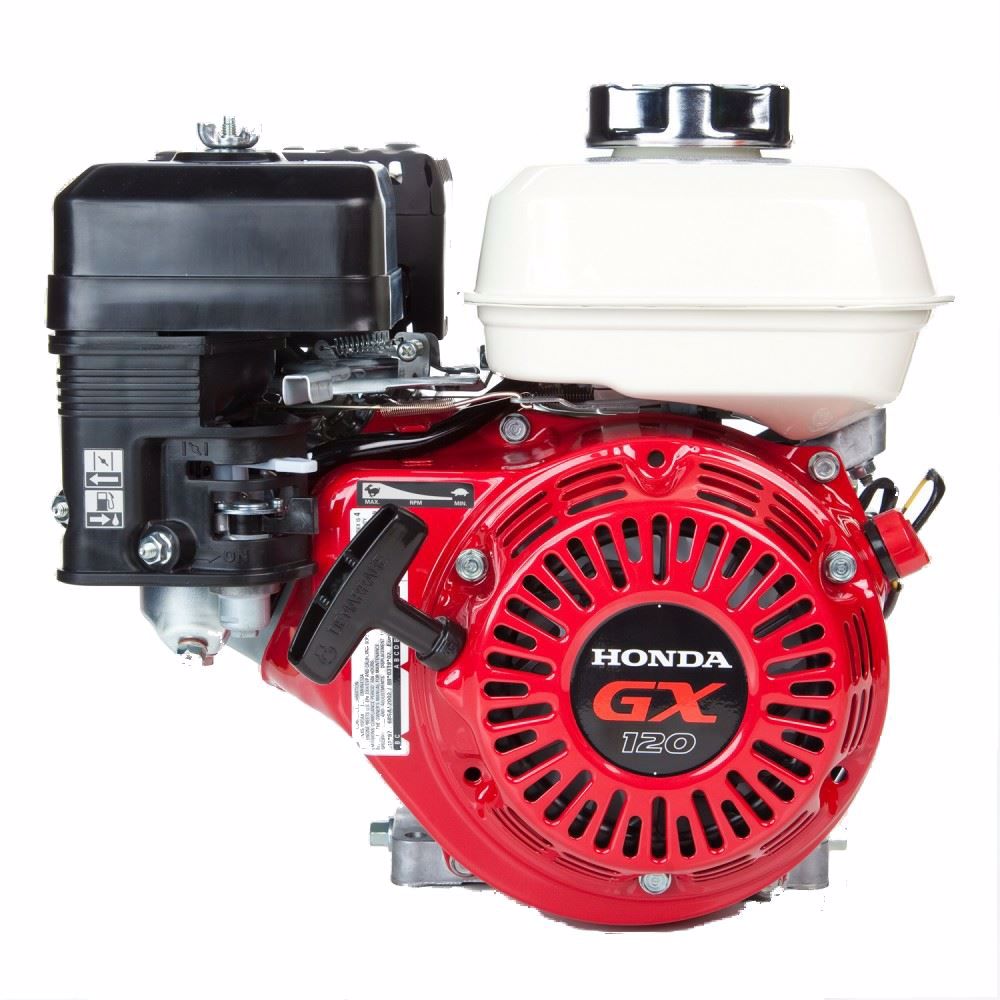

GX120 QX2 Honda OHV Engine
Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX120, 160, and 200 live up to the legend. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance.
Features Include:
- 120cc, net 3.5HP
- 3/4" x 2-7/16" crank
- Horizontal Shaft
- Recoil Start
- Standard muffler with spark arrestor
- Oil alert
- 50-State CARB compliant
| Warranty |
36 Months Private Residential; 36 Months Commercial,Rental,Institutional |
| Displacement Range |
25cc - 120cc |
| Engine Brand |
Honda |
| Crankshaft Diameter |
3/4" |
| Crankshaft Length |
2-27/64" |
| Crankshaft End Tapped Size |
5/16-24 |
| Crankshaft Keyway Width |
3/16" |
| Air Cleaner Type |
Dual Element |
| Throttle Control |
Manual, Remote (Rod) |
| Starter Type |
Recoil |
| PTO Height |
4-11/64 |
| Max RPM |
3600 |
| Oil Cooler |
No |
| Carburetor Type |
Float |
| Valve Style |
OHV |
| Recoil Starter Position |
9:00 O'Clock |
| Displacement |
118cc |
| Ignition System |
Transistorized Magneto |
| Lubrication System |
Splash |
| Oil Capacity |
19 |
| Muffler |
Yes |
| Fuel System |
Gasoline |
| Governor System |
Mechanical |
| Gear Reduction |
No |
| Charging System |
None |
| Choke Control |
Manual |
| Cooling System |
Air |
| Type |
Small Engines |
| Fuel Pump |
No |
| Auxiliary PTO |
No |
| Compression Release |
Yes |
| MFG Rated Output |
3.5 Net HP |
| CPSC Compliant |
No |
| Low Oil Shutdown |
Yes |
| Low Oil Alert/Shutdown |
No |
| Compression Ratio |
8.5:1 |
| Extended Recoil Rope |
No |
| Oil Filter |
No |
| Bolt Circle (in.) |
3-5/8 |
| Crankshaft Type |
Straight |
| Oil Pump |
No |
| Fuel Filter |
Yes |
| Control Box |
No |
| Cylinders (quantity) |
1 |
| Cylinder Bore Type |
Cast Iron |
| Bore x Stroke |
60 x 42 mm |
| Crankshaft Style |
Horizontal |
| For Use in California |
Yes |
| Crankshaft Rotation Direction (from PTO Shaft Side) |
Counterclockwise |
| Fuel Tank Capacity |
2.1 |
| Color |
Red |
