  • GX160 HX2 Honda OHV Engine w/Gear Reduction - FREE SHIPPING

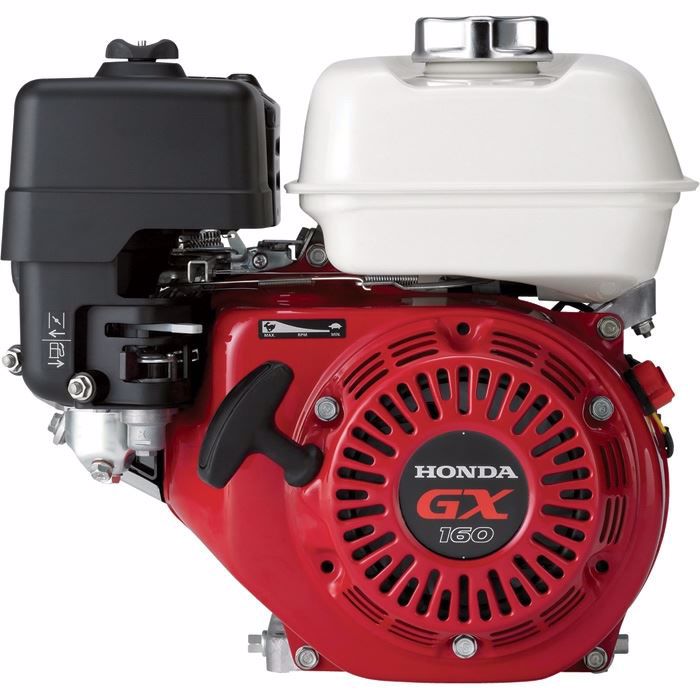

GX160 HX2 Honda OHV Engine w/Gear Reduction - FREE SHIPPING

Manufacturer: Honda Engines
Be the first to review this product
160cc Honda OHV Engine w/6:1 Gear Reduction Free Shipping Continental U.S. Only ***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***
SKU: 656560
Availability: Out of stock
$545.00
i h
Free shipping

GX160 HX2 Honda Horizontal OHV Engine w/6:1 Gear Reduction - FREE SHIPPING CONTINENTAL U.S. ONLY

Honda GX160 HX2 (GX160UT2HX2) horizontal OHV 6:1 gear reduction engine is 160cc and puts out 4.8 net HP. This Honda GX has a 3/4" x 1.96" crankshaft. The engines has a recoil start, a standard muffler, fuel tank, and oil alert system, but no clutch. Honda GX160 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Applications requiring lower speeds are ideal for gear reduction engines.

Features Include:

  • 6.1 can be rotated to position of application
  • 160cc, net 4.8HP
  • 3/4" x 2 3/64" crankshaft
  • Automatic decompression for easy starting
  • Heavy-duty ball bearing supported crankshaft
  • Oil Alert
  • Double walled heavy-duty tank with in tank fuel strainer
  • 49-state compliant engine

Warranty3 year limited warranty
Ship Weight45.0 lbs
Engine Displacement (cc)163
Start TypeRecoil
ApplicationCement mixer
Engine TypeGX series OHV commercial-duty
Net Power Output (HP)4.8 (3.6 kW) at 3,600 RPM
Net Torque (lbs./ft.)7.6 (10.3 Nm) at 2,500 RPM
Shaft OutputHorizontal
CrankshaftH type
Shaft Diameter (in.)3/4
Shaft Length (in.)2 3/32
Shaft Keyway (in.)1/4
Shaft Rotation (From PTO Shaft Side)Counterclockwise
Gear ReductionH type 6:1
PTO Height (in.)4 11/64
Cylinders (qty.)1
Cylinder BoreCast iron
Bore x Stroke (in.)2.7 x 1.8
Compression Ratio9:1
Cooling SystemAir cooled
Air Cleaner TypeDual element
Fuel TankStandard (White)
Fuel TypeGasoline
Fuel Tank Capacity (qt.)3.3
Oil Capacity (qt.)0.61
Lubrication SystemForced splash
Low Oil ShutdownYes
Ignition SystemElectronic
Governor SystemCentrifugal mechanical
CarburetorFloat, external vent
Throttle ControlRemote (wire)
Choke ControlManual
Max. RPM3,600
Muffler IncludedYes, (standard)
Auto Compression ReleaseYes
Bolt Circle (in.)3 5/8
Mounting Base L x W (in.)6 3/8 x 3 5/32 to 3 11/32
Dimensions L x W x H (in.)12 x 13 3/8 x 12 1/2
EPA/CARB Approval (California Air Resource Board)No











Products specifications
Product TypeParts
Engine BrandHonda®
