Classen HTS‑20H dethatcher and overseeder

* MUST SHIP TRUCK FREIGHT. Call Us For A Great Freight Rate (800)769-3741!

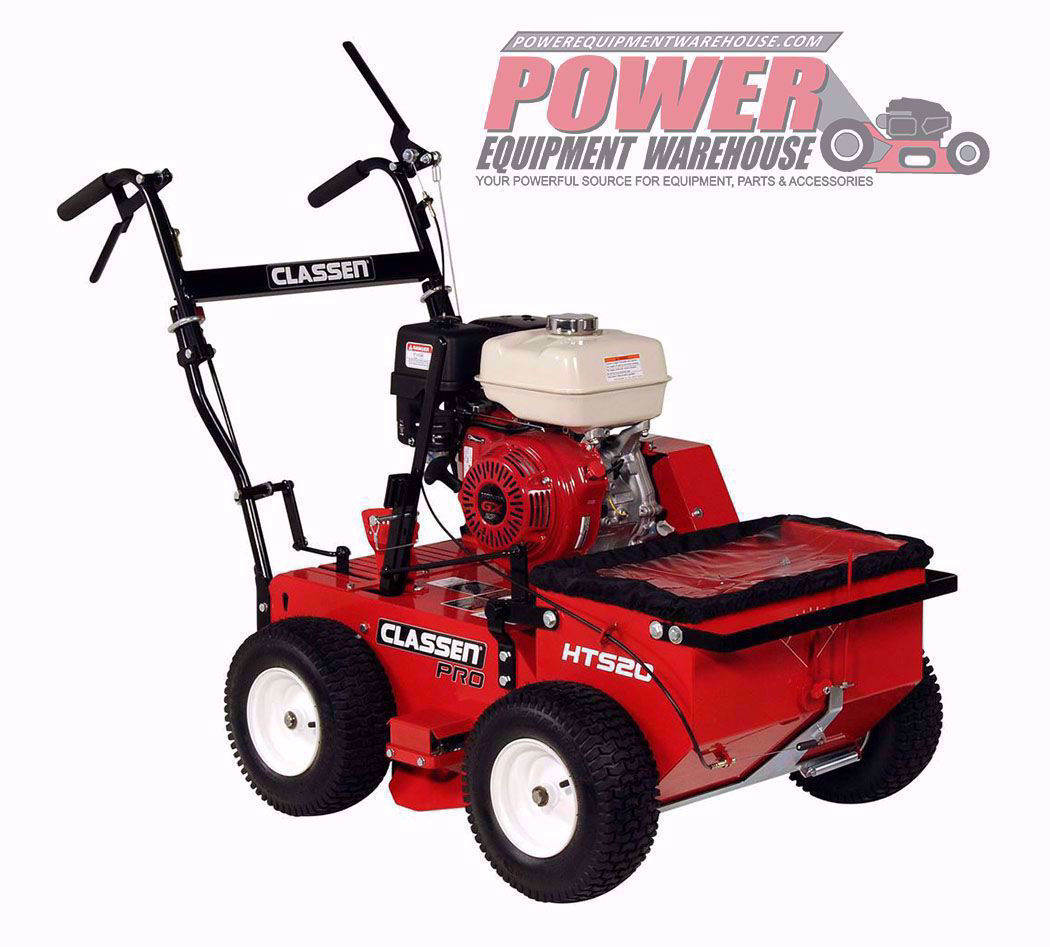

The Classen HTS‑20H dethatcher and overseeder is a robust, self-propelled turf machine powered by a Honda GX270 engine, designed primarily for medium to large lawns, roughly a quarter acre or larger, thanks to its 20-inch working width and hydrostatic drive system that allows smooth forward and reverse operation. Ideal for lifting light to moderate thatch while simultaneously overseeding, it features a floating seed box for consistent seed distribution over uneven terrain and adjustable blade depth to accommodate different turf conditions. To use it efficiently, prep your lawn by mowing to 1–2 inches and clearing debris, check oil, fuel, and air filters, and ensure blades and seed gates move freely. Start the engine, adjust blade depth based on thatch thickness, and walk at a steady pace, overlapping passes slightly to avoid gaps; for overseeding, a crisscross pattern ensures even distribution. After operation, light watering helps seed germination. Common issues include engine not starting, which may be due to no fuel, a loose or faulty spark plug, improper throttle position, or low oil, while uneven dethatching or seeding often results from incorrect blade depth or walking too fast. Maintenance, such as cleaning debris, inspecting blades, and checking oil and air filters, is essential for longevity, and safety precautions like wearing eye and hearing protection and never operating indoors due to carbon monoxide risks should always be observed. Overall, the HTS‑20H is a powerful, versatile tool that, when used with proper settings and care, can dramatically improve lawn health and seeding efficiency.

What the HTS‑20H Is

This is a self‑propelled, hydro‑drive turf overseeder with dethatching capability powered by a Honda GX270 engine. It’s designed to cut into the turf surface and help incorporate seed into the soil while lifting light thatch. It’s heavier and more powerful than a typical push dethatcher and is best suited for larger residential or commercial lawns rather than small yards.

The main features include:

• 20″ working width ,covers a solid swath with each pass.
• Self‑propelled hydrostatic drive with forward and reverse for easy control.
• Floating seed box for consistent seeding over uneven terrain.
• Around 300 lbs weight, providing good turf engagement.

Yard Size Capabilities

While the HTS‑20H doesn’t have a specified “maximum yard size,” its 20″ width and up to ~3 mph forward speed makes it ideal for yards roughly ¼ acre and larger (10,000+ sq ft). For smaller areas, a lighter push dethatcher (like the non‑hydro walk‑behind models) might be easier to handle and more cost‑effective.

How to Use for Best Efficiency

Before You Start

1. Prep Your Lawn:
   • Mow to about 1–2″ height. Shorter grass allows the machine to reach thatch/soil better.
   • Remove debris like sticks or large clumps that can jam blades.
2. Check the Machine:
   • Ensure oil, fuel, and air filter are correct per the manual.
   • Inspect that blade engagement and seed gate moves freely.

Operating the HTS‑20H

1. Warm Up the Engine
   Let it idle for a minute so oil circulates.
2. Set Depth/Float:
   Adjust how deep the blades engage, deeper for heavy thatch or seeding beds, shallower for lighter dethatching/overseeding.
3. Drive Steadily:
   Walk behind at a consistent pace, too fast = poor soil contact; too slow = clumping seed in one spot.
4. Overlap Passes Slightly:
   With a 20″ width, overlap ~2–3″ on each pass so there are no gaps.
5. Crisscross for Overseeding:
   For best seed distribution, go one direction then cross perpendicular on a second pass.
6. Water After:
   Light, frequent watering for the first 10–14 days improves germination.

Easy Troubleshooting Tips

Here are common issues you might run into and quick fixes from the HTS‑20H manual:

Engine Won’t Start

Possible causes & fixes:

• No fuel → fill tank.
• Spark plug loose or bad → tighten/replace.
• Throttle not in start position → set correctly.
• Engine flooded or stale gas → drain & refill with fresh fuel.
• Oil level low → fill to proper level.

Loss of Power or Hard Starting

Check these:

• Loose spark plug lead.
• Dirty air cleaner.
• Carburetor adjustment needed.
• Clogged air vents.

Fix: Clean/replace parts, check connections, and ensure ventilation.

Uneven Seeding / Dethatching

• Avoid walking too fast, slow speed ensures blades and seed contact soil properly.
• Adjust blade engagement depth if turf isn’t being lifted.
• Ensure weight and pressure distribution are even.

Blade Issues

• If blades don’t dig in, the depth setting may be too high.
• If they dig too deep and tear sod, raise depth in small increments.

Maintenance for Longevity

Simple checks after use help keep it running:
✔ Tighten loose nuts and bolts.
✔ Check engine oil and air filter.
✔ Inspect blades for wear or damage.
✔ Clean debris from wheels and under the machine.

Safety Reminders

• Always read and follow the operator manual before use.
• Wear eye and hearing protection.
• Never run the engine indoors due to carbon monoxide risk.

Quick Tip

Many operators adjust settings and do a small test pass on a hidden area first to dial in blade depth and forward speed before working the whole lawn.
