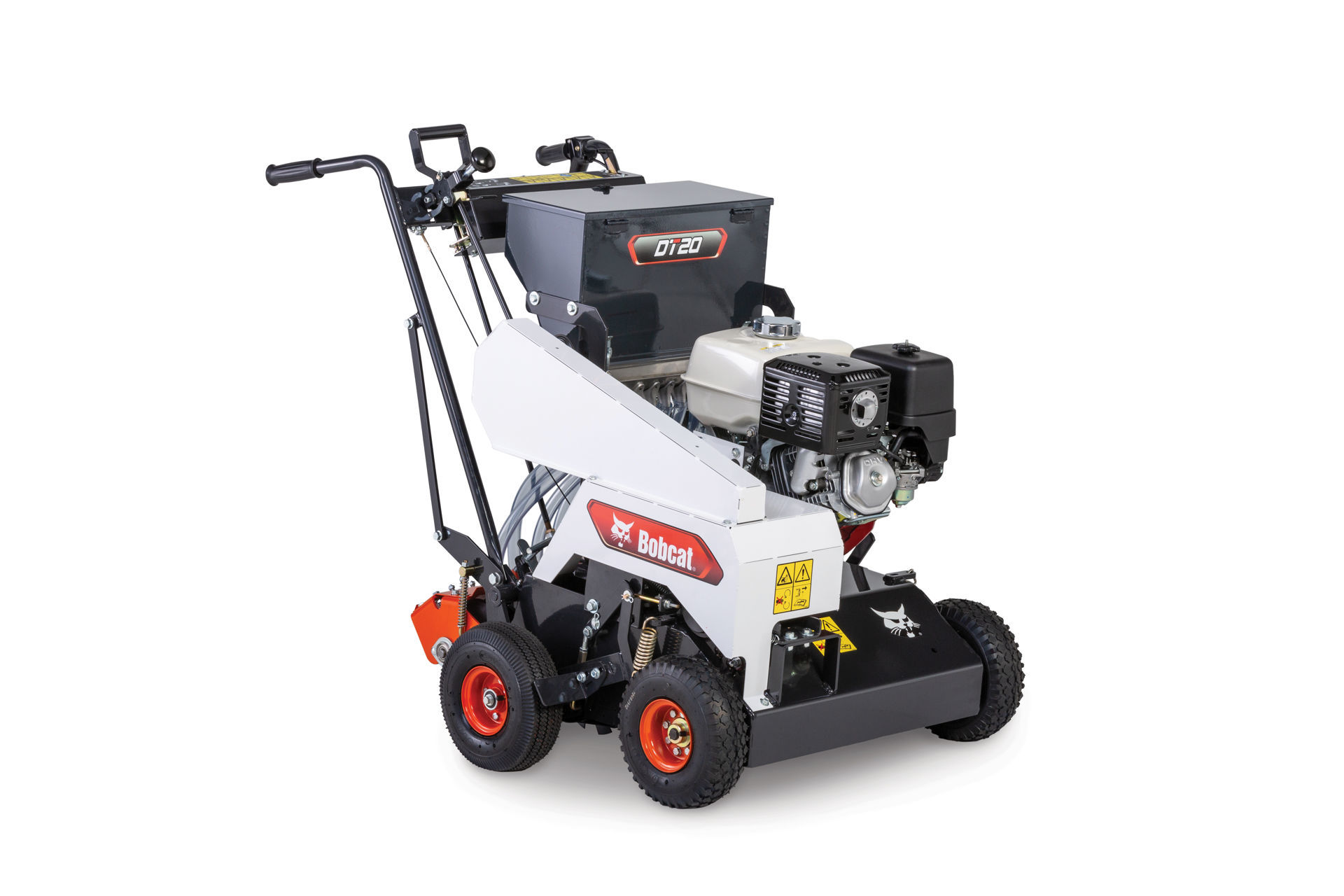

DT20 20" Walk-Behind Overseeder
The Mataway® Overseeder delivers seed straight to the curve-shaped discs, placing it directly into soil slits for unmatched seed-to-soil contact, aeration and overseeding. You can seed at variable rates for different grass varieties and applications. The overseeding flow rate is easily controlled right from the operator’s station, and the flow stops automatically when the reel is raised for maximum control and precise operation whenever you’re overseeding your lawn.
4-cycle Honda GX390 engine, recoil start, on/off switch, low-oil alert
Horsepower (@ 3,600 rpm) 11 hp (8 kW)
Displacement 23.7 cu. in. (389 cc)
Fuel Capacity - 1.6 gal (6.1 L)
Oil Capacity - 1.16 qt. (1.1 L)
Clutch - Spring-loaded belt tightener
Primary Drive - 4L-section V-belt to front wheels by gear box and sealed roller chain; triple 3V-section V-belts from engine to reel
Lubrication - Oil splash in gear case; pressure grease fittings elsewhere
Cutting Depth - Adjustable to any desired depth up to 1.5 in. (38 mm)
Seeding/Slicing Width - 19 in. (483 mm)
Front Tires Two 10.4 x 4.10-4, 2-ply, pneumatic; knob tread
Rear Tires Two 10.25 x 4.10-4, 2-ply, pneumatic; sawtooth tread
OPTIONAL VERTICAL SLICER/DETHATCHER REELS AS FOLLOWS:
Flail-Type Blade #544269A1/8 in. (3 mm) at 1 in. (25 mm) spacing
Fixed-Type Blade #544260A1/32 in. (1 mm) at 1/2 in. (13 mm) spacing;
#544261A 1/32 in. (1 mm) at 1 in. (25 mm) spacing;
#544262A 1/16 in. (2 mm) at 1 in. (25 mm) spacing;
#544265A 1/16 in. (2 mm) at 1-1/2 in. (38 mm) spacing
HOPPER
Capacity 0.83 cu. ft. (0.02 cu. m)
Configuration Rectangular top with side tapering down to feed rotor bar
Size 8.5 in. W x 18.5 in. L x 13 in. H (216 x 470 x 330 mm)
Seed Density Fully adjustable for all types of common grass seed
ROTOR BAR AND METERING SYSTEM
Metering System Stainless-steel plates with triangular holes slide over each other to create a variable opening
Rotor Bar Neoprene rubber
Seed-Flow Control Rotor bar stop; gate shutoff
Rotor Bar Drive Direct drive powered by front-wheel-drive unit
Rotor Bar Operation Engages in lowered-reel position only
Seed Gate Operation Automatically shuts off when unit is raised
Maintenance Rotor bar and metering device remove easily for servicing
LOWER SEED DELIVERY SYSTEM
Seed Tubes Clear Plastic
Seed Outlets 10 at 2 in. (51 mm) spacing
Discs 10 high-carbon, heat-treated disc blades with scrapers
Detachable Four removable pins attach disc assembly to Mataway
Slicing Reel Hardened, 1 in. (25 mm) hex shaft
Fixed Blades 10 8-point, high-carbon, heat-treated blades designed for slicing and longer wear life; spaced 2 in. (51 mm) centers
