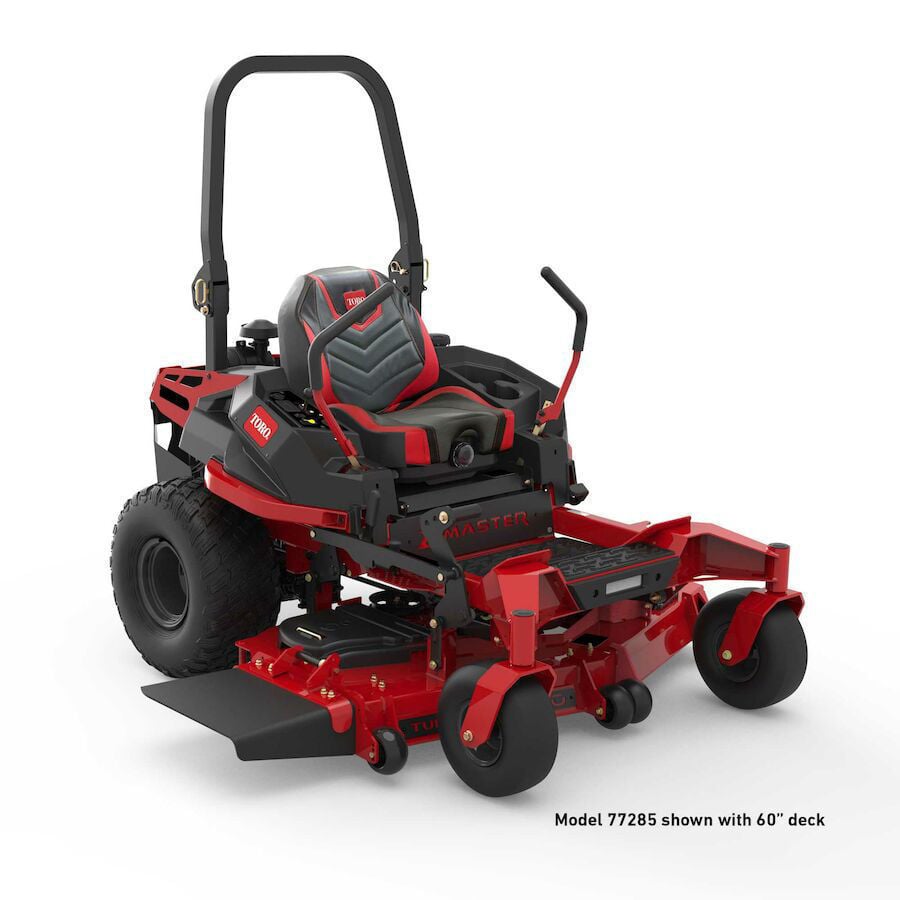

Toro 77283 Z Master 2000 Series

Toro 77283 Z Master 2000 Series

The Toro 77283 Z Master 2000 Series is a commercial-grade zero-turn mower with a 52-inch cutting deck and a 24.5-horsepower V-Twin engine, designed for large residential properties or light commercial use, making it ideal for multi-acre lawns where wide coverage and efficiency are priorities. With a 7-gallon fuel tank and transport speeds up to 10 mph, it allows extended mowing sessions without frequent refueling, while the 1.5-to-5-inch adjustable cutting height provides versatility for different turf types and seasonal conditions. To achieve optimal performance and efficiency, users should plan mowing patterns that minimize overlaps and tight turns, starting with perimeter passes before moving to long, straight interior runs to leverage the zero-turn maneuverability of the mower. Maintaining a consistent mowing speed suited to grass thickness and moisture, keeping blades sharp, and adjusting deck height for turf health ensures clean cuts and reduces strain on the machine. Pre-mowing inspections including checking blade and belt condition, deck clearance, tire pressure, fuel, and oil; along with clearing debris from the yard, help prevent damage and downtime, while post-mowing care, such as cleaning the deck underside, checking hydrostatic transmissions and steering linkages, and maintaining tire pressure, extends the machine’s lifespan. Common troubleshooting concerns include uneven cutting caused by dull blades, clogged decks, improper deck height, or worn anti-scalp wheels; engine performance issues due to stale fuel, fouled spark plugs, clogged air filters, or low oil; and drive problems stemming from hydrostatic transmission fluid levels, steering linkage adjustments, or worn caster and drive tires. Deck bounce or turf damage can often be addressed by inspecting caster assemblies, adjusting cutting height, and ensuring proper tire pressure. Given its wide deck, commercial-grade components, and substantial weight, careful handling during transport and storage is recommended, and following the manufacturer’s maintenance schedule, along with using resources such as the My Toro app, ensures that the 77283 delivers high-efficiency mowing, excellent cut quality, and long-term durability across large, demanding lawns.

Yard‑Size & Capability

The 77283 features a 52‑inch (132 cm) wide cutting deck, built from 7‑gauge high‑strength steel with a 5.5″ deck depth, designed for durability in demanding use.
It is powered by a 24.5 hp Toro V‑Twin 708 cc engine.
Fuel capacity is 7 gallons (≈26.5 L) and the transport speed is rated up to 10.0 mph (≈16 km/h). Height of cut spans 1.5″ to 5.0″ (3.8–12.7 cm) in 0.25″ increments.

What this means for your yard:

• With a 52″ deck you’ll cover more ground in less time compared with smaller mowers; excellent for multiple‑acre properties or large open areas.
• If you have a modest sized yard (say less than 1 acre) this machine might be oversized (higher upfront cost, wider deck may be less maneuverable in tight spaces).
• For 2–5 acres (or more) of fairly open lawn, the 77283 is very strong: wide deck, robust engine, commercial‑grade build.
• If your terrain is tight, with many obstacles, narrow gates, or smaller mowing corridors, you’ll want to plan for the width and turning radius accordingly.

How to Use It for Best Efficiency

To get the most out of the 77283 and keep it running well, here are some recommended practices:

1. Plan your mowing pattern
   Use the wide 52″ deck to its advantage by mowing in long straight runs, when possible, rather than constantly turning in small patches. Make a perimeter pass first, then fill in the interior in strips. Avoid overlapping too much.
   With zero‑turn control you’ll benefit from quick turning, but the wide deck means wider passes; so, pick lines that allow for full swaths.
2. Adjust cutting height appropriately
   Choose the height based on your turf type, time of year and condition. Lower heights (near 1.5″) may stress the turf if it’s not resilient; higher cuts help the grass stay healthy and reduce the need for frequent mowing. Also: keep blades sharp; a dull blade creates poor cut quality and makes the deck work harder.
   The height of cut span (1.5–5.0″) gives flexibility.
3. Maintain consistent speed
   While the rated transport speed is up to ~10 mph, for quality mowing you often go slower to allow the deck to cut cleanly and avoid missing strips. If grass is thick or damp, reduce speed to ensure a clean cut and avoid loading the deck. That helps with efficiency and machine wear.
4. Pre‑mowing checks
   • Inspect blades, belts, deck underside for debris or damage.
   • Check tire pressures, caster wheels, drive tires (this model has large Voodoo Trac 24″ drive tires)
   • Ensure fuel is fresh, oil level is correct, and engine air filter is clean (especially for V‑Twin commercial grade engine).
   • Clear sticks, rocks or other obstacles in the yard, since you’ll cover a wide swath, hitting a large object could damage deck, blades or spindles.
5. Post‑mow cleaning & care
   • Clean underside of deck; dried grass and buildup reduce airflow and cutting efficiency.
   • Inspect belt tension, pulleys, spindle bearings.
   • Check drive system (hydrostatic transmission) and steering linkages for smooth operation.
   • Store machine with some care: if it will sit idle, consider fuel stabilizer or drain fuel, and maintain tire pressure.

Troubleshooting Tips (Easy & Common Issues)

Here are some frequent issues and what to check, to keep the machine running smoothly.

Issue: Uneven cut / missed strips

What you’ll see: Stripes of grass missed, uneven height, clumps of grass.
Check:

• Are blades sharp and balanced? Dull or bent blades = poor cut quality.
• Is the deck underside clogged with grass? Clean it out.
• Is deck height set too low (causing scalping) or too high (causing missed cuts)? Adjust appropriately.
• Are anti‑scalp wheels present and intact? This model has standard anti‑scalp wheels.
• Are caster/front wheels worn or deck hanging unevenly? Inspect the wheels.
• Are belts slipping or worn? Check deck drive belts.

Issue: Engine hard to start / runs poorly

What you’ll see: Difficult starting, sputtering, loss of power, dies on load.
Check:

• Fuel: stale gas or contamination? Drain and refill fresh.
• Spark plugs: fouled or worn? Replace if needed.
• Air filter: clogged? The heavy‑duty air cleaner must be maintained.
• Oil level and condition: low oil or old oil can reduce engine performance.
• Safety interlocks: seat switch, blades engaged/disengaged, PTO switch – make sure all are properly set.
• Fuel system/carbs: after long storage these may need cleaning.

Issue: Drive/transmission problems

What you’ll see: One side moving slower, slipping, no forward/reverse, odd noises.
Check:

• This model uses Hydro‑Gear ZT‑3400 transmissions.
• Check fluid levels and condition of hydro system (if applicable) or any specified transmission maintenance.
• Check steering levers and linkages, if uneven they can cause uneven drive.
• Inspect rear drive tires (24″ Voodoo Trac) for wear; low or mismatched pressure causes uneven drive.
• Check caster bearings or front wheels for damage.

Issue: Deck bounce / scalping / turf damage

What you’ll see: Deck bouncing, brown patches or tire marks, grass torn rather than clean cut.
Check:

• Cutting height set too low? Raise slightly.
• Are anti‑scalp wheels worn or missing? This model has anti‑scalp wheels standard.
• Are front caster wheels or front deck supports damaged? Inspect for wear.
• Is tire pressures correct and equal? Uneven pressures cause unstable deck ride.
• Is the terrain uneven or ridged? With a wide deck, ensure you’re mowing in a way that avoids deck contact with ground irregularities.

Summary

The Toro Z Master 2000 Series 52″ (Model 77283) is a strong, commercial‑grade zero‑turn mower built to cover large areas with efficiency. With its 52″ deck, 24.5 hp V‑Twin engine, and up to 10 mph transport speed, it's well suited for large residential lots or light commercial use, especially where you have several acres and relatively open space. To maximize its performance, plan your mowing pattern for long passes, adjust deck height according to turf conditions, keep blades sharp, maintain steady speed, and perform pre‑ and post‑mowing maintenance. When issues arise like uneven cuts, poor starting, or drive irregularities, you can troubleshoot via blade condition, deck cleanliness, engine/fuel system checks, transmission inspection, and tire/caster maintenance. With proper care and attention, this model can deliver efficient, high‑quality mowing results and long service life.
