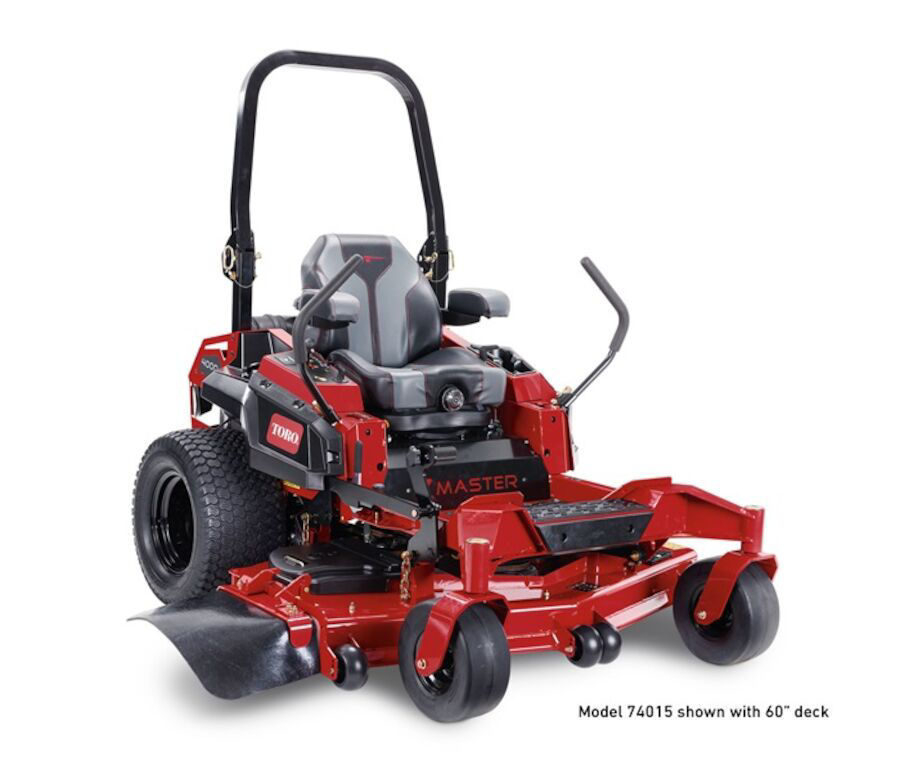

Toro 74010 Z-Master 4000 HDX Pro 52"

Toro 74010 Z-Master 4000 HDX Pro 52"

The Toro 74010 Z-Master 4000 HDX Pro 52" is a powerful, commercial-grade zero-turn mower built to handle large residential yards, estates, and commercial mowing jobs with ease. Equipped with a 31 HP Kawasaki FX921V 999cc engine and a 52-inch cutting deck, this mower offers the perfect blend of speed, power, and precision. It’s capable of mowing up to about 3 acres per hour under ideal conditions, making it highly efficient for properties between 1 and 6 acres, though it can easily manage more when terrain and obstacles allow. To achieve maximum efficiency, it’s important to maintain the mower properly and use it strategically before each mowing session, inspect and clean the underside of the deck to ensure optimal airflow and discharge, check the blade sharpness, confirm tire pressure, and top off fuel and oil levels. When mowing, use smooth, consistent passes that utilize the full width of the deck, avoid excessive overlapping, and mow at a steady speed suitable for grass thickness and terrain. Mowing when the grass is dry will also prevent clumping and help the mower perform at peak efficiency. After use, clean the deck, check for belt wear, and store the machine on a level surface to preserve its longevity. Troubleshooting for the Toro 74010 is generally straightforward: poor cuts typically point to dull blades or clogged decks, starting issues often trace back to bad fuel or dirty filters, and vibration problems can stem from bent spindles or damaged blades. Regular preventive maintenance such as oil and filter changes, blade sharpening, hydraulic fluid checks, and routine deck cleaning not only prevents costly repairs but also keeps the mower performing like new. Overall, the Toro 74010 stands out as a durable, efficient, and high-performance mower that, when properly maintained and operated, can dramatically reduce mowing time while producing a consistently professional-quality cut across large areas.

Yard-Size Capabilities

Here are the key specs of the Toro 74010 and what they mean in practice for how much yard/day you can cover.

Key Specs

• Deck width: 52 in (132 cm) cutting deck.
• Engine: Kawasaki FX921V, 999 cc, ~31 hp.
• Forward transport (ground) speed: Up to ~12 mph (19.3 km/h).
• Height of cut range: 1.5″ to 5.5″ (3.8 cm to 14 cm).

What this means for yard size

• The 52” deck is fairly large compared to standard residential mowers (which are often 42–48”), so you’ll cover more width per pass.
• With a top transport speed of ~12 mph, assuming you can keep a good pace and minimal stopping, you could cover quite a lot of acreage in a day (for example several acres). Of course, actual productive mowing speed will be lower because you’ll slow for turns, obstacles, slopes, etc.
• Because it’s more of a commercial/contractor-grade machine (“HDX Pro” designation) you’re better positioned for larger lots, small estates, or commercial mowing.

Estimate Example

If you assume:

• Effective cutting speed (including turns, overlaps, obstacle avoidance) maybe ~6-8 mph (half of transport speed)
• 52” deck (≈4.33 ft) means roughly 4.33 ft × speed × time coverage.
  Rough estimation: At 6 mph (5280 ft/mile × 6 = ~31,680 ft/hour) × 4.33 ft width = ~137,000 square feet/hour ≈ 3.15 acres/hour. Even if you reduce that by half for real‐world (obstacles, slope, debris) you might cover ~1.5 acres/hour. So, in a typical 3–4-hour session you might feasibly mow 4-6 acres depending on conditions.
  If your yard is say 1–3 acres, this machine is more than sufficient; if you have 5+ acres you’ll also be well equipped (assuming terrain is reasonable).

Suitability

• If you have a large residential lot (1-5 acres) and want to mow efficiently, this machine is a strong fit.
• If you have smaller lots (under ½ acre), this might be overkill (both cost and size).
• If your terrain is very rough, many trees/obstacles, small tight spaces: the size might make maneuvering tougher, so you’ll want to consider clearance, turning radius, and storage space.

How to Use for Best Efficiency

To get the most out of the 74010, both in terms of cutting quality and operational efficiency (fuel, time, wear), here are best practices:

Before mowing

• Inspect deck and blades: Ensure deck is clean (no built-up clippings underneath) so airflow and discharge are optimal. Sharp blades provide cleaner cuts, less stress on engine.
• Set proper height of cut: Use the foot-operated height of cut to set your desired cut. A higher height may reduce mowing time (less passes), but too high or too low can diminish lawn health. On large yards, you might raise height a little if you’re just “maintenance mow” rather than fine groom.
• Check fuel & oil: Full tank (10.5-gal capacity) gives you good run time. Use fresh fuel, proper oil level, check air filter is clean.
• Plan your mowing pattern: For zero turn mowers like this, plan wide passes where possible, avoid excessive overlapping, and navigate obstacles in an efficient route (rather than random criss-cross).
• Use full width of deck: Since you have 52” width, you’ll want to maximize the width when possible: cut in long straight runs rather than many small narrow passes.

During mowing

• Maintain steady forward speed: Don’t rush so much that the deck struggles, but don’t creep too slowly either. The deck was designed for up to high blade tip speeds (~18,500 ft/min) “so you can throw more grass”.
• Use appropriate height for conditions: If grass is tall or thick, you may want to raise the cut height slightly to reduce clogging and stress.
• Monitor grass/clipping flow and discharge: With a wider deck you’ll want to watch for clumping or poor discharge; stop and clear if clogs occur.
• Avoid unnecessary idling or backing: For efficiency, keep movement forward and avoid excessive turning/backing unless needed.
• Use anti-scalp rollers: This machine has dual capture anti-scallop rollers to help maintain cut quality on uneven terrain.
• Take breaks when needed: When mowing for long periods, check deck clearance, blades, tire pressure, fluid levels if needed.

After mowing

• Clean the deck: Remove grass build-up underneath to maintain airflow and deck performance.
• Check wear/tear: Inspect belts, blades, tires, and deck for damage.
• Refuel and top oil if needed.
• Store properly: Park on level surface, engage parking brake, clean machine to prevent corrosion.

Efficiency tips

• Mow when grass is dry: Wet grass upsets discharge and slows you down.
• Use the largest practical settings: higher height and wider passes reduce number of passes required.
• Regular maintenance pays in efficiency: sharp blades, clean filters, good tires = less time, less fuel.
• Avoid turns at full throttle near obstacles; decelerating for tight turns reduces wear and maintains clean cut edges.

Troubleshooting & Maintenance Tips

Here are some common issues users face with mowers (and applicable to the 74010) + how to troubleshoot.

Common Issues + Tips

• Poor cut / scalloped lawn edges: Could be dull blades, bent deck, worn anti-scalp rollers. Solution: sharpen or replace blades, inspect deck flatness, check rollers for damage.
• Clogging or grass build-up under deck: Could be due to low deck clearance, cutting too tall/thick grass, wet grass, or deck buildup. Clean deck underside, raise cut height, mow when grass is dry.
• Machine bogs down or slows under load: Could be dirty air filter, dull blades, or engine/transmission strain. Check air filter (this model uses heavy-duty Donaldson canister style), blades, and ensure transmission/hydraulics are functioning.
• Hydrostatic/transmission issues: Since this model uses integrated pumps & wheel motors (e.g., ZT-4400 / ZT-5400), if you notice reduced drive speed, odd noises, slipping, you may need to check hydraulic fluid, filters, wheel motors.
• Starting issues: If the engine doesn’t start or dies soon after starting, check fuel quality, spark plug, air filter, fuel filter.
• Uneven cut or deck vibrations: Could be bent spindle housing, worn bearings, loose bolts, deck imbalance. Check spindle housing (this model has 9-in diameter aluminum spindle housing)
• Tire or surface traction issues: Rear drive tires are turf 24” × 10.5-12” in this model. Make sure they’re properly inflated and not overly worn; caster tires should rotate freely. If you skid or slip, check tire pressure, surface slope, and adjust technique.

Preventive Maintenance Checklist

• Check and change engine oil as per manufacturer schedule.
• Replace/clean air filter regularly.
• Sharpen or replace blades each season (or sooner if lots of heavy mowing).
• Clean deck underside after every use or at least weekly.
• Inspect belts, pulleys, and spindles for wear.
• Check hydraulic fluid level and condition (for hydro drive) and follow service intervals.
• Check tire pressure and condition.
• Store with fuel stabilizer if you have long idle periods.
• Inspect for any loose bolts, wear, cracks in frame or deck.

Troubleshooting Quick Guide

Summary

The Toro 74010 is a very capable commercial-grade zero-turn mower with a 52” deck and strong engine. It’s well suited for larger residential properties or small acreages (1-5+ acres) especially if you want efficiency and high performance. To use it efficiently, keep blades sharp, clean the deck, plan your mowing pattern, and maintain proper settings. And like all machines of this size, good preventive maintenance goes a long way to avoid downtime or costly repairs.
