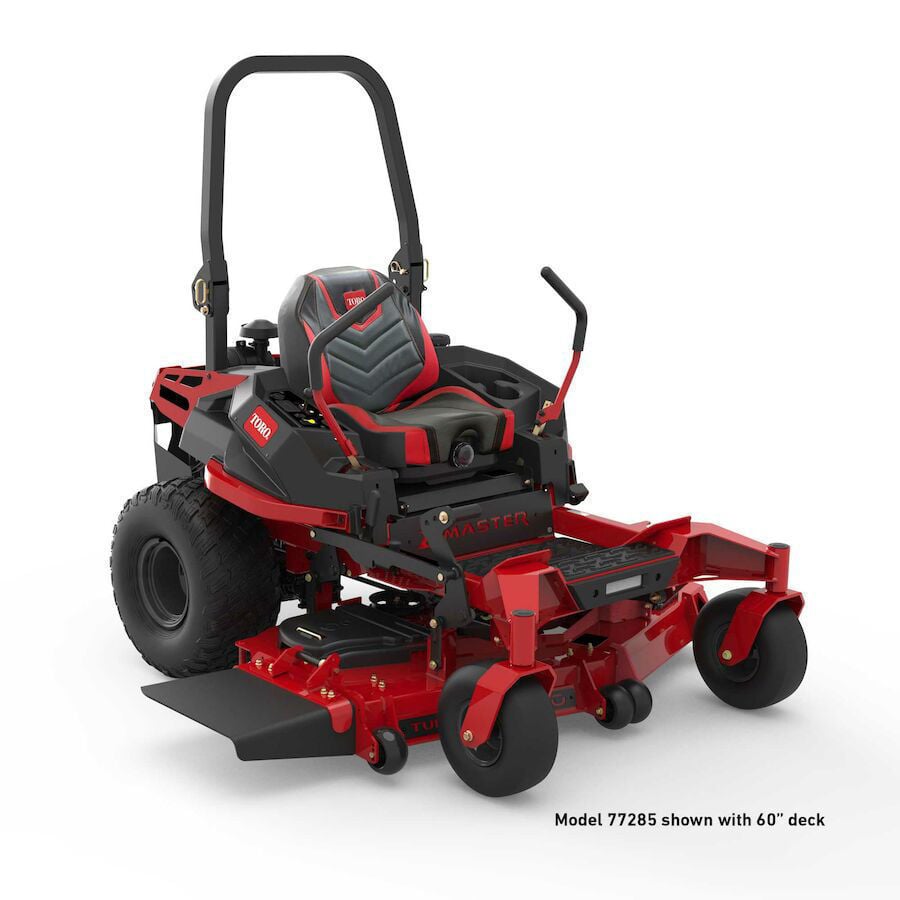

Toro 77281 Z Master 2000 Series
The Toro 77281 Z Master 2000 Series is a professional-grade zero-turn mower with a 48-inch cutting deck and a 24.5-horsepower V-Twin engine, designed for large residential yards or light commercial use, making it ideal for properties spanning multiple acres. Its 7-gallon fuel tank allows extended mowing sessions without frequent refueling, and the height-of-cut range from 1.5 to 5 inches in 0.25-inch increments provides flexibility for different turf types and mowing conditions. To achieve optimal efficiency, users should plan mowing patterns that minimize overlaps and tight turns, starting with perimeter passes and then mowing inner sections in long straight lines to take advantage of the zero-turn maneuverability. Maintaining a consistent mowing speed that balances deck performance and engine load, adjusting cutting height to suit grass thickness, and keeping blades sharp are essential for clean cuts and reduced machine stress. Pre-mowing checks such as inspecting blades, belts, deck clearance, tire pressure, fuel, and oil levels, as well as clearing debris from the mowing area, help prevent damage and downtime. Post-mowing care, including cleaning the deck underside, checking hydrostatic transmissions, belt tension, and tire pressure, ensures longevity and consistent performance. Common troubleshooting issues include uneven cuts caused by dull blades, clogged decks, or improper deck height; engine problems from old fuel, fouled spark plugs, or clogged air filters; and drive issues linked to hydrostatic transmission fluid, steering linkages, or worn caster bearings. Deck bounce or turf damage can often be mitigated by adjusting cut height, inspecting anti-scalp wheels, checking caster assemblies, and ensuring proper tire inflation. Given its commercial-grade components and weight, careful handling during transport and storage is recommended, and following the manufacturer’s maintenance schedule along with using resources such as the My Toro app will help maintain efficiency, performance, and safety, allowing the Toro 77281 to provide excellent mowing results across large lawns while reducing time and effort.
Yard‑Size & Capability
- Model 77281 features a 48‑inch (122 cm) cutting deck.
- Engine: 24.5 hp V‑Twin (708 cc) from Toro.
- Fuel capacity: 7 gallons / 26.5 liters.
- Forward transport speed up to ~10.0 mph (16.0 kph) in transport mode (per spec).
- Height of cut: 1.5″ – 5.0″ (3.8 – 12.7 cm) in 0.25″ increments.
Bottom line: This mower is built more toward professional / high‑end residential or light commercial use. With a 48″ deck and robust engine, it’s well suited for larger lawns; say multiple acres but if you have a smaller lot (e.g., half acre or acre) you might find the size / complexity to be more than you need. If you have 2‑5 acres (or more) this could be a very efficient machine.
How to Use It for Best Efficiency
Here are recommended practices to get the most out of this mower:
1. Plan your mowing pattern
- With a 48″ deck you’ll want to maximize straight runs, minimize overlaps and minimize tight turns.
- Start perimeter passes around the field, then inner passes in a “lawn‑strip” pattern.
- Use the zero‑turn capability to your advantage for contours, but when mowing large open stretches you’ll save time by mowing in long runs rather than constantly stopping/turning.
2. Adjust the cutting height appropriately
- The height range of 1.5″–5.0″ gives flexibility. For turf health and efficiency:
- Don’t cut extremely low unless turf type and conditions allow it; very low cuts stress the turf and may require slower mowing, more power, more passes.
- If conditions allow, keep the deck height moderate so you’re not overloading the deck.
- Ensure blades are sharp (a dull blade makes the machine work harder and results in poorer cut).
- Check deck discharge and airflow; design spec says 5.5″ deck depth, 7‑gauge steel TURBO FORCE® deck.
3. Maintain consistent speed
- While the transport speed is up to 10 mph, for mowing you likely will go slower to let the deck perform its job. Don’t try to rush so fast that you get a rough cut or missed strips.
- On thicker or wetter grass slow down a bit; the deck’s job is to cut cleanly, not necessarily at full throttle.
4. Pre‑mowing checks
- Check blades, belt condition, deck underside for debris.
- Ensure fuel level and fuel quality (old gas leads to issues).
- Check oil and other engine service items per manual.
- Clear large sticks, branches, obstacles, a 48″ deck covers a lot of ground fast but hitting obstacles can damage deck/spindles.
5. Post‑mow cleaning & care
- Clean underside of deck if grass buildup occurs, this can reduce airflow and deck performance.
- Regularly inspect hydrostatic transmissions, belt tension, deck height adjustments and tire pressure.
- Store machine properly: since it has commercial‑grade components you want to keep it maintained for longevity.
Common Troubleshooting Tips
Here are tips and checks for common issues. (These are general and you should still consult the official service manual.)
Issue: Poor cut quality / missed strips
Symptoms: Uneven cut, areas of grass uncut, clumps of grass.
Possible causes & actions:
- Blades too dull or damaged → sharpen or replace.
- Deck underside clogged → clean out.
- Height of cut too low or too high for turf/condition → adjust.
- Uneven ground or caster wheels worn or deck hanging incorrectly → inspect wheels and deck mounting.
- Belt slipping or worn → check belts.
- Since this is a professional‑grade mower, if you see steering drift or uneven patterns check the steering levers/controls for calibration.
Issue: Engine not starting or running poorly
Symptoms: Hard to start, sputtering, dies after few minutes.
Possible causes & actions:
- Old or contaminated fuel.
- Spark plug fouled or bad; check and replace.
- Air filter clogged; check and replace heavy‑duty filter.
- Carburetor/fuel line issues especially if machine has sat idle.
- Oil level too low or oil quality bad.
- Safety interlocks (seat switch, blade engage) may not be engaged.
Issue: Drive/transmission problems
Symptoms: No forward or reverse drive, uneven drive speed, slipping, weird noises.
Possible causes & actions:
- For this machine: Hydro‑Gear ZT‑3400 transmissions.
- Check fluid level/condition for hydro‑gear units (if applicable).
- Check the steering linkage and levers.
- Worn caster bearings or rear drive tires can cause drive issues.
- If one side moves faster/slower than the other, you may have a calibration or hydro issue.
Issue: Deck bounce, scalping or turf damage
Symptoms: Deck bouncing, turf brown patches, excessive wheel/tire marks.
Possible causes & actions:
- Anti‑scalp wheels may be worn or missing this model lists anti‑scalp wheels standard.
- Cutting height too low for the terrain type → raise a bit.
- Caster assembly issues (worn front/yoke).
- Tire pressure variation between front and rear.
- Uneven terrain with deck not weighted correctly.
Summary
If you own (or are considering) the Toro 77281 Z Master 2000 Series, you have a capable machine that’s more than adequate for large residential lots or light commercial use: a 48″ deck, commercial‑grade hydro transmissions, and a powerful engine. To use it effectively: plan your pattern to reduce wasted time, adjust deck height to turf conditions, keep blades sharp, mow at sensible speeds, and perform pre‑ and post‑mow maintenance to keep it efficient and durable. For any performance issues, follow the troubleshooting guidelines above. With good care this mower can deliver excellent results and save you time on big properties.
