35cc Honda Mini 4-Stroke OHC Engine Free Shipping Continental U.S. Only
SKU: 647160
Free shipping
Manufacturer: Honda Engines
$231.25

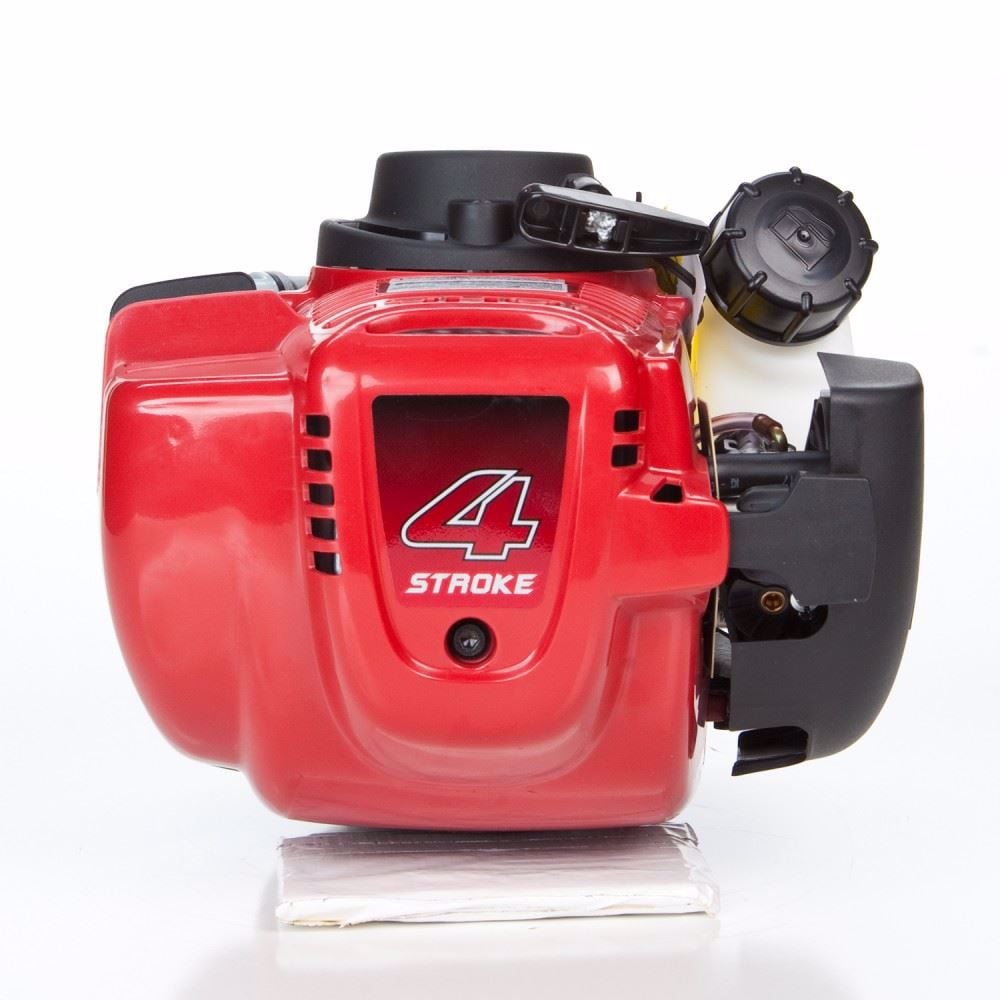

GX35 S33 Honda Mini 4-Stroke OHC Horizontal Engine

Features Include:

  • 35cc, net 1.3HP engine
  • Recoil Start
  • 50-State CARB compliant
  • 4-stroke, full 360 degree operation



Warranty 24 Months Private Residential; 12 Months Commercial,Rental,Institutional
Displacement Range 25cc - 120cc
Engine Brand Honda OHC
Crankshaft Diameter N/A
Crankshaft Length N/A
Crankshaft End Tapped Size N/A
Crankshaft Keyway Width None
Air Cleaner Type Foam Element
Throttle Control Manual
Starter Type Recoil
PTO Height N/A
Max RPM 7000
Oil Cooler No
Carburetor Type Diaphragm
Valve Style OHC
Recoil Starter Position 9:00 O'Clock
Displacement 35.8cc
Ignition System Transistorized Magneto
Lubrication System Crankcase Pressure-Driven
Oil Capacity 3.4
Muffler Yes
Fuel System Gasoline
Governor System N/A
Gear Reduction No
Charging System None
Choke Control Manual
Cooling System Air
Type Small Engines
Fuel Pump No
Auxiliary PTO No
Compression Release Yes
MFG Rated Output 1.3 Net HP
CPSC Compliant No
Low Oil Shutdown No
Low Oil Alert/Shutdown No
Compression Ratio 8.0:1
Extended Recoil Rope No
Oil Filter No
Bolt Circle (in.) None
Crankshaft Type N;A - Clutch Attached
Oil Pump No
Fuel Filter Yes
Control Box No
Cylinders (quantity) 1
Cylinder Bore Type Aluminum Alloy
Bore x Stroke 39 x 30 mm
Crankshaft Style Horizontal
For Use in California Yes
Crankshaft Rotation Direction (from PTO Shaft Side) Counterclockwise
Fuel Tank Capacity 0.67
Color Red
