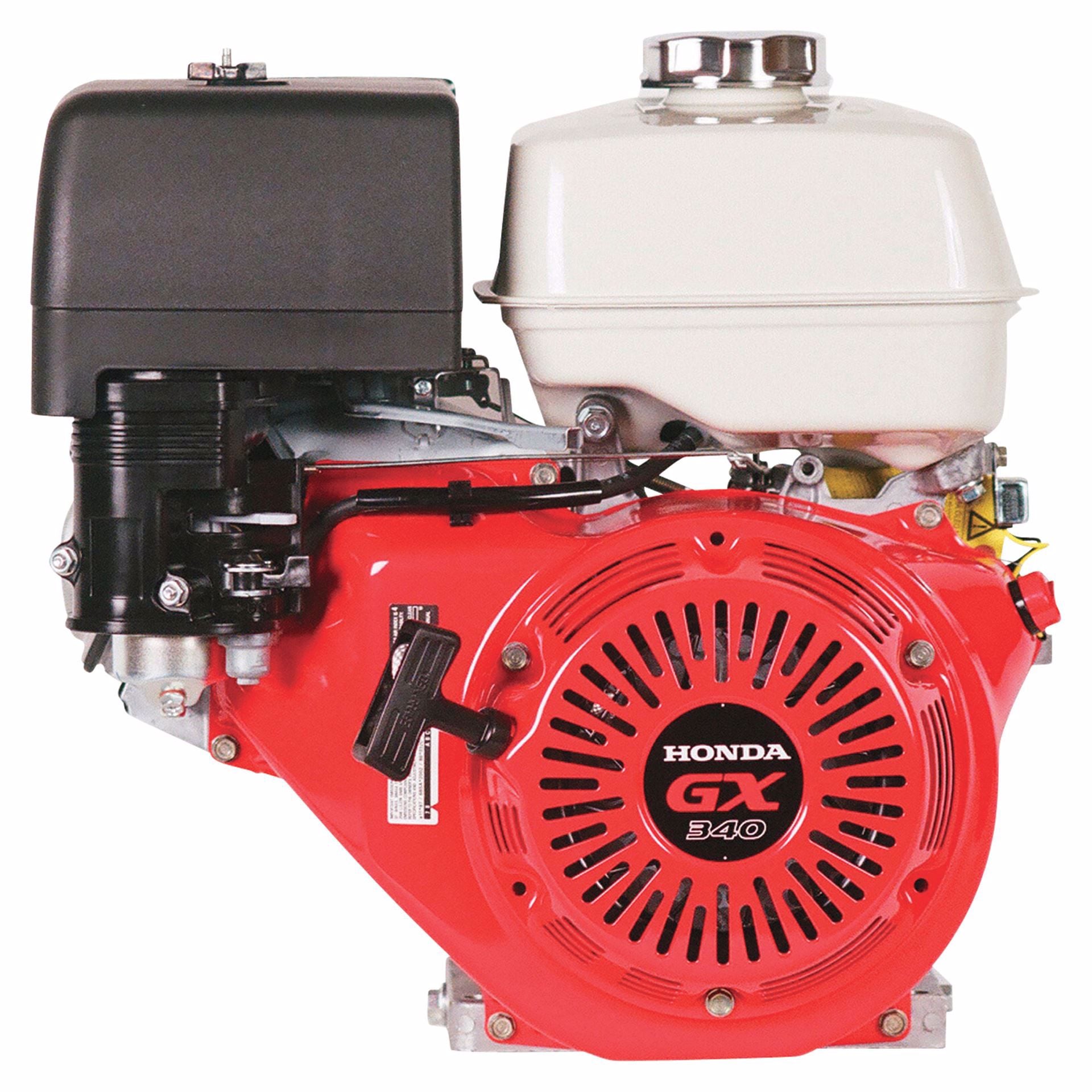

GX340 QA2 Honda OHV Engine - FREE SHIPPING

Manufacturer: Honda Engines
389cc Honda OHV Engine Free Shipping Continental U.S. Only ***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***
SKU: 664550
Availability: Out of stock
$660.00
i h
Free shipping

GX340 QA2 Honda Horizontal OHV Engine - FREE SHIPPING CONTINENTAL U.S. ONLY

The Next Generation of GX Engines.

With the GX340, you’re looking at one of the best engines in the business. More power. Quieter performance. Lower fuel consumption. Lower emissions. Better features. Exceptional performance. Honda’s GX series lives up to the legend, and then some.

Features Include:

  • 389cc, net 10.7HP
  • 1" x 3 31/64" shaft, 1/4" keyway
  • Recoil Start
  • Standard muffler with spark arrestor, exhaust pipe protector and deflector
  • Oil alert
  • 49-State CARB compliant

***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***


Warranty3 year limited warranty
Ship Weight85.0 lbs
Engine Displacement (cc)389
Start TypeRecoil
ApplicationChipper, shredder, log splitter, compressor
Engine TypeGX series OHV commercial-duty
Net Power Output (HP)10.7 (8.0 kW) at 3,600 RPM
Net Torque (lbs./ft.)19.5 (26.4 Nm) at 2,500 RPM
Shaft OutputHorizontal
CrankshaftQ-type
Shaft Diameter (in.)1
Shaft Length (in.)3 31/64
Shaft Keyway (in.)1/4
Shaft End Tapped (Diameter (in.)/Threads per inch)7/16-20
Shaft Rotation (From PTO Shaft Side)Counterclockwise
PTO Height (in.)5 1/4
Cylinders (qty.)1
Cylinder BoreCast iron
Bore x Stroke (in.)3.2 x 2.5
Compression Ratio8.2:1
Cooling SystemAir cooled
Air Cleaner TypeDual element
Fuel TankStandard (White)
Fuel TypeGasoline
Fuel Tank Capacity (qt.)6.4
Fuel FilterFuel tank filler neck strainer
Oil Capacity (qt.)1.16
Lubrication SystemForced splash
Low Oil AlertYes
Low Oil ShutdownYes
Ignition SystemElectronic
Governor SystemCentrifugal mechanical
CarburetorFloat, external vent
Throttle ControlManual
Choke ControlManual
Max. RPM3,600
Muffler IncludedStandard, exhaust pipe protector, deflector
Auto Compression ReleaseYes
Bolt Circle (in.)5, 6 1/2
Mounting Base L x W (in.)7 11/16 x 3 25/64–4 1/16
Dimensions L x W x H (in.)15 x 16 7/8 x 16 1/8
EPA/CARB Approval (California Air Resource Board)No

Products specifications
Product TypeParts
Engine BrandHonda®
