    GX240 HA2 Honda OHV Engine w/ Gear Reduction - FREE SHIPPING

    Manufacturer: Honda Engines
    270cc Honda OHV Engine w/6:1 Gear Reduction NO CLUTCH Free Shipping Continental U.S. Only ***ENGINE IS NOT CARB COMPLIANT IN ALL STATES***
    SKU: 664430
    Availability: 19 in stock
    i h
    Free shipping

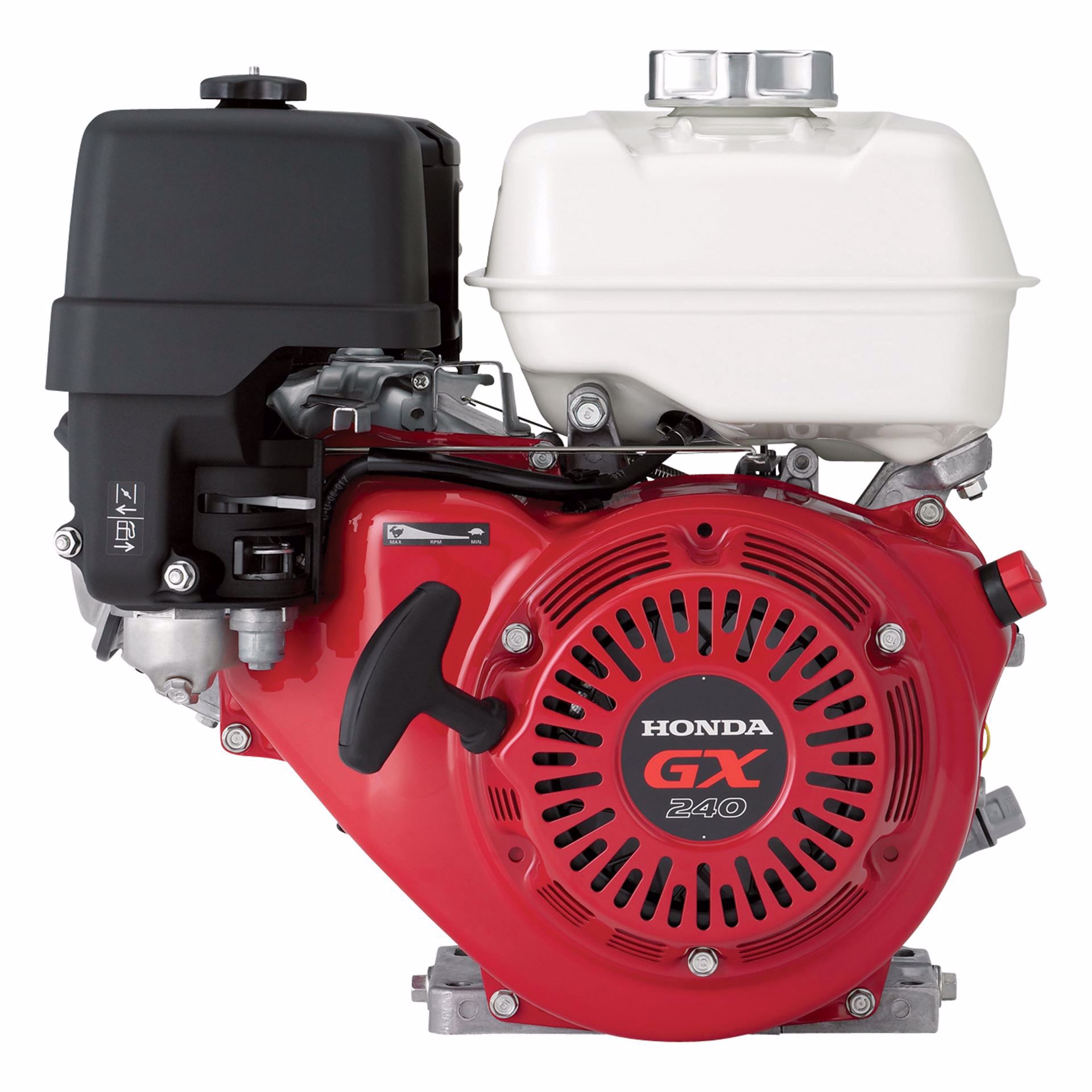

    GX240 HA2 Honda Horizontal OHV Engine w/6:1 Gear Reduction - FREE SHIPPING

    Honda GX240 HA2 (GX240UT2HA2) horizontal OHV 6:1 gear reduction engine is 270cc and puts out 7.9 net HP. This Honda GX has a 1" x 3.37" crankshaft. The engine has recoil start, a standard muffler with exhaust pipe protector and spark arrestor, and an oil alert system, but no clutch. Honda GX240 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Applications requiring lower speeds are ideal for gear reduction engines.

    Features Include:

    • 270cc, net 7.9HP
    • 1" x 3 5/32" shaft
    • 6:1 Gear Reduction NO CLUTCH
    • Recoil Start
    • Standard muffler with spark arrestor, exhaust pipe protector and deflector
    • Oil alert
    • 49-State CARB compliant


    Warranty36 Months Private Residential; 36 Months Commercial,Rental,Institutional
    Displacement Range241cc - 390cc
    Engine BrandHonda OHV
    Crankshaft Diameter1"
    Crankshaft Length3.37"
    Crankshaft End Tapped SizeN/A
    Crankshaft Keyway Width1/4"
    Air Cleaner TypeDual Element
    Throttle ControlManual
    Starter TypeRecoil
    PTO Height4-11/64
    Max RPM3600
    Oil CoolerNo
    Carburetor TypeFloat
    Valve StyleOHV
    Recoil Starter Position9:00 O'Clock
    Ignition SystemDigital CDI with Variable Ignition Timing
    Lubrication SystemSplash
    Oil Capacity38
    Fuel SystemGasoline
    Governor SystemCentrifugal Mass Type
    Gear Reduction6:1
    Charging SystemNone
    Choke ControlManual
    Cooling SystemAir
    TypeSmall Engines
    Fuel PumpNo
    Auxiliary PTONo
    Compression ReleaseYes
    MFG Rated Output7.9 Net HP
    CPSC CompliantNo
    Low Oil ShutdownYes
    Low Oil Alert/ShutdownNo
    Compression Ratio8.5:1
    Extended Recoil RopeNo
    Oil FilterNo
    Bolt Circle (in.)None
    Crankshaft TypeGear Reduction
    Oil PumpNo
    Fuel FilterYes
    Control BoxNo
    Cylinders (quantity)1
    Cylinder Bore TypeCast Iron
    Bore x Stroke73 x 58 mm
    Crankshaft StyleHorizontal
    For Use in CaliforniaNo
    Crankshaft Rotation Direction (from PTO Shaft Side)Counterclockwise
    Fuel Tank Capacity5.6

    Products specifications
    Product TypeParts
    Engine BrandHonda®
