160cc Honda OHV Engine w/ Electric Start Free Shipping Continental U.S. Only
SKU: 656660
Free shipping
Manufacturer: Honda Engines
$510.00

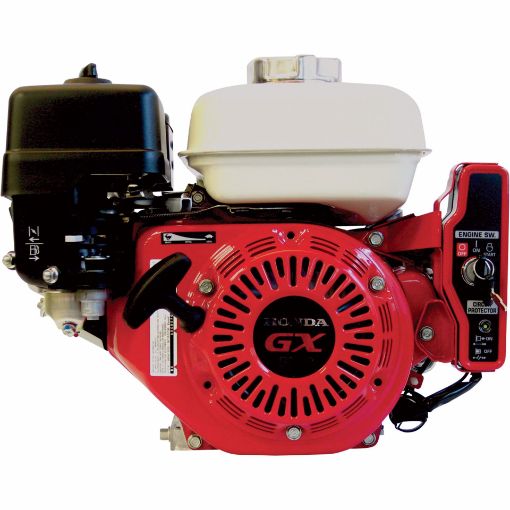

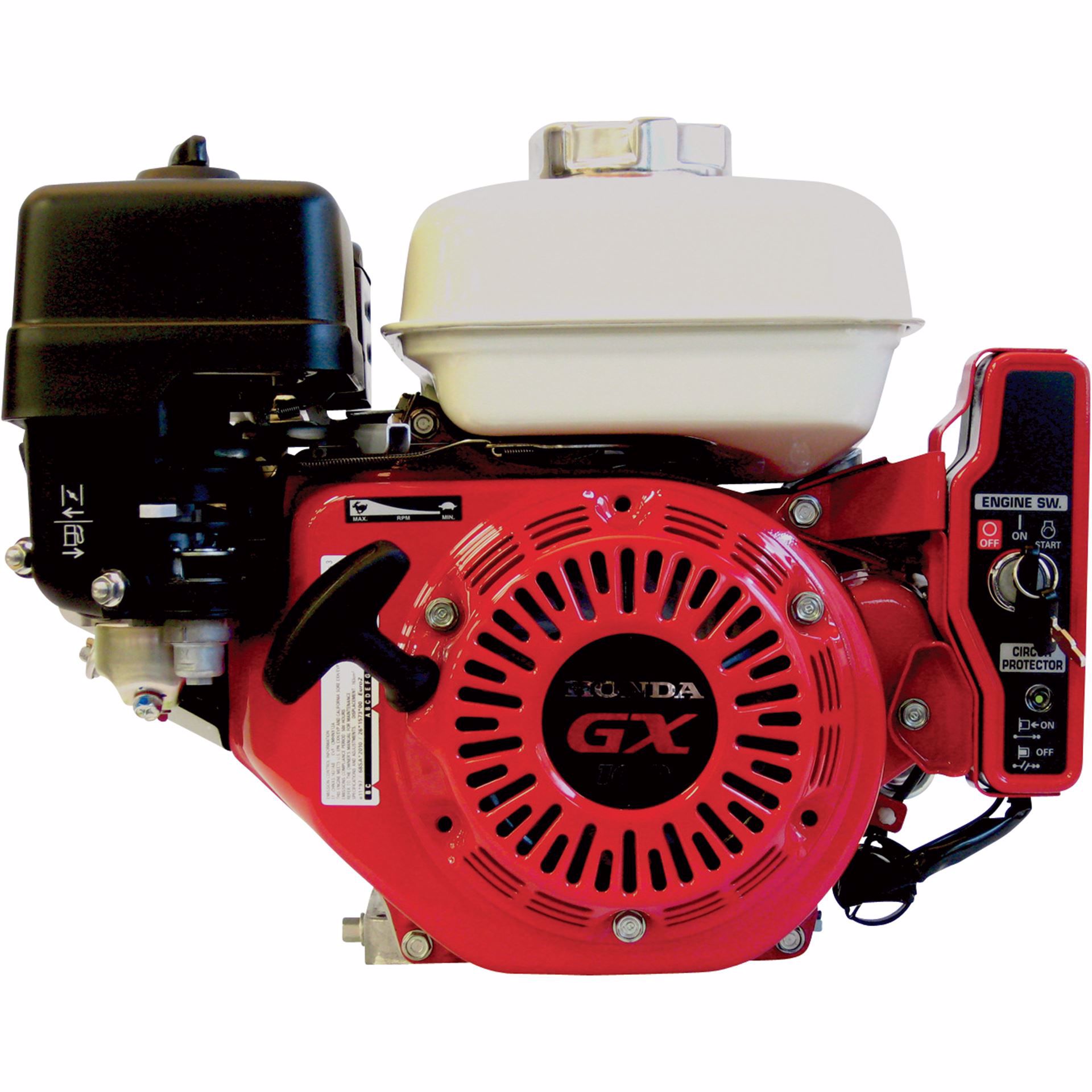

GX160 QXE2 Honda Horizontal OHV Engine w/ Electric Start

Honda GX160 QXE2 (GX160UT2QXE2) horizontal OHV engine is 160cc and puts out 4.8 net HP. This Honda GX has a 3/4" x 2-7/16" crankshaft (Tapped 5/16-24). The engine has 12V DC motor electric start, a 1-amp charging system, oil alert system, key switch, standard muffler and fuel tank. Honda GX160 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Common applications for this engine include water pumps, agricultural equipment, tillers, generators, industrial equipment, pressure washers and more.

Features Include:

  • 160cc, net 4.8HP
  • 3/4" x 2-7/16" crank, 3/16" keyway, tapped 5/16-24
  • Electric start
  • Standard muffler
  • Oil alert
  • 50-State CARB compliant
 Manufacturer's Warranty
  3 year limited warranty
Ship Weight 45.0 lbs
Engine Displacement (cc) 163
Start Type Electric w/recoil backup
Application Pressure washer, compressor, generator, water pump
Engine Type GX series OHV commercial-duty
Net Power Output (HP) 4.8 (3.6 kW) at 3,600 RPM
Net Torque (lbs./ft.) 7.6 (10.3 Nm) at 2,500 RPM
Shaft Output Horizontal
Crankshaft Q-type
Shaft Diameter (in.) 3/4
Shaft Length (in.) 2 7/16
Shaft Keyway (in.) 3/16
Shaft End Tapped (Diameter (in.)/Threads per inch) 5/16–24
Shaft Rotation (From PTO Shaft Side) Counterclockwise
PTO Height (in.) 4 11/64
Cylinders (qty.) 1
Cylinder Bore Cast iron
Bore x Stroke (in.) 2.7 x 1.8
Compression Ratio 9:1
Cooling System Air cooled
Air Cleaner Type Dual element
Fuel Tank Standard (White)
Fuel Type Gasoline
Fuel Tank Capacity (qt.) 3.3
Oil Capacity (qt.) 0.61
Lubrication System Forced splash
Low Oil Shutdown Yes
Ignition System Electronic
Governor System Centrifugal mechanical
Carburetor Float, external vent
Throttle Control Remote (wire)
Choke Control Manual
Max. RPM 3,600
Charging System Amps 1
Muffler Included Yes, (standard)
Auto Compression Release Yes
Bolt Circle (in.) 3 5/8
Mounting Base L x W (in.) 6 3/8 x 3 5/32 to 3 11/32
Dimensions L x W x H (in.) 12 x 13 3/8 x 12 1/2
EPA/CARB Approval (California Air Resource Board) Yes












GX160 QXE2 Honda Horizontal OHV Engine w/ Electric Start

Honda GX160 QXE2 (GX160UT2QXE2) horizontal OHV engine is 160cc and puts out 4.8 net HP. This Honda GX has a 3/4" x 2-7/16" crankshaft (Tapped 5/16-24). The engine has 12V DC motor electric start, a 1-amp charging system, oil alert system, key switch, standard muffler and fuel tank. Honda GX160 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Common applications for this engine include water pumps, agricultural equipment, tillers, generators, industrial equipment, pressure washers and more.

Features Include:

  • 160cc, net 4.8HP
  • 3/4" x 2-7/16" crank, 3/16" keyway, tapped 5/16-24
  • Electric start
  • Standard muffler
  • Oil alert
  • 50-State CARB compliant
 Manufacturer's Warranty
  3 year limited warranty
Ship Weight 45.0 lbs
Engine Displacement (cc) 163
Start Type Electric w/recoil backup
Application Pressure washer, compressor, generator, water pump
Engine Type GX series OHV commercial-duty
Net Power Output (HP) 4.8 (3.6 kW) at 3,600 RPM
Net Torque (lbs./ft.) 7.6 (10.3 Nm) at 2,500 RPM
Shaft Output Horizontal
Crankshaft Q-type
Shaft Diameter (in.) 3/4
Shaft Length (in.) 2 7/16
Shaft Keyway (in.) 3/16
Shaft End Tapped (Diameter (in.)/Threads per inch) 5/16–24
Shaft Rotation (From PTO Shaft Side) Counterclockwise
PTO Height (in.) 4 11/64
Cylinders (qty.) 1
Cylinder Bore Cast iron
Bore x Stroke (in.) 2.7 x 1.8
Compression Ratio 9:1
Cooling System Air cooled
Air Cleaner Type Dual element
Fuel Tank Standard (White)
Fuel Type Gasoline
Fuel Tank Capacity (qt.) 3.3
Oil Capacity (qt.) 0.61
Lubrication System Forced splash
Low Oil Shutdown Yes
Ignition System Electronic
Governor System Centrifugal mechanical
Carburetor Float, external vent
Throttle Control Remote (wire)
Choke Control Manual
Max. RPM 3,600
Charging System Amps 1
Muffler Included Yes, (standard)
Auto Compression Release Yes
Bolt Circle (in.) 3 5/8
Mounting Base L x W (in.) 6 3/8 x 3 5/32 to 3 11/32
Dimensions L x W x H (in.) 12 x 13 3/8 x 12 1/2
EPA/CARB Approval (California Air Resource Board) Yes
