160cc Honda OHV Engine Free Shipping Continental U.S. Only
SKU: 661810
Free shipping
Manufacturer: Honda Engines
$435.00

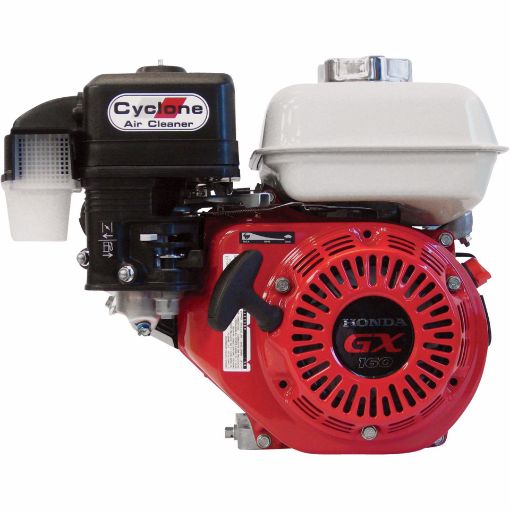

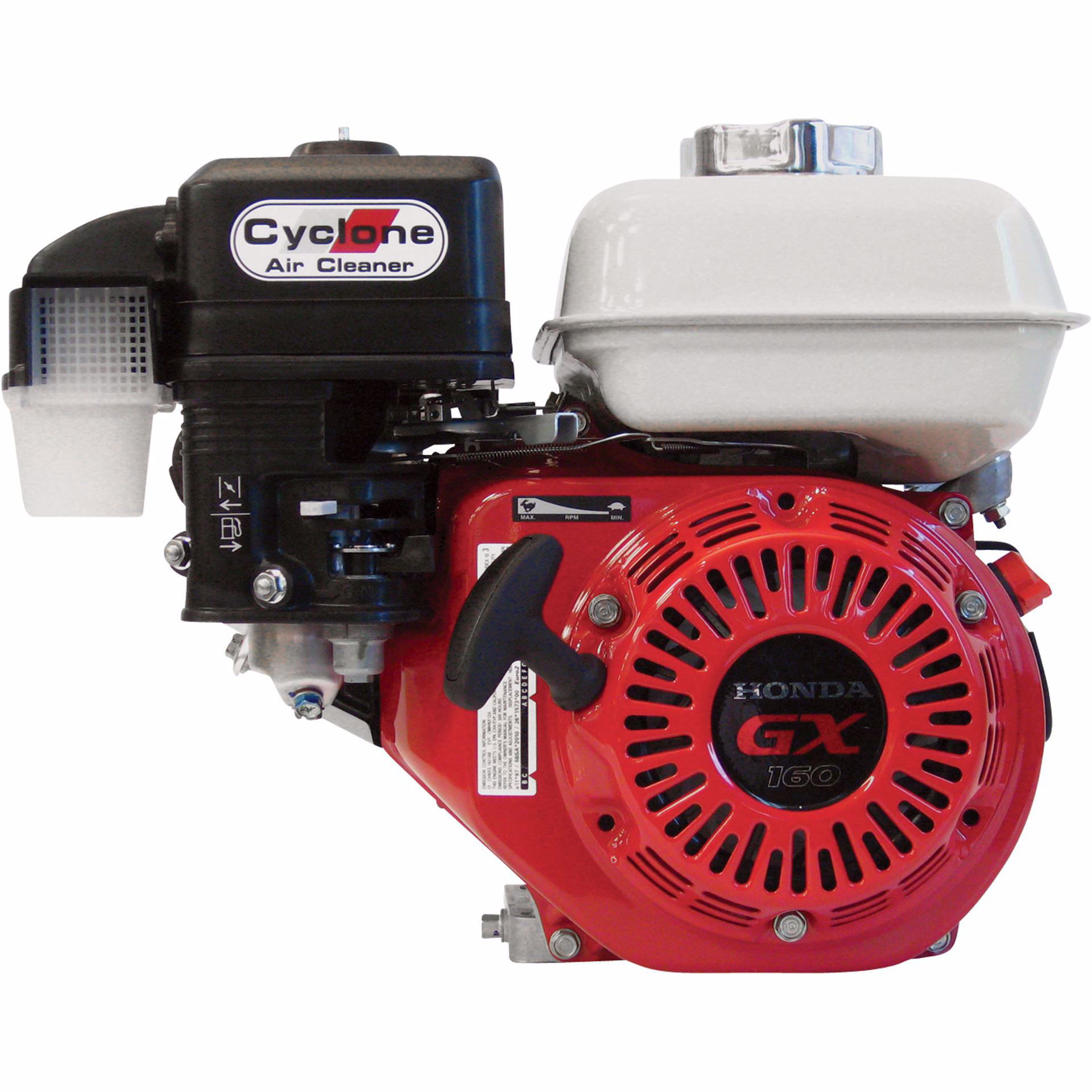

GX160 QC9 Honda Horizontal OHV Engine w/Cyclone Air Cleaner

GX160-QXC9 is an OHV horizontal shaft lightweight engine. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life.

Common uses include powering: air compressors, generators, pumps, pressure washers, reel-type mowers, cement trowels, and construction equipment.

Features Include:



  • 160cc, net 4.8HP
  • 3/4"" x 2 7/16" crankshaft, 3/16" keyway, tapped 5/16-24
  • Fuel Tank
  • Oil alert
  • 50-State CARB compliant
 Warranty 3 year limited warranty
Ship Weight 40.0 lbs
Engine Displacement (cc) 163
Start Type Recoil
Application Pressure washer, compressor, log splitter, chipper/shredder
Engine Type GX series OHV commercial-duty
Net Power Output (HP) 4.8 (3.6 kW) at 3,600 RPM
Net Torque (lbs./ft.) 7.6 (10.3 Nm) at 2,500 RPM
Shaft Output Horizontal
Crankshaft Q-type
Shaft Diameter (in.) 3/4
Shaft Length (in.) 2 7/16
Shaft Keyway (in.) 1/4
Shaft End Tapped (Diameter (in.)/Threads per inch) 5/16–24
Shaft Rotation (From PTO Shaft Side) Counterclockwise
PTO Height (in.) 4 11/64
Cylinders (qty.) 1
Cylinder Bore Cast iron
Bore x Stroke (in.) 2.7 x 1.8
Compression Ratio 9:1
Cooling System Air cooled
Air Cleaner Type Cyclone
Fuel Tank Standard (White)
Fuel Type Gasoline
Fuel Tank Capacity (qt.) 3.3
Fuel Filter Fuel tank filler neck strainer
Oil Capacity (qt.) 0.59
Lubrication System Forced splash
Low Oil Shutdown Yes
Ignition System Electronic
Governor System Centrifugal mechanical
Carburetor Float, inner vent
Throttle Control Remote (cable)
Choke Control Manual
Max. RPM 3,600
Muffler Included Yes, (silent type, spark arrester, deflector)
Auto Compression Release Yes
Bolt Circle (in.) 3 5/8
Mounting Base L x W (in.) 6 3/8 x 3 5/32 to 3 11/32
Dimensions L x W x H (in.) 12 x 13 3/8 x 12 1/2
EPA/CARB Approval (California Air Resource Board) Yes











GX160 QC9 Honda Horizontal OHV Engine w/Cyclone Air Cleaner

GX160-QXC9 is an OHV horizontal shaft lightweight engine. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life.

Common uses include powering: air compressors, generators, pumps, pressure washers, reel-type mowers, cement trowels, and construction equipment.

Features Include:



  • 160cc, net 4.8HP
  • 3/4"" x 2 7/16" crankshaft, 3/16" keyway, tapped 5/16-24
  • Fuel Tank
  • Oil alert
  • 50-State CARB compliant
 Warranty 3 year limited warranty
Ship Weight 40.0 lbs
Engine Displacement (cc) 163
Start Type Recoil
Application Pressure washer, compressor, log splitter, chipper/shredder
Engine Type GX series OHV commercial-duty
Net Power Output (HP) 4.8 (3.6 kW) at 3,600 RPM
Net Torque (lbs./ft.) 7.6 (10.3 Nm) at 2,500 RPM
Shaft Output Horizontal
Crankshaft Q-type
Shaft Diameter (in.) 3/4
Shaft Length (in.) 2 7/16
Shaft Keyway (in.) 1/4
Shaft End Tapped (Diameter (in.)/Threads per inch) 5/16–24
Shaft Rotation (From PTO Shaft Side) Counterclockwise
PTO Height (in.) 4 11/64
Cylinders (qty.) 1
Cylinder Bore Cast iron
Bore x Stroke (in.) 2.7 x 1.8
Compression Ratio 9:1
Cooling System Air cooled
Air Cleaner Type Cyclone
Fuel Tank Standard (White)
Fuel Type Gasoline
Fuel Tank Capacity (qt.) 3.3
Fuel Filter Fuel tank filler neck strainer
Oil Capacity (qt.) 0.59
Lubrication System Forced splash
Low Oil Shutdown Yes
Ignition System Electronic
Governor System Centrifugal mechanical
Carburetor Float, inner vent
Throttle Control Remote (cable)
Choke Control Manual
Max. RPM 3,600
Muffler Included Yes, (silent type, spark arrester, deflector)
Auto Compression Release Yes
Bolt Circle (in.) 3 5/8
Mounting Base L x W (in.) 6 3/8 x 3 5/32 to 3 11/32
Dimensions L x W x H (in.) 12 x 13 3/8 x 12 1/2
EPA/CARB Approval (California Air Resource Board) Yes
