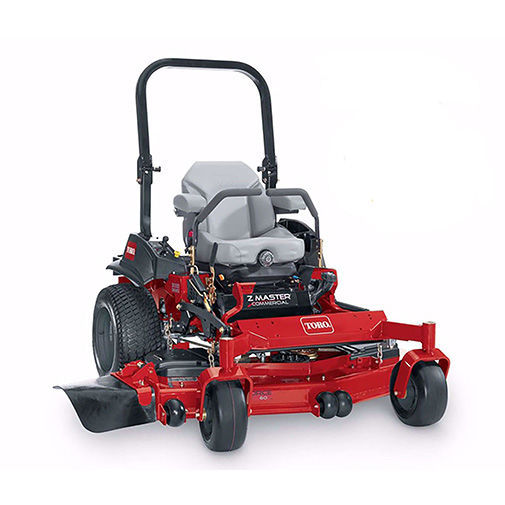

Toro 74054 Z Master 4000 Series
The Toro 74054 Z Master 4000 Series is a commercial-grade zero-turn mower equipped with a 60-inch TURBO FORCE cutting deck, a 25.5-horsepower Kawasaki FX801V 852cc engine, and a 10-gallon fuel capacity, making it a powerhouse machine built for efficiency, durability, and precision across large properties. Designed for mowing expansive residential lawns, estates, or commercial grounds of 2 to 5 acres or more, it delivers exceptional productivity thanks to its wide deck, high-speed capability of up to 12 mph, and heavy-duty 7-gauge steel construction that ensures strength and longevity in demanding conditions. The cutting height can be adjusted from 1.5 to 5.5 inches in quarter-inch increments, allowing for flexibility in different turf conditions and seasonal variations. To achieve the best efficiency, operators should plan mowing routes strategically, starting with perimeter passes before moving to long, straight interior lines that minimize overlap and tight turns, making full use of the zero-turn radius for maneuverability. Maintaining sharp, balanced blades and adjusting cutting height based on grass thickness and moisture are crucial for clean, even cuts that minimize stress on both the engine and turf. Pre-mowing inspections, including checking blade sharpness, belt condition, deck cleanliness, tire pressure, and fluid levels, as well as clearing debris from the mowing area, can prevent unnecessary wear and downtime. After mowing, cleaning the deck underside to prevent buildup, checking hydrostatic transmissions, steering linkages, belts, and pulleys, and maintaining proper tire pressure will preserve the mower’s longevity and ensure consistent performance. Common troubleshooting issues include uneven cuts from dull blades, clogged decks, or worn anti-scalp rollers; engine problems from stale fuel, dirty air filters, or fouled spark plugs; and traction or drive irregularities caused by low hydrostatic fluid, uneven tire pressure, or misaligned steering controls. Deck bounce or turf damage can be addressed by adjusting cutting height, inspecting anti-scalp rollers and caster wheels, and confirming that tire pressures are balanced. With its commercial-grade Hydro-Gear ZT-4400 transmissions, 26-inch Voodoo Trac drive tires, and durable frame, the Toro 74054 is designed to deliver top-tier power, reliability, and efficiency for large, open lawns. When properly maintained and operated with planned mowing patterns and routine care, it consistently delivers a superior cut, reduced mowing time, and extended equipment life, making it one of Toro’s most capable machines for serious property owners and professionals alike.
Yard-Size Capabilities
This model comes equipped with a 60-inch (152 cm) cutting deck made from 7-gauge high-strength steel (TURBO FORCE® design). It’s powered by a 25.5 hp Kawasaki FX801V (852 cc) engine with a heavy-duty air cleaner. Fuel capacity is approximately 10 gallons (≈37.8 L). Forward/transport speed is rated up to about 12 mph (19.3 kph). Height of cut ranges from 1.5″ to 5.5″ (3.8–14.0 cm).
Because of the wide deck and strong engine/transmission package (uses ZT-4400 hydrostatic drives), this mower is very well suited for large properties; multiple acres, open lawns, fewer tight corners. If you have, say 2 to 5 acres or more, especially with open space, this machine will let you cover ground quickly. On the other hand, if your yard is very small (less than 1 acre) or full of many tight turns, narrow gates, heavy landscaping obstacles, the wide 60″ deck may be less maneuverable and possibly slower in those conditions.
How to Use It for Best Efficiency
To get the most from the 74054 and make your mowing as efficient as possible:
- Plan your mowing pattern: With a 60″ deck you’ll cover a lot in one pass, so start with the perimeter of your lawn, then work inward with long straight runs rather than many short zigzags. Reduce overlap and minimize unnecessary turns which waste time and fuel.
- Set cutting height & maintain blades: Choose a height suitable to your turf type and current conditions. If you go too low unnecessarily, you’ll stress the grass and the equipment. Ensure blades are sharp and balanced; dull blades reduce cut quality and increase engine and deck load.
- Maintain a reasonable mowing speed: Although the machine will transport at up to ~12 mph, when cutting you often won’t go full speed; slowing down slightly on thick/damp grass ensures a cleaner cut and avoids missed strips or extra load.
- Pre-mowing checks: Inspect blades, deck underside for clogs, belt condition, check tire pressures (drive and casters), ensure fuel and oil levels are correct, and clear the yard of debris, sticks, stones; a wide deck brings increased risk of damage if you hit something.
- Post-mow maintenance & care: After mowing, clean the underside of the deck (grass buildup will reduce performance and airflow). Check belt tension, pulleys/spindles, hydrostatic drive system, steering controls and linkages. Check tire wear and pressure. Proper storage when idle is also important.
Easy Troubleshooting Tips
Here are some common issues with this type of mower and what to check:
- Uneven cut / missed strips: If the lawn has areas that look uneven, stripes, or grass uncut: check for dull or damaged blades; inspect deck underside for buildup of grass or debris; verify deck height isn’t set too low (causing scalping) or too high (leaving uncut grass); verify anti-scalp rollers and caster wheels/front supports are in good condition.
- Engine hard to start or runs poorly: Possible causes include old/stale fuel; fouled spark plug; dirty or clogged air filter (this engine has heavy-duty air cleaner); low or dirty oil; safety interlocks not engaged (seat switch, PTO engage/disengage).
- Drive/transmission issues: If one side seems slower, machine drifts won’t go smooth: check hydrostatic drives (ZT-4400) for fluid condition/level; check rear drive tire condition/pressure (drive tires are Voodoo Trac 26″ x 12″); make sure steering linkages and adjustment are correct; check for worn caster bearings.
- Deck bounce/scalping/turf damage: If you see the deck bouncing, turf getting torn, or uneven patches: check cutting height (raise if too aggressive); inspect anti-scalp rollers (should be present); check caster/front wheels condition and tire pressures front vs rear; ensure terrain is suitable and you’re not cutting too low on rough ground.
Summary
In summary, the Toro 74054 Z-Master 4000 Series (60″) is a high-capacity, robust zero-turn mower built for large lawns and open acreage. Its wide 60″ deck, strong engine and hydrostatic drive system make it ideal when you have several acres and want to cover ground efficiently. For best results you’ll plan your passes to minimize wasted time, keep blades sharp, use the appropriate cutting height, perform pre- and post-mow checks, and address any performance issues quickly with the troubleshooting checks above. With the right care, this mower can deliver excellent cut quality, high productivity and durability.
