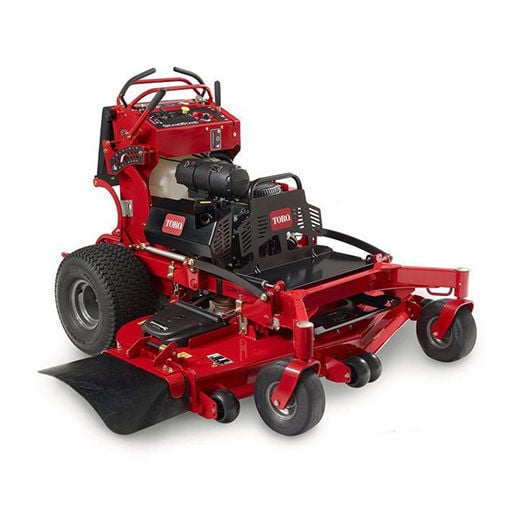

Toro 72504 GrandStand 48-inch Stand-On Mower

Toro GrandStand 72504

The Toro GrandStand 72504 is a commercial-grade 48-inch stand-on mower designed for speed, durability, and precision, making it ideal for medium to large residential properties and professional lawn care operations. Powered by a reliable 22 HP Kawasaki FX 726cc engine and equipped with a heavy-duty TURBO FORCE cutting deck, this mower delivers exceptional cutting power and consistent performance even in thick or overgrown grass. With a top transport speed of around 10 mph and a 10.5-gallon fuel capacity, the 72504 is built for long, uninterrupted mowing sessions and can efficiently handle between 2 and 5 acres per hour depending on terrain and obstacles. Its 48-inch cutting width offers the perfect balance between coverage and maneuverability, allowing you to mow large open areas quickly while still fitting through tighter spaces than wider-deck machines. To achieve the best efficiency, always begin by cleaning the deck to maintain optimal airflow and discharge, sharpening the blades for a cleaner cut, and setting the cutting height properly for your grass type and condition usually between 1.5 and 5 inches. Plan your mowing pattern to maximize straight passes and minimize overlapping or unnecessary turning, and mow when grass is dry to prevent clumping and strain on the engine. During operation, maintain a steady, moderate pace to avoid overloading the mower, and regularly check the discharge chute for clogging. After mowing, clean the underside of the deck, inspect belts, spindles, and blades for wear, and check tire pressure and hydraulic fluid levels. Troubleshooting common issues is straightforward: uneven cutting is often caused by dull blades or a dirty deck, poor discharge typically results from mowing wet grass or cutting too low, loss of power may stem from a dirty air filter or old fuel, and excessive vibration usually points to a bent blade or worn spindle. Routine maintenance including oil and filter changes, deck cleaning, and timely replacement of blades and belts will keep the mower performing like new. Overall, the Toro 72504 GrandStand is a robust, high-performance machine that combines the speed of a zero-turn with the control and visibility of a stand-on mower, delivering maximum efficiency and professional-quality results for properties ranging from a few acres to light commercial applications.

Yard-Size Capabilities

The Toro 72504 is a commercial-style stand-on mower with a large footprint and high productivity features, so it’s best suited for moderate to fairly large properties.

• It has a 48-inch (≈122 cm) cutting deck.
• Powered by a 22 hp Kawasaki FX series 726 cc engine.
• Forward ground/transport speed up to ~10 mph (≈16 km/h) according to specs.
• Fuel capacity around 10.5 gallons (≈39.7 L).
• Height of cut from about 1.5″ to 5.0″ (3.8 – 12.7 cm) on one spec sheet.

What that means in practice:
Because you have a 48″ deck, you’ll cover more ground per pass than a smaller homeowner mower (e.g., 42-inch or 36-inch decks). The stand-on design gives better visibility and quicker mounting/dismounting, which matters if your yard has obstacles, beds, trees or you’re doing commercial type work.

If your property is perhaps 1 to 3 acres, this machine will give you strong efficiency. On a larger open acreage (say 3-5 acres) it still would perform well, especially if you pick efficient patterns and terrain isn’t extremely challenging. If you have many trees/obstacles, slopes, tight spaces, this machine is still good, but you’ll need to factor slower operation.

In short: the 72504 is more than capable for large residential lots and light commercial use. It’s likely “over-sized” for very small yards (e.g., under ½-acre) where the 48″ deck may be more than necessary.

How to Use for Best Efficiency

To maximize productivity, cut quality, and minimize fuel/time/maintenance with this mower, follow these best-practice tips:

Before mowing:

• Clean the underside of the deck: Remove grass buildup and debris so airflow and discharge are optimal.
• Ensure blades are sharp: A dull blade produces ragged cuts, slows you down, and may stress the engine.
• Set the height of cut thoughtfully: If your turf is in good condition and you’re doing routine maintenance, you might choose a moderate height; if growth is heavy or wet, raise height to reduce load.
• Check tire/caster condition and tire pressure: Drive tires are 20″ x 10.5-8″ in specs for this model.
• Plan your mowing passes: Because you have a wide 48″ deck, map out long straight runs, use the full width where possible, avoid many tight circles or repeated overlapping passes which waste time.

During mowing:

• Maintain steady forward speed: Not so fast that the deck bogs down, not so slow that you waste time. With the 10-mph nominal transport speed, you’ll likely mow slower—adjust for grass conditions.
• Use the deck width: Make full passes to maximize coverage. Avoid short narrow passes if you can instead do longer runs.
• Watch discharge and clippings: If you see clumping, poor discharge, or the engine bogging, you may need to slow slightly, raise height, or stop and clear the deck.
• Mow when grass is dry: Wet grass tends to clog, slow you down, and make finish quality worse.
• Use the stand-on platform advantage: Good visibility means you can be more precise around obstacles and reduce trimming time.

After mowing:

• Clean off the deck underside, remove built-up grass, debris, etc.
• Inspect blades, spindle housings, deck hangers, belts for wear or damage.
• Store the machine on level ground, with fuel stabilized if you’ll store it for a while between uses.
• Perform routine maintenance (see next section) so your next job is as efficient as the first.

Efficiency tips summary:

• Dry mowing + full-width passes = less time.
• Sharp blades + clean deck = better cut quality + fewer passes.
• Plan passes to avoid redundant travel/overlap.
• Stay on top of maintenance so the machine doesn’t lose efficiency due to wear, dull parts, or neglected service.

Easy Troubleshooting Tips

Here are some common issues found with mowers like this and how to troubleshoot them on the 72504:

Issue: Uneven or ragged cut

• Possible causes: Dull blades, bent blades, deck not level, buildup under deck.
• Check: Remove debris from deck underside; inspect blade condition and replace/sharpen if dull or damaged; check deck hangers and ensure deck is level.

Issue: Poor discharge or clumping

• Causes: Deck clogged, height too low for heavy/fertile growth, wet grass, wrong blade type.
• Fix: Raise height of cut, clean out deck, consider switching to a more aggressive discharge/mulch blade if needed; mow when grass is dry.

Issue: Engine bogs underload or performance drops

• Causes: Dirty air filter, old fuel, wrong blade (too heavy), drive system strain.
• Fix: Replace/clean the air filter (heavy-duty canister type is specified). Ensure fresh fuel, check blade load. Also, check drive system (hydro pumps, wheel motors) if it seems sluggish.

Issue: Drive/maneuverability issues (sluggish forward motion, jerky movement)

• Cause: Possibly hydraulic fluid issues, drive system wear, tire pressure incorrect.
• Fix: Check hydraulic fluid condition and level (premium synthetic fluid per specs). Inspect tire pressures, especially if drive tires or casters are flat or worn.

Issue: Vibration or shaking

• Cause: Bent blade, spin-imbalance, damaged spindle housing or bearings.
• Fix: Inspect blades for damage; check spindle housings; replace damaged blades/spindles as needed.

Maintenance checklist to prevent trouble:

• Regular blade sharpening or replacement.
• Regular engine oil & filter changes per schedule.
• Clean deck underside after each use or at least weekly.
• Inspect belts, deck hangers, spindle bearings, tires.
• Check hydraulic fluid and drive system condition (given the commercial style drive on this machine).
• Store with stabilized fuel and clean machine if idle for a while.

Summary

The Toro 72504 GrandStand 48″ is a high-productivity stand-on mower built for moderate to large properties and even light commercial work. With its 48-inch deck, 22-hp Kawasaki engine, and up to ~10 mph transport speed, it offers solid capability for several-acre lots especially where efficient mowing with good visibility and maneuverability is needed. To get the most out of it, use full width passes, mow when conditions are favorable, keep the deck clean, blades sharp, and plan your route for minimal overlap. Troubleshooting tends to revolve around the blade/deck interface (cut quality), engine/drive system load (performance), and discharge/clog issues (deck condition or cutting height) all of which you can keep ahead of with regular maintenance and inspection. If you treat it well, this machine can deliver efficient, high-quality mowing with fewer passes, less time, and less wear.
