JRCO 470-60HD dethatcher
FREE US GROUND SHIPPING!
The JRCO 470-60HD dethatcher is a heavy-duty, 60-inch spring tine rake designed to efficiently remove thatch and debris from medium to large lawns, making it ideal for yards of roughly 10,000 square feet or more, depending on mower compatibility. It attaches to a riding mower via a mount bar, and its adjustable wheels and heavy-duty design allow for smooth operation over varied terrain while minimizing turf damage. To use it most effectively, it’s best to mow the lawn to a normal height beforehand, ensure the soil is dry, and adjust the tine depth so they just contact the turf surface; too deep can damage grass, while too shallow reduces efficiency. Operation should be slow and steady, with overlapping parallel passes, raising the unit when transporting or crossing obstacles. Common troubleshooting includes adjusting tine height if it’s not picking up thatch, checking wheel alignment for even coverage, and inspecting tines and mounting hardware for wear or looseness. Seasonal use is recommended in spring for winter debris removal, summer for light aeration, and fall for leaf and debris management. Regular maintenance, including checking bolts, tines, and wheels, ensures longevity, and following the operator manual for attachment and adjustment instructions maximizes both efficiency and safety. This combination of careful preparation, proper operation, and routine maintenance makes the JRCO 470-60HD a reliable tool for maintaining healthy, thatch-free turf.
Overview: JRCO 470‑Series Tine Rake Dethatcher
What it is:

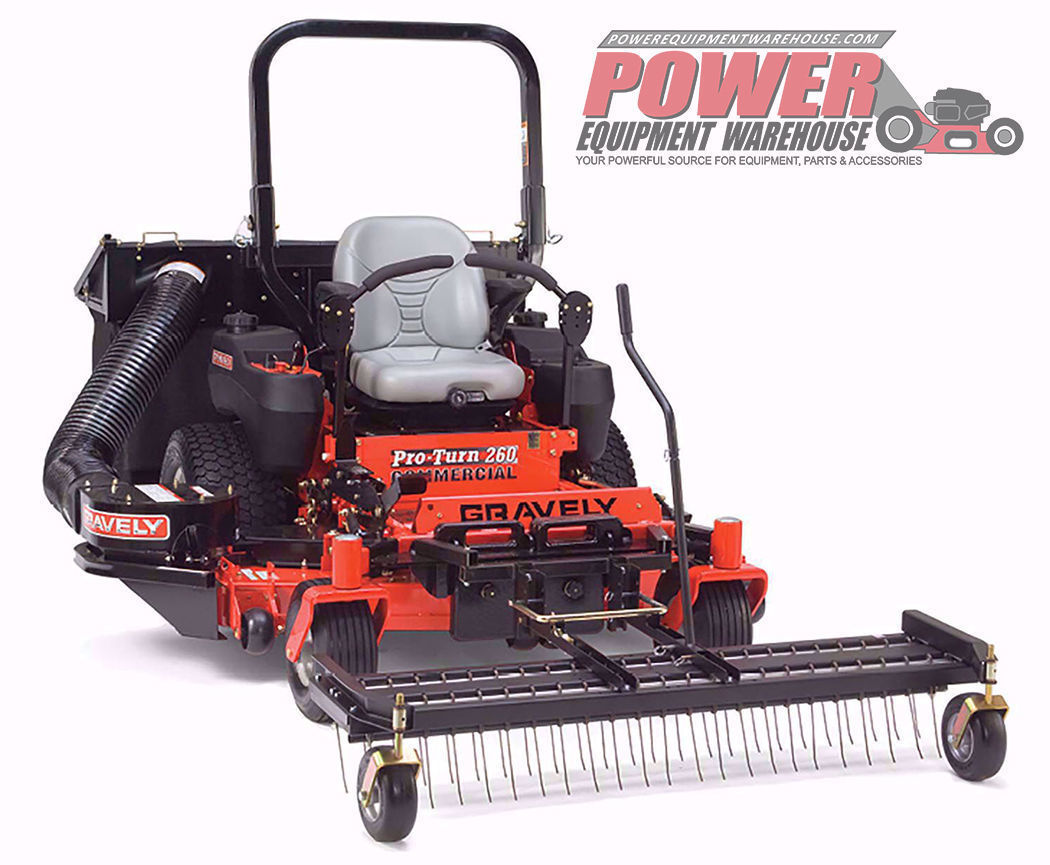

A front‑mount spring‑tine dethatcher that attaches to a riding mower’s mount bar (sold with some models). It uses double‑loop spring tines to gently lift and remove thatch, debris, and help with surface aeration without heavily damaging healthy turf.
Size options:
- 36″ width
- 46″ width
- 60″ width / HD version (heavy‑duty wheels) – best for larger lawns (~1/3–1/2 acre and up depending on mower and user needs).
Specs (60″ HD example):
- Working width: ~61.5″
- Tines: ~47 spring tines
- Weight: ~100–102 lbs.
- Adjustable wheels and fold‑for‑trailering design
Yard Size Capability:
While there’s no strict manufacturer “max size,” the 60″ models are ideal for medium–large yards (+10,000 sq ft) because the wider width covers more ground with fewer passes. Smaller 36″/46″ models are easier to maneuver in tighter yards or with smaller mowers.
Best Practices for Efficient Use
1. Prep Your Lawn
- Mow first: Trim grass to normal mowing height before dethatching so tines access thatch without snagging tall grass.
- Dry ground: Only dethatch when soil isn’t soggy, damp turf leads to clumping and strain on tines.
2. Correct Attachment
- Ensure proper connection to your mower’s mount bar using clevis pins and safety cotter clips per the manual.
3. Height Adjustment
- Set the dethatcher so tines just touch the turf surface (manual suggests eastern setup where tips are ~¾″ above a hard surface and only touch turf when lowered
- Too deep = turf damage; too shallow = ineffective thatch removal.
4. Proper Operation Technique
- Raise first when transporting, lower only for dethatching passes.
- Work back and forth in parallel passes, slightly overlapping each run to cover fully without re‑work.
- On slopes, move up/down not across to avoid mower instability.
5. Speed & Direction
- Slow, steady speed gives tines time to engage thatch fully.
- If you’re not lifting much material, slow down or do a second pass at a slightly different angle.
Easy Troubleshooting Tips
Here are common issues and simple fixes :
1. Not Removing Much Thatch
- Tines too high: Re‑adjust depth so they engage more material.
- Grass too long: Mow lower first.
- Dry or sparse thatch: Only dethatch when you actually have noticeable dead layer sometimes mowing and aerating is all you need.
2. Uneven Dethatching
- Check wheel/height settings: Uneven wheels → uneven tine contact.
- Go slower: Faster movement gives tines more interactions.
3. Tines Clogging / Turf Damage
- If debris builds up, lift and shake out between passes.
- Turf damage typically means tines set too deep; raise slightly.
4. Attachment Wobbles or Doesn’t Track Straight
- Tighten all mounting hardware.
- Check wheel casters for smooth rotation.
5. Excessive Vibration
- Inspect for bent or worn tines; replace if damaged.
- Check that mount bar and clevis pins are secure.
Seasonal Tips
Spring: Best time to remove winter dead thatch and prepare for growth.
Summer: Light pass for surface aeration helps root development.
Fall: Remove leaves/debris and prep for winter turf health.
Final Tips
✔️ Always read the operator manual before first use, safety and setup instructions matter.
✔ Be sure your mower/mount bar is compatible; front mount systems differ by brand.
✔ Regular maintenance (check tines, bolts, wheels) keeps it working longer.
Comes with JRCO Universal Mounting Bar, unit is available without bar if you already have it.
Please provide brand, model, deck size and bagger specifics of your mower so we can get you the right mount bar.
Please note, shipping may be adjusted to allow for size of box
Click here for schematics on this item
