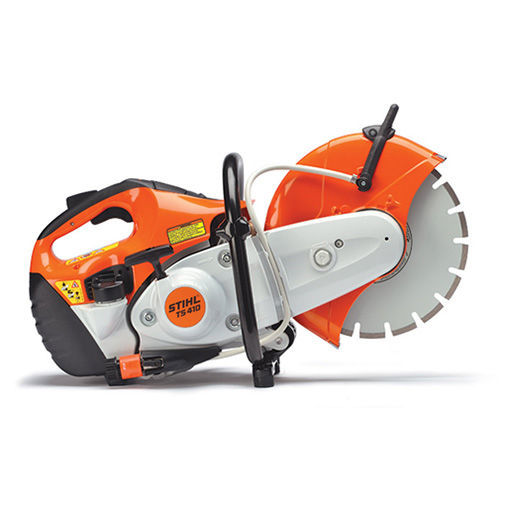

STIHL TS 410 Cutquik® saw

STIHL TS 410 Cutquik® saw

The STIHL TS 410 Cutquik® saw is a professional-grade, gas-powered cut-off saw designed for demanding jobs involving concrete, masonry, steel, and iron, equipped with a 66.7 cc engine producing approximately 4.4 hp, and a 12-inch cutting wheel that provides a maximum cutting depth of about 3.9 inches, with blade thickness typically up to 3.5 mm depending on the type and rating of the abrasive or diamond wheel used; the saw features an X2 air filtration system that removes up to 99.96% of incoming particles, ensuring reliable performance in dusty environments. To operate the TS 410 efficiently, the user should first inspect the saw and wheel for damage, confirm proper mounting, check fuel levels with fresh gasoline mixed correctly with 2-stroke oil, and verify that any water attachment is connected for wet cutting to control dust and prolong wheel life. Cutting should be performed at full throttle with steady, even pressure, letting the wheel do the work rather than forcing it, and for deep or long cuts, multiple shallow passes are preferable to one aggressive cut to avoid excessive wear and overheating. Common troubleshooting includes addressing poor cutting performance by replacing dull or incorrect wheels, correcting crooked cuts by checking wheel run-out, resolving engine roughness or starting issues by using fresh fuel, cleaning the spark arrestor, and inspecting the air filter and carburetor, while low power under load may require cleaning or replacing the filter or professional carburetor adjustment. Regular maintenance, including inspection of belts, spark plug, and exhaust screen, along with keeping guards and safety systems intact, ensures longevity and reliable performance. For safe operation, users must wear eye, ear, and respiratory protection, gloves, and steel-toe footwear, and should only use wheels rated for cut-off applications, avoiding wood or metal toothed blades, while employing proper wet or dry cutting techniques depending on material. By following these practices, the TS 410 delivers efficient, precise, and safe cutting across a variety of construction and industrial materials, maximizing productivity while minimizing wear on the saw and operator fatigue.

Cutting & Thickness Capabilities

The TS 410 is a professional gas‑powered cut‑off saw designed for cutting concrete, steel, iron and masonry with a 12″ cutting wheel. It delivers:

• Maximum wheel size: 12 inches (300 mm) standard for many jobsite applications.
• Maximum cutting depth: ~3.9 inches (100 mm) with a 12″ wheel.
• Engine power ~4.4 hp (66.7 cc displacement).
• Air filtration (X2 system) filters out ~99.96% of incoming particles for improved reliability.

Blade thickness: With abrasive wheels for concrete/stone, max thickness is generally around 3.5 mm, and you must use wheels rated to at least the spindle speed (e.g., ≥ 5080 rpm).

Easy Troubleshooting Tips

1. Poor Cutting Performance / Ragged Edges

• Cause: Wheel dull, damaged, installed backwards, or wrong type for material.
• Fix: Replace the wheel or rotate it so it spins correctly; choose the right blade type.

2. Crooked/Uneven Cut

• Cause: Wheel run‑out, wobble, or improper mounting.
• Fix: Check wheel for run‑out; install a new wheel or have the arbor inspected.

3. Engine Runs Rough / Starts Then Dies

• Cause: Fuel issues, pinched/clogged fuel line or spark arrestor.
• Fix: Use fresh fuel with correct oil mix (per Stihl manual); inspect/clean fuel line and spark arrestor screen.

4. Low Power or Bogging Under Load

• Cause: Dirty air filter or carburetor issues.
• Fix: Replace/clean filter and consider carburetor cleaning or adjustment by a pro if problems persist.

5. Hard Starting

• Cause: Old fuel, bad spark plug, or low compression.
• Fix: Fresh fuel, new spark plug, and check for engine wear; low compression may need dealer servicing.

Tips for Best Efficiency & Performance

Before You Start
✔ Check fuel levels and use fresh gas with the proper oil mix.
✔ Inspect the wheel for cracks, correct size, and manufacturer rating.
✔ Ensure the water attachment (if used) is connected to help control dust.

While Cutting
🔹 Full throttle: Apply full throttle before engaging the material and maintain it during the cut, these saws are designed to be used at full power for best cutting efficiency (similar to other Stihl power equipment).
🔹 Let the wheel do the work: Avoid excessive force, pushing hard doesn’t increase speed and wears the wheel prematurely.
🔹 Use water for concrete: If wet cutting, maintain steady water flow at the cutting line to cool the blade and suppress dust.

Cutting Technique

• Start the cut with the saw at full speed and apply steady, even pressure.
• For deep or long cuts, resist pushing harder make progressive shallow passes instead of one aggressive cut.

Maintenance

• Air filter: The X2 system reduces filter servicing but check periodically if cutting very dusty materials.
• Semi‑automatic belt tensioning helps prolong belt life with minimal manual adjustment.
• Periodically inspect belts, spark plug, and exhaust spark arrestor.

Safety & Best Practices

• Always wear eye protection, hearing protection, gloves, and a dust mask/respirator.
• Never use toothed, carbide, or woodcutting blades only abrasive or diamond wheels rated for cut‑off use.
• Keep guards in place and never disable water or dust safety systems.
