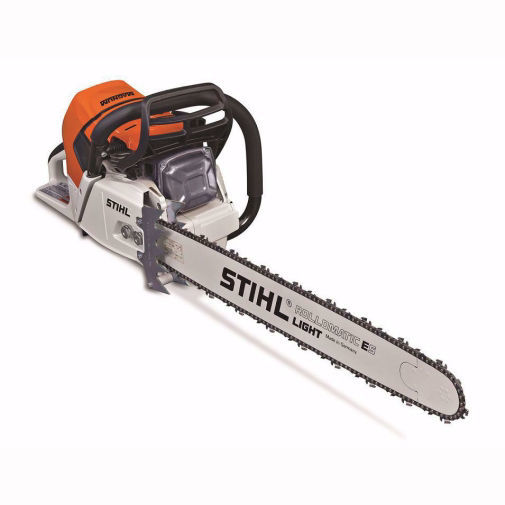

STIHL MS 661 C-M

STIHL MS 661 C-M

The STIHL MS 661 C-M is a professional-grade chainsaw designed for heavy-duty logging, milling, and felling large trees, offering outstanding power, durability, and advanced electronic engine management. With a 91.1 cc engine producing roughly 7.2 horsepower, it supports guide bars ranging from 16 to 36 inches (40 to 90 cm), making it ideal for cutting massive hardwood trunks or performing deep, efficient bore cuts. For best efficiency, pair it with a sharp, properly tensioned chain (typically 3/8″ pitch RS or RS3), use high-quality 50:1 fuel mix or STIHL Moto mix, and ensure the adjustable oiler is set according to bar length and wood type; more oil for dry, dusty, or large cuts. Always let the saw’s M-Tronic system warm up and calibrate before demanding full load and allow the chain to do the cutting rather than forcing it through the wood, which wastes fuel and stresses the motor. Clean the HD-2 air filter frequently, inspect the spark plug, and keep the bar groove, oiler holes, and drive sprocket free of debris for consistent lubrication and chain alignment. Troubleshooting common issues is straightforward: if the saw bogs or loses power, check the air filter, fuel quality, and for intake leaks; if oil flow seems inconsistent, clean the oil line and adjust the pump; and if the chain loosens frequently, verify the side tensioner and bar studs are tight. In hot or dusty conditions, more frequent filter and oil maintenance will prevent overheating or lean running. Overall, the MS 661 C-M delivers its best efficiency when operated with a sharp chain, proper fuel, clean filters, balanced bar length, and sound cutting technique; letting its high torque and advanced engine management system maintain peak performance in even the toughest wood.

Wood-size capabilities

• The MS 661 C-M has a displacement of 91.1 cc (5.56 cu in) and an output of about 5.4 kW (7.2 bhp).
• Recommended guide bar length range: 40-80 cm (16″-32″) in many regions.
• Some listings show support for bars up to 71-90 cm (28″-36″) for this model.
• For really large timber work (e.g., very big diameter logs or milling) some users report pushing beyond the “recommended” bar length, but that requires experience, the correct chain/bar, and accepting greater risk.
• In other words: this is a “big timber” professional saw. You can tackle large trees, thick trunks and serious forestry work.

Practical takeaway

• For typical large tree felling or bucking: a bar in the 28-36″ (≈71-90 cm) region is appropriate.
• If you go smaller (e.g., 16-20″ bar) you’ll have faster handling but maybe under-utilize the saw’s capacity.
• If you push for extremely long bars (40″+) you must ensure the chain, bar, sprocket, and drive system are rated, and you must be prepared for more load on the engine, more maintenance, more torque/back-kick risk.
• Make sure the bar length matches the chain pitch (this model uses 3/8″ RS chain often) and the sprocket/drive links accordingly.

Best-Use & Efficiency Tips

Here are operational practices to maximize efficiency and reduce wear or problems:

1. Use proper fuel & mixture

• Use gasoline with appropriate octane rating (check your local manual). Some sources say at least 89 AKI / 95 RON.
• For two-stroke engines: use a high-quality two-stroke oil, mix at the correct ratio (Stihl often recommends 50:1 in many markets, or their “Moto mix” premixed fuel where available).

2. Use the right oiling and chain lubrication

• The MS 661 C-M has a “controlled-delivery oil pump” which allows you to adjust oil volume based on conditions (dusty, dry wood, long bar).
• Before each job check chain tension, guide bar groove is clean, oil flow to the tip is adequate. A well lubricated chain/bar reduces friction, extends life, cuts faster.

3. Choose the right bar/chain for the task

• Use a suitable chain type (for example: component list shows OILOMATIC® chain 33 RS3) with the correct pitch and drive links.
• For large logs: a sharp chain, full engagement cut, use depth gauges adjusted correctly for wood type and conditions.

4. Proper cutting technique

• Let the saw do the work; don’t force it. Especially with large diameter logs, use correct felling/bucking technique so you don’t stall the engine or bind the bar.
• When limbing or bucking, support logs so bar doesn’t bind; when cutting big trees, plan escape route, avoid “pinch” zones.
• Keep the chain sharp. A dull chain slows you, increases load on engine, raises risk of binding/kickback.

5. Maintenance & filter care

• The model features an HD-2 long-life filter system. Cleaning the air filter regularly keeps engine performance high and reduces fuel consumption.
• Ensure you periodically inspect/clean side-mounted chain tensioner, oil pump, anti-vibration mounts, spark plug, etc.

6. Warm-up and break-in (if new)

• With a new saw (or after major service) allow a warmup period; don’t push full throttle immediately without the saw being warmed and filter clean.
• Some users recommend some moderate load cuts early to let the system calibrate (especially with models using M-Tronic engine management).

7. Choose correct bar length for your job

• While you can go up to the higher end of bar lengths, for many jobs a slightly shorter bar (but still big enough) will allow faster handling and less weight fatigue.
• Balance between bar length and saw weight/fatigue: the MS 661 C-M powerhead is about 7.4 Kg (16.3 lbs.) without bar/chain.

Common Troubleshooting Tips

Here are frequent issues with this model (and similar professional saws) and how to handle them:

Issue: Engine starts cold, but bogs/loses power under load

Possible causes: intake leak (crankcase gasket, oil-seal behind flywheel/clutch), solenoid/engine management fault (for M-Tronic models), carbon build up, poor fuel mixture.

• Solution: check for air leaks, examine intake and carburetor (or M-Tronic sensor/solenoid) system, ensure filter clean, proper fuel/oil mixture.

Issue: Saw uses too much bar/chain oil or not enough oil

• Check oil pump setting: For dusty woods or very long bars you may need to increase oil delivery. Controlled-delivery oil pump has user adjustment.
• Ensure chain tip is getting oil (you can test by running briefly and seeing oil flick off tip). If not, check oil line, pump, filter, bar groove for blockage.

Issue: Chain tension loose or side-mount tensioning hard to access

• The MS 661 C-M has side-access chain tensioner for easy access
• Make sure chain is tensioned correctly (cold). A loose chain can whip and can wear guide bar rails and drive sprocket. Tight enough so you can pull chain by hand and links move smoothly but don’t sag.

Issue: Overheating or poor performance in hot/dusty conditions

• Clean air filter often; dust build up reduces flow, makes engine run lean/hot.
• Ensure oil delivery is sufficient; in dry woods you may need more bar oil.
• If using very long bar beyond “recommended,” ensure engine load isn’t excessive; consider stepping down bar length or switching to high-flow chain/bar designed for heavy duty.

Issue: Starting/idle problems after service or new parts

• With M-Tronic models: after major work (cylinder, carb, etc.) you may need to let engine management “calibrate” itself. Some users report solenoid replacement or calibration needed.
• Always check spark plug, plug gap, ignition coil, magneto alignment, fuel supply, and that stop switch and ignition switch are in proper positions.

Issue: Binding or bar catches during cut

• This often is technique or bar length/chain choice issue rather than saw fault. Ensure you’re using a bar that suits the cut (log size, type of cut), ensure chain is sharp, ensure you have correct support to avoid pinch.
• Inspect guide bar for wear: rails, groove, nose sprocket, ensure bar is straight. Worn bars will cause more binding and chain wear.

Summary

The Stihl MS 661 C-M is a high-capacity professional forestry chainsaw built for large timber. Use a bar in the 28-36″ (71-90 cm) range for most heavy-duty work, ensure you use the correct chain/bar combination, maintain the saw properly, and apply sound cutting technique to get efficient, safe performance. Regular maintenance (filter, tension, oiling, mixture) plus careful troubleshooting of common issues (air leaks, oil delivery, calibration) will keep it running strong.
