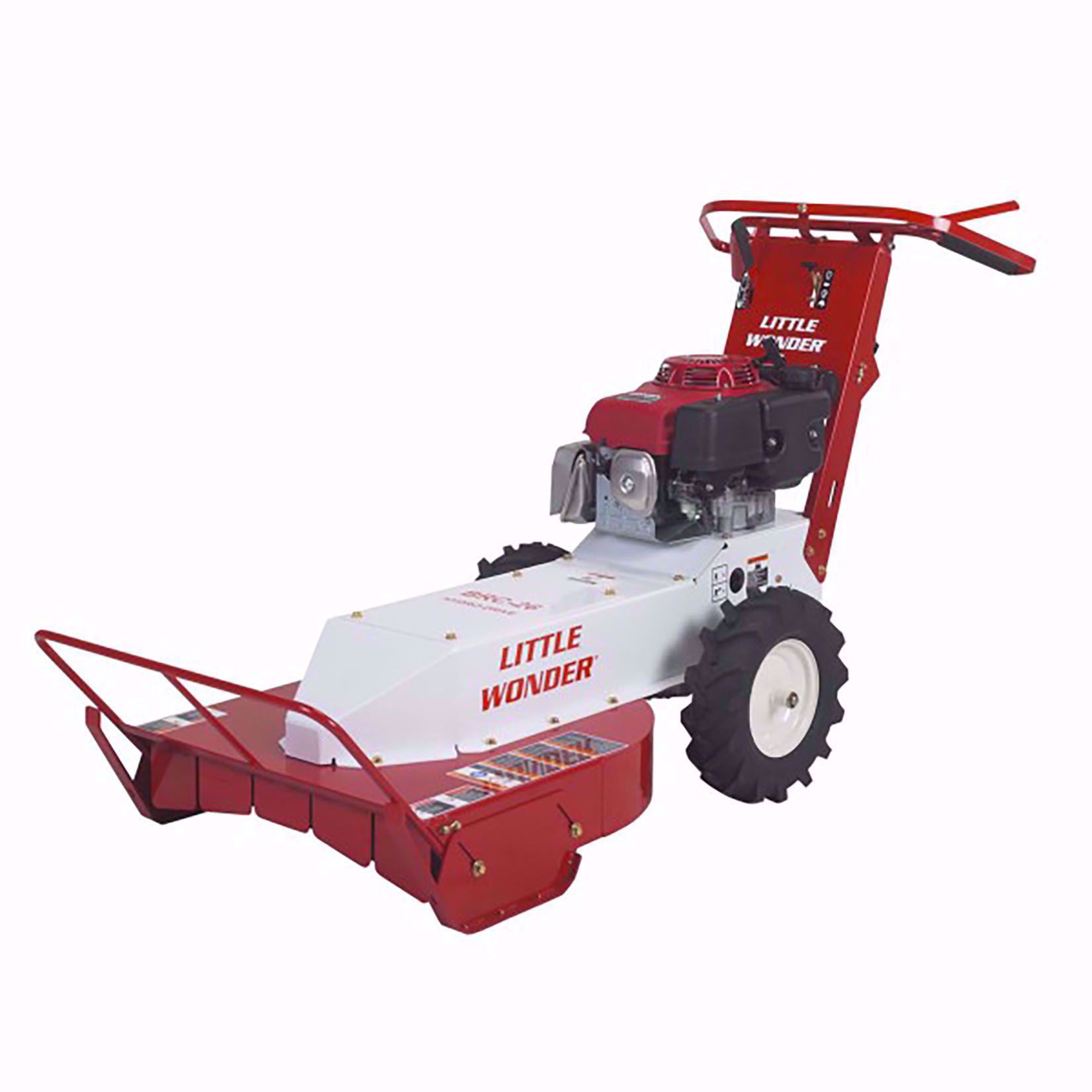

Little Wonder Hydro Brush Cutter 5127-22-01

Little Wonder Hydro Brush Cutter 5127-22-01

IN STORE PICKUP ONLY

The Little Wonder Hydro Brush Cutter 5127-22-01 is a heavy-duty, 26-inch commercial brush cutter powered by a reliable Honda GXV390 engine and designed to clear large areas of thick weeds, tall grass, overgrowth, and saplings up to about 2 inches in diameter. Its hydrostatic transmission provides smooth, variable speed control up to about 4 mph forward, making it easy to match ground speed to cutting difficulty and cover large areas efficiently. The machine’s solid-rod linkages, sealed spindle bearings, and puncture-proof 16-inch tires help it handle rough terrain, while its adjustable skid shoes and 3–5 inch cutting height allow you to set the deck for the best results depending on ground conditions. To use it most efficiently, plan your cutting passes so you minimize overlap, begin at a slower pace when entering heavy brush, and increase speed in lighter growth to maximize area covered. Keeping the blade sharp, clearing debris from under the deck, and setting skid shoes evenly will help maintain clean cutting and reduce bogging. Regularly check simple items such as fuel quality, the air filter, spark plug, and drive belt if the engine becomes hard to start or the machine loses cutting power. If drive performance feels weak, inspect for hydrostatic leaks or linkage misalignment. For smooth operation, keep the engine well-maintained, clean the cooling fins, and periodically inspect tires and bearings. Always wear protective gear, use the wraparound hand guard when cutting near obstacles, and avoid slopes steeper than about 20 degrees for safety. When maintained properly and used with consistent forward momentum, the 5127-22-01 efficiently clears large, overgrown areas while remaining durable, stable, and easy to control.

Key Specs & “Area Capabilities”

Understanding the model’s specs helps you estimate “area capabilities” — how much ground it can handle effectively.

• Engine: Honda GXV390 (389 cc)
• Fuel Capacity: ~2.2 qt (2.1 L)
• Cutting Width: 26″ (66 cm) blade.
• Cutting Height Range: 3″ to 5″ (7.6 cm to 12.7 cm)
• Max Cutting Capacity (Thickness): Can cut saplings / brush up to about 2″ (5 cm) in diameter.
• Transmission / Speed: Hydrostatic (Hydro-Gear T2) with variable speed; up to 4.2 mph forwards, 1.7 mph reverse.
• Tires: 16″ foam-filled, puncture-proof, bar-tread.
• Max Slope Angle: 20°
• Weight: Dry weight ~405 lb. (183.7 kg)

What Does “Area Capability” Mean Practically

• With a 26″ deck, each pass clears a fairly wide swath, good for overgrown fields, rough brush, or large yards.
• Given the engine size and hydrostatic drive, it’s well-suited for moderate to heavy brush, not just light grass.
• The 2″ sapling capacity means it can handle more than just weeds; small woody growth is in scope.
• The 20° slope rating means you can tackle some uneven ground, but very steep hills might be risky or inefficient.

Easy Troubleshooting Tips

Here are common issues you might run into, and simple ways to diagnose/fix them:

1. Engine Won’t Start or Is Hard to Start
   • Check fuel: Make sure the tank has clean, fresh gasoline.
   • Spark plug: Remove and inspect. Clean or replace if fouled.
   • Air filter: If it’s clogged, replace or clean it; a dirty filter will choke the engine.
   • Recoil starter: Make sure the rope and mechanism are functioning (i.e. not damaged).
2. Poor Cutting Performance / Blade Dullness
   • Blade damage: Inspect the 26″ blade for nicks, bends, or wear. Sharpen or replace as needed.
   • Deck clearance: Make sure nothing is obstructing the cutting area (e.g. packed material under the deck).
   • Skid shoes: These are adjustable; if they’re too low or uneven, they might be affecting cut height or causing drag.
   • Belt / pulley: Because it's a single-belt, single-pulley system, if there’s any slipping, check the belt tension or for belt wear.
3. Drive Problems (Hydrostatic Transmission)
   • Check for leaks: Look for any fluid leaking around the transaxle.
   • Drive linkage: Little Wonder uses solid rods for connection to the transmission, cutter, and parking brake; these are more robust than cables but still check for misalignment or bending.
   • Speed issues: If speed seems off, try bleeding or servicing the hydrostatic unit per the manual.
4. Overheating or Vibration
   • Bearings: The spindle has sealed ball bearings. If they wear out, they can cause vibration.
   • Engine cooling: Ensure cooling fins on the Honda GXV390 are clean and clear of debris.
5. Fuel / Oil Maintenance
   • Change oil: Follow the manufacturer’s oil schedule. For many small engines, fresh oil helps longevity and performance.
   • Fuel stabilizer: If the machine sits for a while, consider using a fuel stabilizer to prevent stale gas issues.

Tips for Best Efficiency / Usage

To get the most out of your 5127-22-01 brush cutter, here are some best practices:

1. Plan Your Passes Smartly
   • Work in organized passes: Because the deck is 26″, plan your mowing pattern to minimize overlap.
   • Use the hydrostatic transmission: Start slow to engage thick brush, then increase speed to maintain flow when cutting easier vegetation.
   • Reverse when needed: The 1.7 mph reverse speed is helpful for backing out of tight spots or repositioning.
2. Optimize Blade Height
   • For heavy brush or saplings, use a higher cut height (toward 5″) to prevent bogging down.
   • For regular weeds or tall grass, lower height (3″) works well and gives a cleaner cut.
3. Use Skid Shoes Properly
   • Adjust skid shoes so the deck “floats” just above the ground; this prevents scalping and preserves both the deck and the terrain.
   • If terrain is uneven, make sure skid shoes on both sides are aligned; this helps maintain an even cut.
4. Handle Brush Wisely
   • For thick saplings (close to 2″), cut at a slower forward speed so the blade can do its work.
   • For lighter vegetation, use more speed to cover ground quickly.
5. Keep Maintenance Regular
   • Grease fittings, bearings, and spindles: Regular servicing keeps things running smoothly. The manual has “easy-access service points.”
   • Check tire condition / pressure if relevant (even foam-filled tires can wear).
6. Safety First
   • Use the wraparound hand guard when cutting near obstacles (walls, fences, trees) helps protect hands.
   • Wear protective gear: eye protection, ear protection, gloves, and possibly sturdy boots.
   • Clear the work area: Remove rocks, large debris, or other hazards before cutting.

When This Machine Is Not Ideal

• Extremely dense woody forest / large trees: This is a brush cutter, not a mulcher or forestry machine. 2″ saplings is its stated max.
• Very steep slopes: 20° max is reasonably good, but anything steeper may be unsafe or inefficient.
• Fine lawn mowing: While it cuts grass, its strength is in rough, overgrown terrain. A regular lawn mower may be more efficient for mowed turf.

Summary

• The Little Wonder 5127-22-01 is a hydrostatic brush cutter with a 26″ deck and solid build, designed for weeds, heavy brush, and small saplings (up to ~2″ diameter).
• It’s quite capable in terms of “area” covering ground efficiently because of its wide deck and good forward speed.
• For best performance, keep the blade sharp, adjust skid shoes, maintain the engine and transmission, and use a smart cutting strategy.
• If you run into issues (starting, cutting, drive), check common trouble areas like the belt, bearings, linkage rods, and fluid levels.
