STIHL HT 135

STIHL HT 135

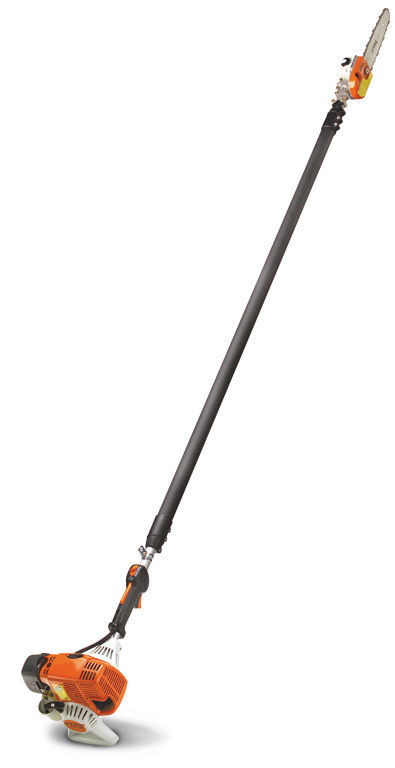

The STIHL HT 135 is a powerful professional-grade telescoping pole pruner designed for arborists, landscapers, and property maintenance professionals who need reliable reach and cutting strength for demanding tree work. Powered by a 36.3 cc engine producing about 1.9 horsepower, it comes equipped with a 14-inch (35 cm) guide bar and 3/8" Picco Micro Mini chain, giving it the ability to cut through branches up to roughly 12 inches in diameter depending on the type of wood and cutting angle. The telescopic shaft extends from about 7.5 feet to over 11 feet, allowing you to safely prune or remove high branches without ladders, while the lightweight magnesium gearbox, professional anti-vibration system, and ergonomic handle design help reduce operator fatigue during extended use. To achieve the best efficiency, always use fresh, high-quality 50:1 two-stroke fuel mix, keep the air filter and spark plug clean, and make sure the chain is sharp, properly tensioned, and well-lubricated. The automatic chain oiler should be checked frequently to ensure steady oil flow, and the bar groove and oil holes should be cleaned regularly to maintain smooth operation. Let the chain do the work—avoid forcing the cut—and make sure branches have room to fall safely without binding the bar. When extending the pole to maximum length, work slowly and maintain balance to prevent overreaching or fatigue. If the engine bogs or loses power, inspect the air filter, fuel quality, and chain sharpness; if the bar overheats or the chain looks dry, refill the oil reservoir and clear the lubrication channels. Hard starting or rough idling often points to a dirty spark plug or old fuel mixture, both of which are easy fixes. If vibration increases, check the telescopic clamps and drive shaft for looseness, and inspect anti-vibration mounts for wear. The HT 135 performs best when used for professional pruning, storm cleanup, and overhead maintenance, offering exceptional reach, cutting power, and durability. With regular cleaning, sharp chain maintenance, correct fuel, and proper cutting technique, this pole pruner provides outstanding long-term performance and efficiency for demanding tree care jobs.

Wood-Size Capabilities

The HT 135 is a professional-grade telescoping pole pruner driven by a 36.3 cc engine producing about 1.9 hp (1.4 kW). It uses a recommended guide bar length of 14″ (≈ 35 cm) with a 3/8″ PICCO Micro Mini chain (61 PMM3) in many markets. The telescopic shaft adjusts from about 7′6″ up to ~11′6″ (or roughly 2.7 m to 3.9 m) in the U.S. version, allowing cuts up to ~5 m (≈16 ft) high. Given the 14″ bar and professional motor, this tool is best suited for trimming large limbs, overhead branch removal, orchard and municipal tree work—branches around perhaps up to 12″ (≈30 cm) diameter depending on wood hardness and operator technique. It is not designed for full trunk felling of very large trees (e.g., 20″+ diameter) in a single pass. Using it within its proper envelope will yield best results.

Best Use & Efficiency Tips

To get the most out of the HT 135 and operate it efficiently:

• Fuel & mixture: Use fresh, high-quality two-stroke fuel (if applicable) or the correct fuel mixture or oil spec for your region. A clean fuel supply ensures peak performance.
• Chain, bar and lubrication: Keep the chain sharp, the bar groove clean, and the automatic/controlled oiler functioning. Poor lubrication or a dull chain will slow you down, heat the bar, and increase operator fatigue.
• Use appropriate technique: Because you’re working at height (via the telescopic shaft), maintain proper stance, avoid awkward overreaching, and plan your cut so the branch falls safely. Let the tool do the cutting rather than forcing it. Avoid binding the bar.
• Match the job to the tool: With the 14″ bar and 36.3 cc engine, the HT 135 excels in branch removal, overhead cuts, and smaller trunk/limb work. Don’t overburden it by expecting large trunk felling performance; instead, pick a larger saw for that.
• Maintenance & ergonomics: The HT 135 features anti-vibration, a no-slip grip, one-touch stop and easy shaft adjustment. Clean or replace the air filter regularly, inspect the telescopic shaft joints/clamps for play (any looseness will reduce cut quality and increase fatigue), and check the gearbox/branch hook area for wear.
• Shaft length vs fatigue: While the reach is a major advantage, longer extension means more weight and leverage forces. Use the shortest length necessary for the job to reduce fatigue and maintain control.

Easy Troubleshooting Tips

Here are common issues and how to address them:

• Loss of power or bogging under load:
  • Check air filter: a clogged filter restricts airflow, causing lean running or power loss.
  • Check fuel quality: old or improper fuel/mix can cause performance loss.
  • Check chain sharpness and tension; a dull chain or improper tension increases load on the engine.
  • Confirm the gear head/drive tube is properly engaged.
  • Inspect the telescopic shaft lock/clamp for play; any looseness may affect power transmission or feel.
• Bar or chain overheating / poor lubrication:
  • Ensure the chain oil tank is filled.
  • Ensure oil delivery line and bar groove are clear of debris.
  • Inspect sprocket nose and bar for wear or glazing. If the chain is running hot or the bar is discolored, stop and clean/adjust.
• Starting or idle problems:
  • Inspect spark plug condition and gap (if equipped).
  • Use the semi-automatic choke lever properly; keep primer/purge pump functioning. The HT 135 has a purge pump primer for easier starts.
  • Vanity check: stop switch position, throttle trigger working, fuel lines not blocked.
• Vibration or poor balance:
  • Inspect the anti-vibration mounts and handle assembly; any damage or fatigue can increase operator strain.
  • Check telescopic shaft for secure clamp and no looseness.
  • Ensure the unit is balanced with the proper bar length and you’re using a shoulder strap/harness if recommended.

Summary

The HT 135 is a high-reach, professional pole pruner built for serious tree-maintenance tasks. With its 36.3 cc engine, 14″ bar, and adjustable telescopic shaft, it can efficiently tackle overhead limbs and moderate trunk/branch work when used correctly. To maximize efficiency, keep the chain sharp, ensure proper lubrication, use the correct fuel and mix, maintain the shaft/clamp integrity, and match the job to its capacity (i.e., overhead cuts rather than large trunk felling). Troubleshooting is mostly about ensuring airflow (filter), lubrication, drive engagement, and correct technique. With proper care and use, this tool delivers high productivity with reduced fatigue and consistent performance.
