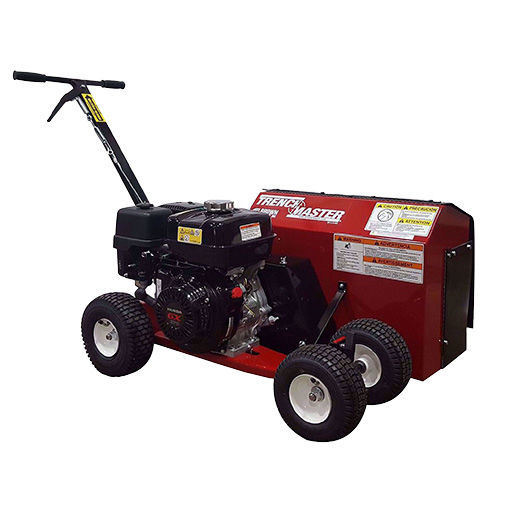

Brown F-904H 9.0 TrenchMaster

Brown F-904H 9.0 TrenchMaster

* MUST SHIP TRUCK FREIGHT. Call Us For A Great Freight Rate (800)769-3741!

The Brown F-904H 9.0 TrenchMaster is a heavy-duty walk-behind trencher powered by a 9-HP Honda GX270 engine and built for narrow, clean cuts up to 9 inches deep, with trench widths ranging from ½″ to 2″ depending on the rotor installed, and it uses a durable double-belt drive and carbide-tipped rotor points to maintain cutting efficiency even in tough soil. To get the best performance, start by inspecting belt tension, rotor condition, and tire pressure, then choose the correct rotor for your required depth and width; once the engine is at full throttle, let the rotor reach full speed before gently lowering it into the soil. During trenching, maintain a steady, controlled forward pace, allowing the rotor to cut without forcing the machine, and in very firm or compacted soil you can gently “rock” the handle to help the rotor bite without overloading the engine. If you notice bogging, slow progress, or loss of power, the most common causes are loose belts, dirty air filters, soil buildup under the hood, or a dull rotor, all of which are simple to correct by tightening belts, cleaning filters, clearing clay and debris, or replacing worn carbide points. Excess vibration often indicates a rotor obstruction or imbalance, requiring the rotor to be cleaned or inspected for damage, while starting issues are usually fixed by using fresh fuel and cleaning or replacing the spark plug. After each job, clean the rotor and hood thoroughly, inspect belts and rotor points, lubricate moving parts, and store the machine in a dry area to prevent rust and belt deterioration. By operating it patiently, engaging the rotor smoothly, monitoring soil discharge, and performing routine maintenance, the F-904H 9.0 delivers fast, consistent trenches with long-term reliability.

Depth Capabilities

• The F-904H9.0 is equipped with a Honda GX270 (9-HP) engine.
• It has a maximum trenching depth of up to 9 inches, depending on soil conditions and the rotor used.
• The trench width ranges from ½″ to 2″, giving flexibility for narrow cable or pipe trenching.
• The drive system is a double belt & pulley, which helps transmit power efficiently and withstands load.
• It uses tungsten carbide rotor points, which are very durable for trenching in soil.
• The machine has steel wheels with pneumatic tires, improving maneuverability and reducing turf damage.

Troubleshooting Tips

Here are common issues you might run into when using the F-904H9.0, and how to address them:

1. Starting Problems
   • Ensure you’re using fresh, clean gasoline; stale or contaminated fuel can make the GX270 hard to start.
   • Check and clean or replace the spark plug if the engine is misfiring or not starting.
   • Confirm that the throttle is set properly when starting so the engine can rev freely.
2. Loss of Trenching Power or Overloading
   • If the trencher bogs down: try reducing forward feeding speed; let the rotor do the work, don’t force it.
   • Inspect and adjust belt tension: loose or worn belts may slip, reducing power transmission.
   • Clean the air filter; a clogged filter chokes the engine, reducing performance.
3. Excess Soil Build-Up
   • The F-904 has a clay hood to help deflect sticky soil, but in very clay or wet ground, buildup can still happen.
   • Periodically stop and clear out any soil or debris around the rotor and hood to maintain cutting efficiency.
4. Rotor / Cutter Wear
   • Check the rotor points for wear; tungsten carbide is tough, but over time they dull and trenching efficiency drops.
   • If you hit rocks or hard material, the rotor may imbalance; inspect for damage and replace if needed.
   • To change the rotor, Brown’s design lets you remove a single nut to swap it out.
5. Vibration or Stability Issues
   • Excessive vibration usually means the rotor is unbalanced or has debris; stop, clean, and inspect it.
   • Make sure the clutch lever fully disengages when released; partial engagement can cause unwanted rotor motion.
   • Check tire pressure: underinflated tires can make the unit feel wobbly or impact trench depth consistency.
6. Safety / Unexpected Obstacles
   • If you hit a rock or an unknown buried object, immediately stop the machine, disengage the clutch, and investigate.
   • When starting a new trench, always survey the ground for potential hazards (rocks, roots, utilities).
   • Use the clutch to stop rotor motion before repositioning or transporting the machine; this protects belts and prevents damage.

Tips for Best Efficiency in Use

To get the most from your F-904H9.0 in terms of speed, quality of cut, and longevity follow these best practices:

1. Pre-Job Setup
   • Choose the appropriate rotor: Brown offers various rotors; using the right depth / width rotor will maximize efficiency for your job.
   • Make sure the belts are correctly tensioned and aligned. Proper belt setup ensures efficient power transfer.
   • Clear the trenching path of large rocks, debris, or anything that could damage the rotor or disrupt the cut.
2. Proper Engagement Technique
   • Start the engine at full throttle, let the rotor spin freely before lowering it into the soil. This ensures the rotor is at full speed before it meets resistance.
   • Lower the handle slowly so the rotor engages the ground gradually rather than slamming in, this reduces stress on the rotor and belts.
3. Operational Technique
   • Use a steady, controlled forward pace: don’t push too hard. Let the rotor bite and cut at its own rate.
   • In very firm or compacted soil (like dry clay), you can use an “oscillating” motion: gently rock the handle back and forth (front to back) while advancing to help the rotor penetrate without overloading.
   • Monitor how the spoil (dug soil) is being thrown out. If clumps are building up, stop momentarily to clear them. This helps maintain a clean cut and prevents the rotor from bogging.
4. Clean-up and Soil Management
   • Because the trench machine piles the excavated soil neatly along the trench edge, plan to backfill while the soil is still loose; it will compact naturally and save time.
   • After trenching, clean out soil from under the hood and around the rotor so leftover dirt doesn’t dry in place, which could make the next cut harder.
5. Maintenance & Storage
   • After each use, wash off or blow off soil (especially clay) and dry the machine to prevent rust and buildup.
   • Inspect and replace rotor points when they become dull; sharp points keep cutting efficiently.
   • Grease or lubricate any pivot points or moving parts as recommended in the Brown manual.
   • Store in a dry, sheltered location to protect belts, pulleys, and the engine.
6. Safety First
   • Before trenching, double-check the work zone for underground utilities, rocks, or debris.
   • Use the clutch lever to stop the rotor completely when relocating or pausing work; this helps avoid accidents and wear.
   • Wear appropriate PPE: eye protection (for flying dirt/rocks), ear protection (for engine noise), and gloves (for handling).

Summary

The Brown F-904H9.0 TrenchMaster is a powerful, compact trencher ideal for irrigation and sprinkler system installation. Its 9-HP motor, double-belt drive, and carbide rotor let it cut to 9 inches deep with a narrow trench width. To use it well, pick the right rotor, start the rotor spinning before cutting, and trench at a moderate pace rather than forcing it. Frequently clean the rotor/hood, inspect wear parts, and perform regular maintenance to keep it running smoothly. Common problems (like bogging or vibration) usually stem from belt issues, rotor wear, or soil buildup, all of which are relatively easy to troubleshoot with regular checks. With smart operation and care, the F-904H9.0 delivers efficient, clean trenches with minimal turf damage.
