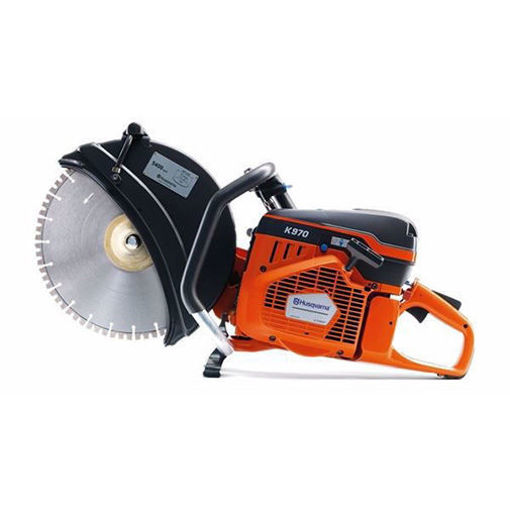

Husqvarna K970-14 Cutoff Saw

Husqvarna K970-14 Cutoff Saw

The Husqvarna K970-14 Cutoff Saw is a professional-grade, 2-stroke gasoline-powered saw designed for heavy-duty cutting tasks in construction, demolition, and rescue operations, offering a maximum cutting depth of about 5 inches with a standard 14-inch blade, while specialized ring saw variants can reach depths of over 10 inches; it features a powerful 93.6 cc, 6.5 hp engine that provides the torque needed for cutting concrete, asphalt, masonry, and metal, and its blade thickness capability is typically up to 0.2 inches depending on the type of diamond or segmented blade used, which allows for precision and durability in demanding conditions. To use the K970 efficiently, operators should begin by inspecting the saw for any damage, ensuring the correct blade is securely mounted, verifying fuel and oil levels with the proper 2-stroke mix, and checking that the water feed system is functioning if performing wet cuts, as this prolongs blade life and reduces dust; warm up the engine for a minute to stabilize carburetor performance, then engage in smooth, steady cutting motions, applying even pressure rather than forcing the saw, and for deep cuts, make multiple shallow passes instead of a single aggressive cut. Regular maintenance, including cleaning or replacing the air filter, inspecting and adjusting the spark plug, checking and tightening belts, and monitoring blade condition, is essential to prevent loss of power, excessive vibration, or engine flooding, which are common issues, and troubleshooting is relatively straightforward by addressing fuel mix, air filter blockage, carburetor cleanliness, and blade wear. Safety is critical, requiring eye, ear, and respiratory protection, steel-toe boots, gloves, and cut-resistant clothing, along with keeping guards and fasteners secure; additionally, using the right blade for the material whether concrete, asphalt, or metal maximizes efficiency and extends blade life. By following these best practices, including resting periodically during extended cutting sessions to prevent overheating, using proper water flow for wet cutting, and selecting the optimal blade type, the Husqvarna K970 delivers consistent, efficient, and safe performance for heavy-duty cutting applications while minimizing wear on both the machine and operator.

Key Specs & Cutting Capabilities

Cutting Performance

• Blade size: Up to 14″ diameter.
• Max cutting depth: ~5 in (125 mm) with a standard 14″ blade.
  • Premium ring saw variants can cut deeper (up to ~10.6″ / 270 mm) thanks to the design.
• Max blade thickness: ~0.2 in (5 mm) (blade dependent).
• Engine: ~93.6 cc, ~6.5 hp 2‑stroke gasoline engine.
• Weight typically around 24–26 lbs (tool only).

🛠 Note: Actual depth depends on the blade chosen (deeper ring saw blades vs. standard segmented blades). Using larger diameter blades (if supported) increases depth proportionally.

Easy Troubleshooting Tips

Common Issues & Quick Fixes

1. Hard Starting / Won’t Start

• Check fuel mix: 2‑stroke saws need the correct oil/gas ratio per manual recommendations.
• Flooded engine: Pull the spark plug and dry it if there’s fuel on it.
• Air filter blocked: Clean or replace; a dirty filter starves the engine.
• Sticky carburetor: Run carb cleaner through while carefully following safety guidelines.

2. Loss of Power or Uneven Cutting

• Blade choice: Wrong blade type can bog the saw down; use the right blade for the material (concrete vs. asphalt vs. metals).
• Blade dull or damaged: Replace or dress blade regularly.
• Water feed (wet cutting): Ensure adequate water flow to cool the blade (if using wet cut kit).

3. Excessive Vibration

• Check mounting: Loose handles, blade guards, or worn bushings can amplify vibration.
• Worn bearings/clutch: Can feel like vibration and jerky motion; inspect and replace worn parts.

4. Belt or Slipping Issues

• Inspect drive belt: A worn or loose belt will slip under load. Tighten or replace following the manual.

Maintenance That Stops Issues Before They Start

• Air filter cleaning: Especially when cutting dusty materials.
• Spark plug check and gap set per spec.
• Regular belt inspection: Belt life is improved by keeping debris out and tension right.

Manufacturer manuals and part diagrams provide exact service intervals and are indispensable for deeper troubleshooting.

How to Use for Best Efficiency

Before You Start

✔ Inspect the saw for damage.
✔ Verify correct blade type & condition.
✔ Adjust water feed correctly (if wet cutting).
✔ Check fuel and oil level; fresh, correct mix.
✔ Tighten all guards and fasteners.

Cutting Tips for Maximum Efficiency

1. Warm Up the Engine

• Let it idle a minute after starting so oil and carburetor stabilize.

2. Use Steady, Even Pressure

• Don’t force the cut, let the blade do the work. Forcing reduces blade life and can bog the engine.

3. Water On for Concrete/Masonry

• Improves blade life, cuts dust and cools blade.
• Keep water flow consistent (neither too much nor too little).

4. Smooth Motion

• Slide the saw in gradually; pull back only slightly between passes.
• For deep cuts, make multiple shallow passes rather than one aggressive pass.

5. Blade Selection Matters

• Diamond blades designed for your material (e.g., general‑purpose vs. asphalt vs. concrete) make a big difference in cut quality and speed.

6. Rest Periods on Long Jobs

• High RPM cutting generates heat; brief pauses help prolong engine life and reduce fatigue.

Safety Reminders

• Always wear eye, ear, and respiratory protection with cut‑off saws.
• Use steel‑toe boots, gloves, and cut‑resistant clothing.
• Never remove or defeat safety guards.
• Secure workpiece if possible to avoid kickback.

Recommendation for Detailed Service Info

For full specifications, torque values, and step‑by‑step service procedures, you can download the official Husqvarna K970 operator’s manual it includes engine specs, routine maintenance, safety, and parts diagrams
