Mantis 7940A 4-CYCLE TILLER

Mantis 7940A 4-CYCLE TILLER

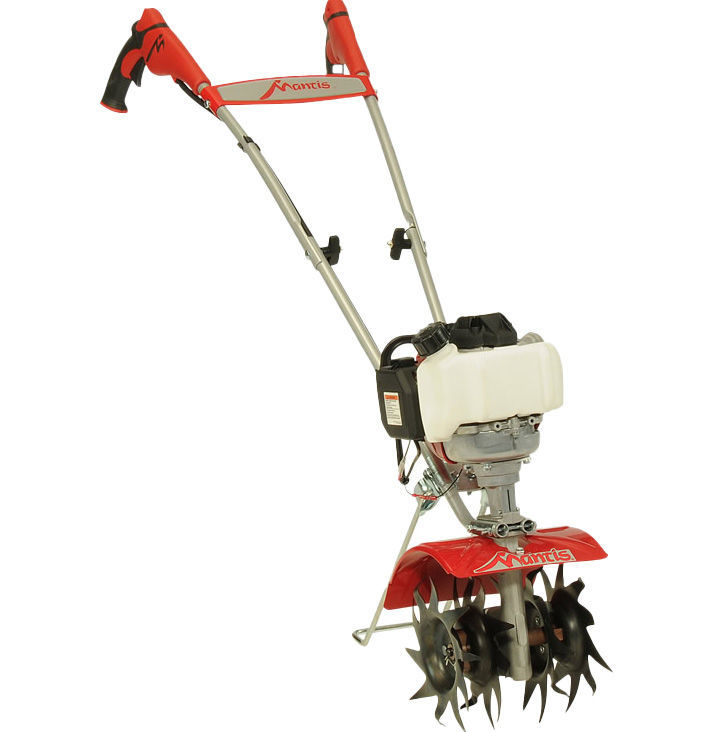

The Mantis 7940 is a lightweight, narrow 9-inch 4-cycle tiller powered by a Honda engine, capable of digging up to about 10 inches deep thanks to its high-speed 240-RPM tines, which can also be reversed for shallow cultivation and weeding, making it excellent for tight garden beds and between-row work; to keep it running smoothly, owners should follow simple troubleshooting steps such as using fresh gasoline (no oil mix needed for this 4-cycle model), checking that the air filter isn’t clogged, ensuring the spark plug is clean, tightening any bolts that may loosen from vibration, and verifying that the engine is fully seated on the worm-gear housing if the tines fail to turn, while performance issues like shallow digging are often fixed by gently rocking the tiller to help the tines bite, making repeated passes rather than forcing a deep cut on the first run, and moistening extremely hard soil the day before tilling; for the best efficiency, the 7940 should be run at a steady pace without excessive downward pressure, with the operator pulling the machine backward when deeper penetration is needed, using overlapping passes like vacuuming to thoroughly break up soil, warming the engine for a couple of minutes before heavy work, flipping the tines to cultivation mode for fine soil preparation or weeding, and performing routine after-use maintenance such as cleaning the tines, checking hardware, inspecting the throttle cable, and draining old fuel for longer storage, all of which ensures smooth operation, consistent depth, and long-term reliability.

Depth Capabilities

• The 7940 is rated to till up to 10 inches (25.4 cm) deep.
• Its tines spin at up to 240 RPM, helping it to cut into compact or tough soil.
• You can reverse the tines: in the “cultivator” mode, the tines are flipped so they only cultivate shallow soil (manual suggests surface cultivation of around 2 inches when reversed).
• The tiller has a narrow, 9-inch working width, making it ideal for tight beds, raised gardens, or between rows.

Easy Troubleshooting Tips

Here are common problems that users encounter with the Mantis 7940 and how to address them:

1. Engine Won’t Start / Hard to Start
   • Because it’s a 4-cycle Honda engine, you don’t need to mix oil and gas. But make sure you’re using fresh, correct-octane fuel.
   • Confirm proper assembly: check that handles and tines were assembled correctly per the manual.
   • Use the recoil (pull) starter correctly and ensure the throttle trigger is not blocking the choke or fuel flow.
2. Tines Won’t Turn / No Engagement
   • On the 7940, the tines only turn when you squeeze the throttle trigger. Letting go of the trigger stops the tines.
   • If the tines are not turning even when throttled, the manual notes an issue: “the engine isn’t sitting all the way down on the worm gear housing” reseat the engine if needed.
   • Check the gearbox grease and make sure the gear housing is properly lubricated.
3. Poor Performance / Not Digging Deep Enough
   • Use the “rocking” motion: gently rock the tiller back and forth while working a spot. This helps the tines bite and dig deeper.
   • Make multiple passes instead of trying to dig full depth in one go. According to the manual: for deeper tilling, move the tiller slowly back and forth over the same area.
   • If the soil is especially hard or compacted, consider moistening it the day before tilling. Slightly damp soil (not muddy) improves penetration.
4. Engine Running Rough / Stalling
   • Clean or replace the air filter regularly, a clogged air filter will reduce performance.
   • For 4-cycle models, make sure to drain old fuel if storing: stale fuel can harm performance or lead to clogs
   • Inspect throttle and clutch mechanism; ensure the throttle cable is properly routed and not binding.
5. Vibration / Loose Bolts
   • Regularly check and tighten all fasteners (handles, tine retaining pins, etc.). Vibrations from tilling can loosen things over time.
   • After use, clean soil off tines and other parts, this will reduce wear and prevent buildup that could unbalance the tiller.
6. Storage Issues
   • Before storing for a long period, drain the fuel tank to avoid fuel degradation.
   • Clean the tines, lightly oil them or spray with a protective spray to avoid rust.
   • Use the built-in kickstand (the 7940 includes one) to keep the tiller stable when it’s not in use.

Tips for Best Efficiency & Use

To maximize performance and longevity of your Mantis 7940, here are some best practices when operating:

• Warm-Up: Let the engine run for 2–3 minutes before starting serious tilling. This helps warm up the oil and ensures smoother operation.
• Use Proper Technique: Treat the tiller like a vacuum cleaner, use a steady, overlapping back-and-forth motion rather than pushing down hard.
• Depth Control: To get full 10" depth, make repeated passes on tough soil. Don't expect to get maximum depth on the first pass in hard ground.
• User Orientation: When tilling, pulling the tiller backward helps the tines dig deeper — the design of this model favors backward motion for added bite.
• Switch to Cultivator Mode: When you’ve finished deep tilling, reverse the tines to use it as a cultivator (shallow, gentler soil turning).
• Soil Prep: If dealing with very compacted or clay-heavy soil, water it lightly a day before tilling (soil should be damp, not wet).
• Maintenance Routine:
  1. After each session, rinse off soil and debris from the tines.
  2. Check and clean the air filter periodically.
  3. Tighten all hardware (tine retaining pins, handle bolts, etc.).
  4. Lubricate or grease the gearbox if the manual recommends it (or check grease levels).
  5. Store the tiller in a dry place, with fuel drained if you’re leaving it idle for a month or more.
• Use Attachments: Mantis offers some optional attachments you may be able to use with the 7940 for other garden tasks. Check Mantis’s site or the manual for compatibility.
