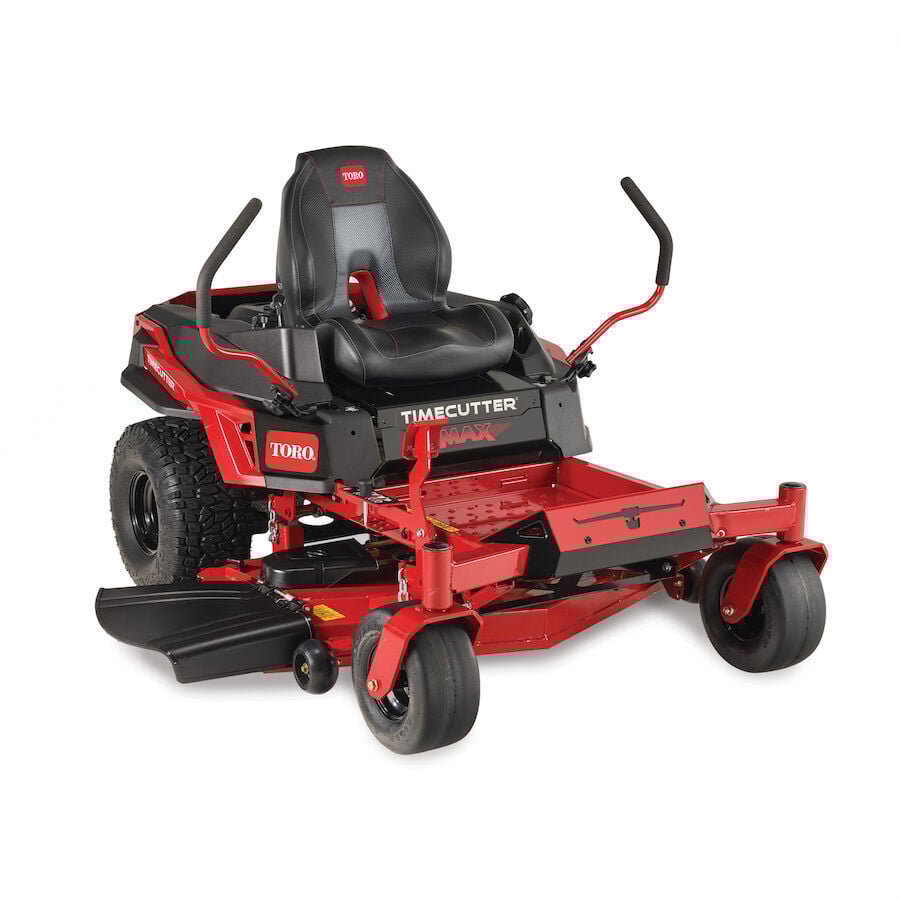

Toro TimeCutter Max 77501
The Toro TimeCutter Max 77501 is a powerful residential zero-turn mower featuring a 50-inch fabricated steel deck and a 23-horsepower Kawasaki V-twin engine, making it highly suitable for medium-to-large lawns ranging from roughly 1 to 3 acres, especially in yards with open turf and minimal tight obstacles. Its zero-turn design allows precise maneuvering around trees, flower beds, and landscaping features, while the wide 50-inch deck maximizes efficiency by reducing the number of passes needed to cover the lawn. For best performance, homeowners should plan mowing patterns in straight, parallel swaths to take full advantage of the deck width, adjust the cutting height according to grass type and season typically between 2.5 and 3.5 inches for most conditions, keep blades sharp, and maintain a clean deck underside to ensure proper airflow and prevent clumping. Routine maintenance, including checking tire pressures, inspecting belts and pulleys, greasing bearings, and keeping the engine air intake clean, is essential to prevent common issues such as uneven cuts, scalping, or drive and traction problems. Easy troubleshooting generally involves checking fuel quality, battery connections, spark plugs, air filters, blade condition, and deck leveling. Adjusting mowing speed according to terrain and grass thickness, using appropriate discharge or mulching options, and adhering to regular maintenance schedules ensure the 77501 delivers efficient mowing, clean cuts, and a professional finish, making it a highly effective and reliable choice for homeowners seeking both speed and precision on larger residential lawns.
Yard‑Size Capabilities
The 77501 is equipped with a 50″ (127 cm) fabricated steel IronForged® deck, a 23 hp Kawasaki FR691V (726 cc) engine, and dual Hydrostatic HG‑EZT2200 transmissions. It has a cutting‑height range of about 1.5″ to 5.0″ and a fuel capacity of approx. 5 gallons. With this 50‑inch deck width and power, this mower is very well suited for mid‑to‑large sized residential lots, especially where you have a fair amount of open turf with fewer tight spaces. For example, yards in the 1 to 3 acre range (depending on obstacles, terrain, trees) are a good fit — the wide deck means fewer passes, which saves time. If your property is mostly open and you can mow wide swaths, you’ll get great coverage. On properties smaller than say ½ acre, you’ll certainly still get use out of it, but you might not exploit the full width; on very large open parcels (4+ acres) you might consider a 54″‑60″ deck unit to maximize efficiency.
How to Use for Best Efficiency
To maximize efficiency, mowing quality, and machine longevity with the 77501, here are best‑practice tips:
- Use the deck width: In open lawn areas aim to make full‑width straight passes with the 50″ deck , fewer passes means less time and fuel.
- Plan your pattern: Start at one edge of your yard, mow in parallel swaths, avoid excessive overlap (which wastes time) and avoid leaving narrow residual strips that then require extra trimming.
- Adjust cutting height: The 1.5″‑5.0″ range gives flexibility. For typical healthy lawn conditions, you might set around 2.5″‑3.5″ depending on grass type/season. In high stress or heavy growth conditions raise it a bit; if you want a very clean finish, you could mow lower, but risk stressing the turf.
- Keep blades sharp & deck underside clean: Sharp blades provide clean cuts (better turf health, better appearance) and a clean underside of the deck ensures good airflow and prevents clumping or reduced performance.
- Mind your speed & obstacles: While the forward mowing speed is up to ~7 mph, going too fast in areas with obstacles, slopes or uneven ground may reduce cut quality. Slow down on tricky terrain.
- Discharge mode: The side chute is standard. If your lawn conditions allow (not overly tall/wet) using mulching or side discharge appropriately will help. The deck’s durable build (10‑gauge steel) means it is built for stress.
- Routine maintenance: Check tire pressures (uneven pressure can cause uneven cut), change oil/filters as scheduled, inspect belts/pulleys, keep engine air intake and cooling fins clean. Because this model has heavier duty deck and drive, staying on top of maintenance helps maintain the performance and efficiency.
- Storage & accessibility: The 50″ width still offers good maneuverability if access/space is somewhat limited (though if you have many tight gates/flowerbeds one might still consider a narrower deck).
Easy Troubleshooting Tips
Here are common issues you might encounter with the 77501 and quick checks to help:
- Engine won’t start or runs rough:
- Check that control levers are in neutral and the blade PTO is off (many zero‑turns have safety interlocks).
- Check battery condition and connections.
- Ensure fuel is fresh and the filter is not clogged (old/stale fuel causes rough running).
- Check air filter and spark plug; dirty or worn ones reduce performance.
- Uneven cut, scalping or poor finish:
- Inspect blades for dullness, nicks or damage — replace/sharpen if needed.
- Clean underside of deck buildup of clippings or debris can reduce airflow and degrade cut quality.
- Check tire pressure (front and rear) ensure even side to side.
- Ensure deck is level side‑to‑side; if too low you’ll scalp, too high you may leave longer grass.
- On bumpy/uneven terrain, reduce speed and consider raising deck height a notch.
- Drive/traction issues (one side slower, mower doesn’t track straight):
- Front caster wheels can bind or wear; inspect for free rotation and wear.
- Because this unit uses dual hydrostatic HG‑EZT2200 transmissions, if you notice one side weaker you may need to check the drive system. Some users report belt or drive issues
- Ensure drive belts are tensioned and in good condition.
- Deck belt slipping or strange noise/vibration:
- Check deck drive belt for glazing, cracking or wear.
- Check deck spindles and bearings; see if there’s play or noise.
- Vibrations might indicate imbalance or worn components; inspect blades, spindles, and hardware.
- Reduced efficiency / fuel consumption higher than expected / overheating:
- If you’re mowing very tall, dense or wet grass or mowing too fast, the machine works harder, consider slower speed or raise deck height.
- Clean engine cooling fins/air intake ensure proper airflow for engine.
- Ensure the deck isn’t overloaded with grass buildup underneath that increases load and fuel usage.
Summary
The Toro TimeCutter Max 77501 is a robust, residential zero‑turn mower with a 50″ heavy‑duty deck, a 23 hp Kawasaki engine, and dual hydrostatic transmissions making it an excellent choice for homeowners with medium‑to‑large lawns, especially in the ~1-to-3-acre range, where the wide deck and powerful engine can really reduce mowing time. To best use it, mow in wide straight passes, set appropriate deck height, keep blades and deck clean, maintain speed based on terrain, and stay current with maintenance. When issues arise, many come down to blade or deck problems, drive/traction issues, or engine/fuel/air issues and early checks can prevent bigger problems. If you stick with good care and smart mowing patterns, the 77501 offers both efficient cut and durability.
