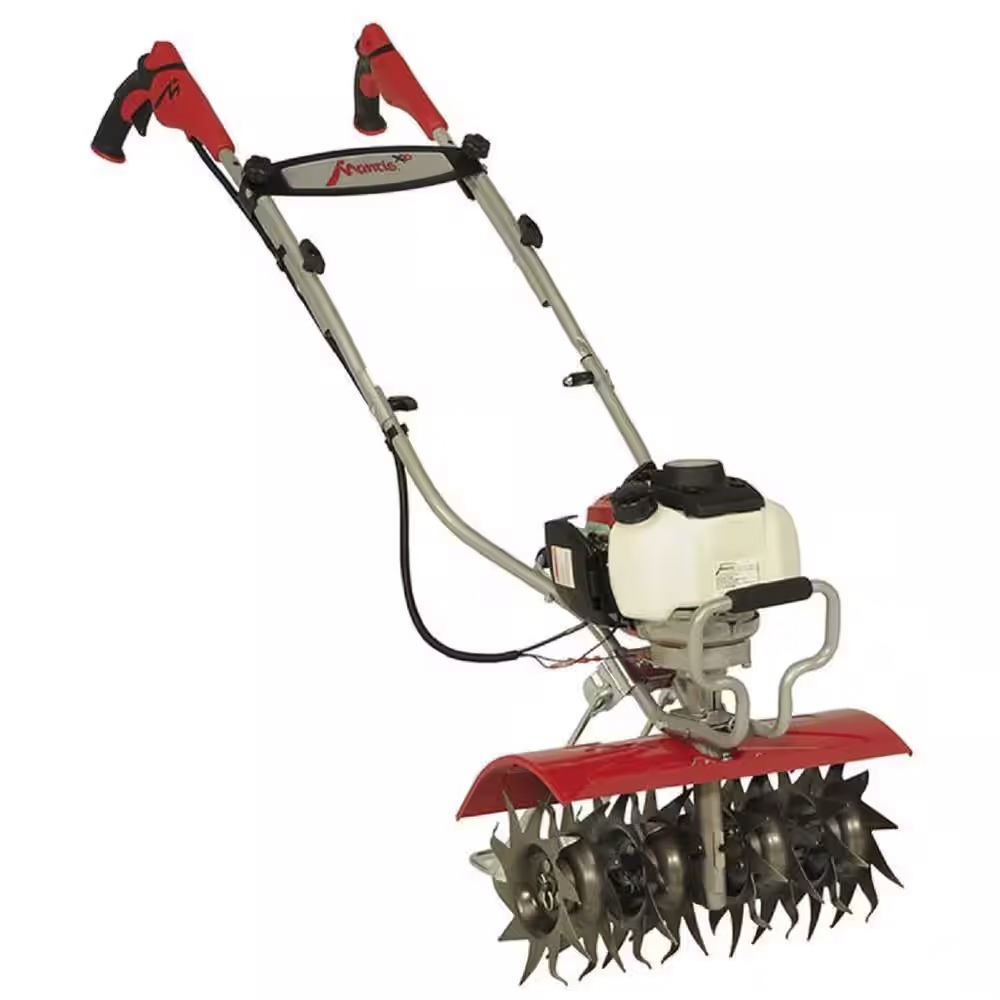

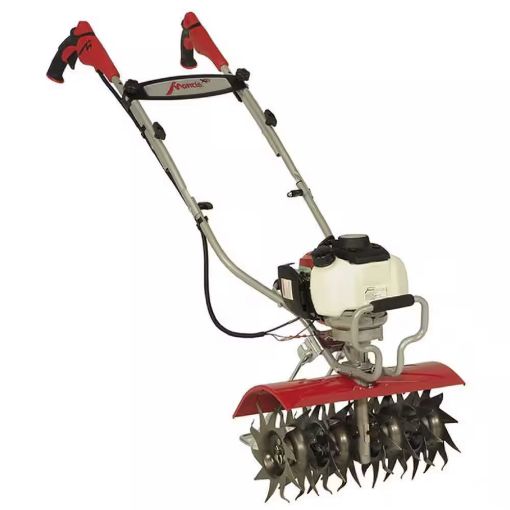

Mantis 7566A XP 4-Cycle Tiller

Mantis 7566A XP 4‑Cycle Tiller

The Mantis 7566A XP 4‑Cycle Tiller is a powerful 16-inch wide, 4-cycle Honda-engine mini tiller capable of digging up to 10 inches deep, with high-speed 240-RPM tines that can be reversed for shallow cultivation of around 2–3 inches, making it ideal for both breaking new ground and surface weeding or aeration; to keep it running reliably and troubleshoot common issues, users should ensure they are using fresh fuel (no gas-oil mix needed for the 4-cycle engine), inspect and clean or replace the air filter and spark plug regularly, tighten all bolts and tine pins to prevent vibration-related loosening, grease the gearbox as specified in the manual, check that the throttle and clutch mechanisms are operating smoothly, and verify that the gas tank vent is clear to avoid vacuum-related power loss, while poor penetration in compacted soil can often be remedied by letting the machine do the work without forcing it, using a gentle rocking motion or pulling the tiller toward you so the tines bite more effectively, and making multiple overlapping passes rather than trying to achieve full depth in a single pass; for maximum efficiency, operators should warm up the engine briefly before heavy work, use the finger-controlled throttle for smooth speed control, adjust the drag bar for desired depth, take advantage of the kickstand to pause without digging into the soil, use the adjustable handles for comfort, and after each session clean the tines, inspect hardware, and perform routine maintenance such as gearbox greasing and air filter care, all of which ensures consistent digging performance, efficient soil cultivation, and long-term reliability of the tiller.

Depth Capabilities

• According to Mantis, the 7566A has a tilling depth of up to 10 inches.
• When the tines are reversed (i.e., flipped), they can cultivate more shallowly around 2–3 inches, which is useful for surface aeration, weeding, or mixing in amendments.
• Its tines spin at a high rate (up to 240 RPM) that helps them cut into compacted or tough soil effectively.
• The tiller’s working width is 16 inches, so in one pass you can cover a decent swath.

Easy Troubleshooting Tips

Here are common issues you might run into with the 7566A and how to troubleshoot them:

1. Engine Won’t Start or Stalls
   • Because it's a 4-cycle Honda 35 cc engine, you do not need to mix gas and oil.
   • Make sure you're using fresh fuel, and if the tiller has sat for a while, drain old gas to avoid stale fuel issues.
   • Check the air filter: a dirty or clogged air filter reduces performance.
   • Inspect the spark plug: clean or replace if it's fouled or worn.
2. Poor Penetration / Not Digging Deep
   • Use the depth regulator / drag bar (on the manual) to control how deep the tines go.
   • When tilling hard or compacted soil, let the machine do the work, don’t force it too aggressively.
   • Try working backwards (pulling the tiller toward you) to help the tines bite more deeply; this is a known technique for Mantis tillers.
   • Make multiple overlapping passes: don’t expect to reach max depth on the first pass, especially in tough ground.
3. Transmission / Gearbox or Lubrication Issues
   • Grease the transmission: the manual specifies how to check and add grease.
   • Remove the transmission cover and inspect the grease level, if it’s low, add the correct Mantis grease (per manual).
4. Strange Noises / Vibration
   • Some users report a scraping noise coming from the clutch area or near the flywheel.
   • Vibration can also loosen bolts. Regularly check and tighten all hardware (tine bolts, handle bolts, etc.).
5. Fueling / Venting Issues
   • On some Mantis tillers, when the gas cap vent gets blocked, a vacuum can form in the tank and cause the engine to drop in power over time.
   • If you suspect this, test by loosening the gas cap slightly when you notice power loss.

Tips for Best Efficiency & Use

To get the most from your Mantis 7566A, here are tips for operation and maintenance:

• Start-Up: Always start the engine on a firm, level surface. Follow choke/starting instructions in the manual.
• Warm-Up: Let the engine warm briefly (maybe a minute or two) before engaging in heavy tilling, helps oil circulate and ensures smoother throttle response.
• Hold the Throttle Properly: Use the finger-controlled throttle for variable speed control; squeeze slowly and smoothly.
• Depth Control: Adjust the drag bar to set the tilling depth and let the tines pull the machine slowly especially for maximum depth.
• Tilling Technique:
  • For breaking new ground: pull toward you so the tines dig in more.
  • For cultivation/weeding: move forward with the tines reversed (shallow mode) to minimize disturbance.
  • Do overlapping passes, and don’t try to go full depth in one shot if soil is very compact.
• Use the Kickstand: The model comes with a kickstand so you can set the tiller down without letting the tines dig into the soil when paused.
• Handle Adjustment: The 7566A has adjustable height handles to suit the operator’s comfort.
• Routine Maintenance:
  • After each use: Clean soil and debris from the tines.
  • Periodically: Check greasing of the gearbox (as per manual).
  • Check fasteners (tine pins, handle bolts) regularly; vibrations can loosen them.
  • Inspect the air filter, change or clean as needed.
  • For long-term storage: drain fuel or use a stabilizer to prevent carburetor issues.
• Storage: Store it in a dry place; because it’s relatively lightweight (34 lb.), you can lift and store it more easily than heavy front-tine tillers.
