JRCO 753E tow-behind aerator
* MUST SHIP TRUCK FREIGHT. Call Us For A Great Freight Rate (800)769-3741!
The JRCO 753E tow-behind aerator is a heavy-duty lawn care tool designed for medium to large yards, capable of efficiently aerating areas up to an acre or more due to its 38-inch aeration width and plug-style tines that penetrate about 3 inches into the soil, lifting plugs to improve water, nutrient, and air penetration. It is best to use on moist but not muddy soil, so watering the lawn a day before aeration significantly reduces resistance and ensures consistent hole formation. Towable by a lawn tractor or zero-turn mower with a proper hitch, it requires even weight distribution and a smooth, steady pace of roughly 5 mph to maintain efficiency and prevent missed areas and overlapping passes in a cross-pattern help ensure thorough coverage. Common troubleshooting issues include difficulty pulling through compacted soil, electrical actuator failures preventing tine lift, uneven aeration due to incorrect hitch height or uneven ground, and clogged or bent tines caused by rocks or debris, all of which can be mitigated with proper preparation, regular maintenance, and careful operation. For maximum performance, mow the lawn slightly shorter than usual, clear debris before use, inspect tines for damage, maintain consistent speed, and store the aerator in a dry area to prevent rust and corrosion. By following these practices, the 753E can significantly improve lawn health, reduce soil compaction, and promote better root growth, making it a reliable and efficient choice for both homeowners with larger properties and professional turf managers.
Product Overview

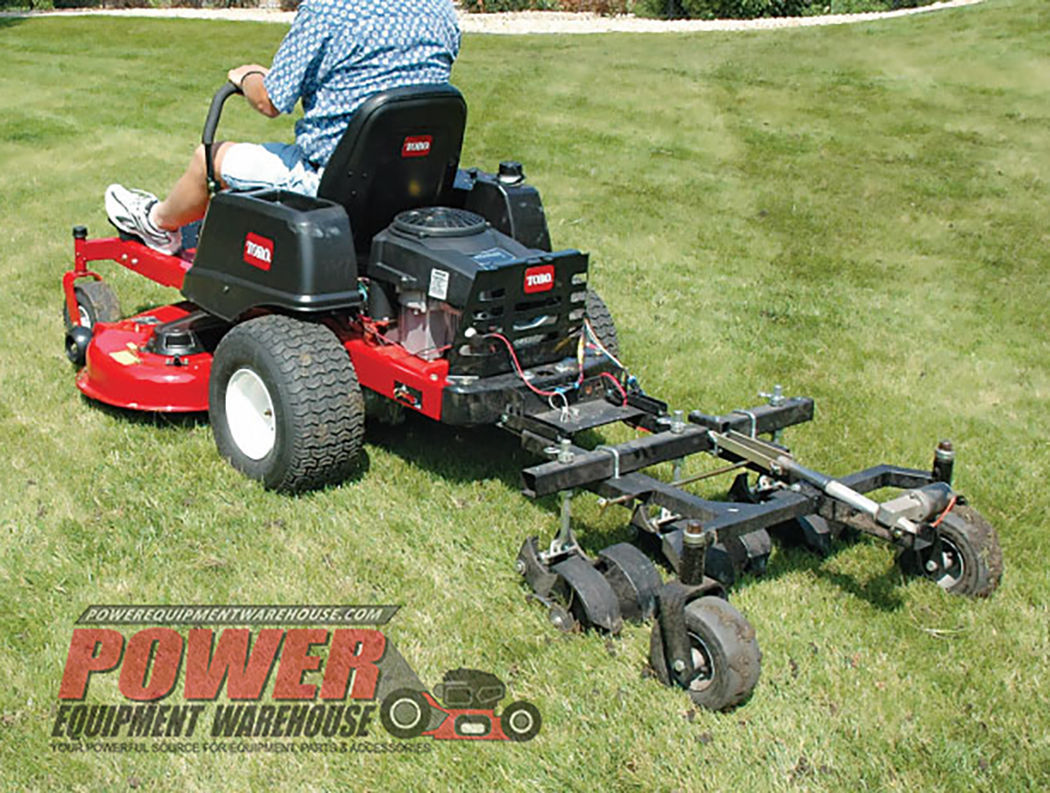

753E JRCO 38" Tow‑Behind Hooker Aerator (also sold as other 753/JRC variants) is a tow‑behind lawn aerator that creates plug holes to relieve soil compaction and improve water and nutrient penetration.
Key Specs
- Aerating Width: ~38–38.25 in (about 3.2 ft) per pass.
- Hole Size & Depth: ~½″ wide × 1¼″ long, up to ~3″ deep.
- Productivity: Around 1.5 acres/hour @ 5 mph (~66,000 ft²/hr.) under ideal conditions.
- Mount: Tow‑behind via two‑point hitch (e.g., lawn tractors, compact mowers).
- Weight: ~200–210 lbs. depending on configuration.
It uses floating rotor heads with spikes that pierce soil and lift plugs out, spreading them across the lawn for organic breakdown, no engine on the unit itself.
Yard Size & Suitability
Best For
- Medium to Large Lawns: Because of its 38″ width and decent speed, it’s efficient on bigger yards (e.g., ½ acre to 1+ acre). At ~66,000 ft²/hr., it can cover large areas quickly.
- Sports fields or golf fairways: It’s designed for turf where true plug aeration is preferred.
Considerations
- Small yards (<0.25 acre): Maneuvering a 38″ tow‑behind may be overkill unless you have a larger tractor to pull it easily.
- Equipment to tow: You’ll need a lawn tractor/zero‑turn with a hitch that can safely pull the weight and provide steady, modest forward speed.
Troubleshooting Common Issues
1. Difficulty Moving or Pulling Through Soil
Symptom: Aerator is hard to pull, especially when tines are lowered.
- Cause: Dry, compacted soil or heavy clay can resist penetration.
- Fix: Water the lawn a day or two before aeration so soil is moist (but not muddy). Moisture improves tine penetration and reduces drag.
2. Electric Actuator Issues
Symptom: Aerator heads won’t raise/lower with the switch.
- Cause: Wiring/actuator power problem.
- Fix:
- Check switch harness and connections for corrosion or loose clips.
- Inspect ground connection on the tractor side.
- Refer to the manual’s actuator circuit section (there are basic electrical diagrams).
3. Uneven Aeration or Missing Plugs
Symptom: Some areas don’t get holes while others do.
- Cause: Uneven weight distribution or wheels lifting.
- Fix:
- Ensure even hitch height and balanced weight on the pulling vehicle.
- Drive at a smooth constant pace (too slow or too fast can reduce consistency).
4. Clogged or Bent Tines
Symptom: Tines bind or aren’t penetrating.
- Cause: Rocks, roots, or debris can bend or clog tines.
- Fix:
- Clear debris from spikes regularly (pause and rinse/knock off soil).
- Inspect tines before use; replace bent ones.
- Avoid areas with large roots or rocks where possible.
Tips for Best Performance & Efficiency
1. Prep the Lawn
- Lightly water your lawn 12–24 hrs. before aerating so soil is moist.
- Mow a bit shorter than usual before aeration for easier access to soil.
2. Plan Your Passes
- Overlap slightly on each pass to avoid missed spots.
- For thorough aeration, go in two perpendicular directions (cross‑pattern), though even one pass with overlapping count is effective.
3. Maintain Proper Speed & Tow Setup
- Aim for a consistent ~5 mph if your vehicle can handle it, this matches the productivity rating.
- Keep the aerator level and hitch at the right height so tines penetrate evenly.
4. Routine Maintenance
- After use, clean soil from tines and check for bent/damaged spikes.
- Store in a dry place to prevent rust and electrical component corrosion.
Quick Recap
Best Uses: Medium to large lawns, professional turf areas.
Strengths: Efficient plug aeration, good coverage per pass, low maintenance.
Needs: Tow vehicle with hitch, soil moisture prep, operator attention to speed and patterns.
