Little Wonder 6033-00-01

Little Wonder 6033-00-01

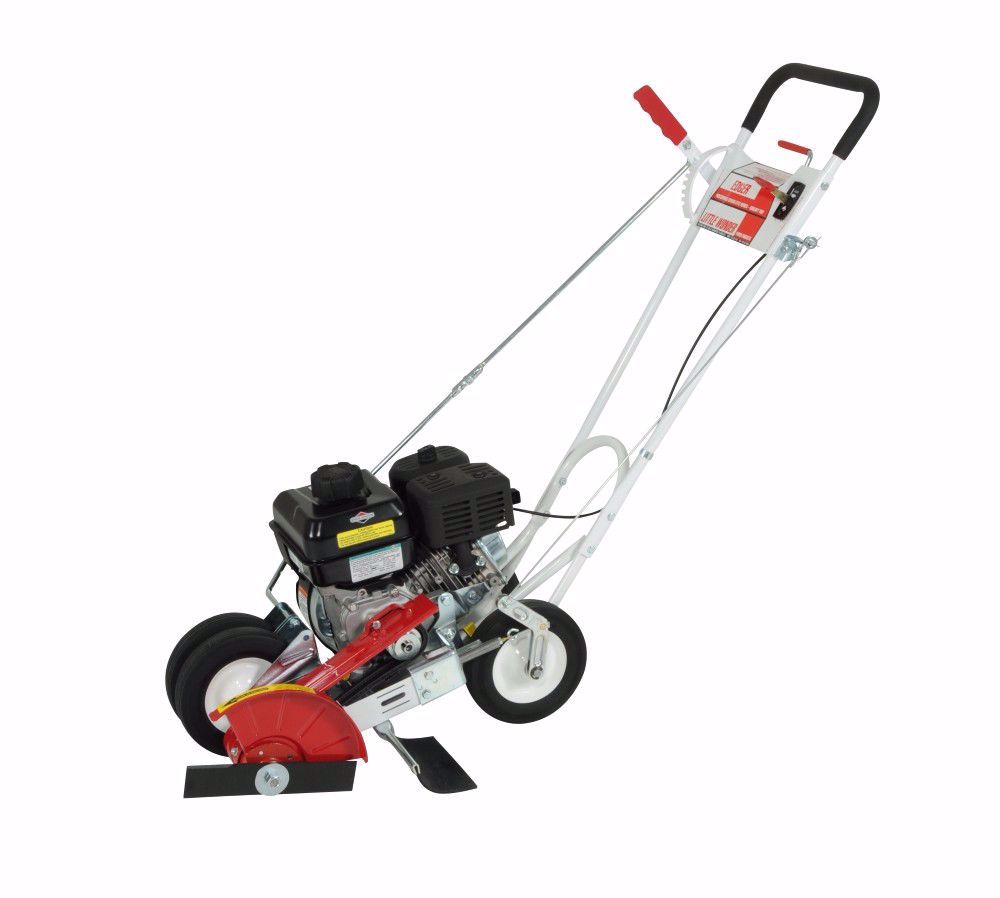

The Little Wonder 6033-00-01 is a commercial-grade walk-behind edger designed for deep, clean, and consistent lawn edging, built around a heavy cast-iron cutter head, a 10-inch steel blade, and a durable dual-belt drive system that delivers strong torque and smooth engagement even in tough soil. Its ratcheting depth-control arm allows precise adjustment up to 4 inches deep, enabling everything from light touch-up edging to cutting through compacted turf along curbs, sidewalks, and driveways. For best efficiency, set only the depth you need; deeper cuts increase resistance and fuel use; then walk at a steady pace, letting the machine’s four-wheel design maintain stability and blade alignment. Keep the blade sharp or flip it to a fresh cutting edge to reduce strain on the engine and improve cut quality and periodically check that the belt tension is correct so power transfers cleanly to the blade without slipping. Troubleshooting is generally straightforward: if the engine won’t start, verify fresh fuel, a clean air filter, proper choke use, and a healthy spark plug; if the blade doesn’t spin or seems weak, inspect the dual belts for wear, ensure the blade-engagement lever is fully activated, and check the cutter-head bearings for drag; if vibration or noise increases, tighten all hardware, inspect the blade for bends, and verify that pulleys and set screws are secure. Regular lubrication of the cutter-head pivots, routine oil checks, and keeping the belt guard firmly installed all help maintain long-term performance. By using controlled depth, maintaining sharp blades and proper belt tension, and following a smooth operating rhythm, the 6033-00-01 delivers powerful, efficient, and professional edging results with minimal downtime.

Depth Capabilities

• The 6033-00-01 model has a maximum cutting (edging) depth of up to 4 inches.
• It uses a 10" steel blade with a fixed cast-iron cutter head, giving it good durability and leverage for deep cuts.
• Depth adjustment is made via a ratchet-arm mechanism: you pull a lever to disengage from the ratchet, slide to change depth, and lock into the notch for the chosen depth.

Easy Troubleshooting Tips

Here are some common problems and how to troubleshoot them for this edger:

1. Engine Won’t Start or Runs Poorly
   • Fuel: Make sure you’re using clean, fresh fuel. Old gas can cause starting issues.
   • Spark Plug: Check if it’s dirty, fouled, or worn; clean or replace it.
   • Air Filter: A clogged air filter will reduce engine performance. Clean or change it.
   • Throttle / Choke: Use the choke properly on cold starts, then adjust as needed once the engine warms.
2. Blade Doesn’t Spin / Engage
   • Belt Drive: The unit has a dual belt drive. Check the tension on both belts — if they’re loose or worn, power to the blade may slip.
   • Blade Engagement Control: Make sure you're fully engaging the blade lever; if it’s not fully engaged, the blade won’t spin.
   • Bearings / Cutter Head: Inspect the cutter-head bearings or the cast-iron head for damage or wear; bad bearings can cause dragging or locking.
3. Uneven Cutting or Poor Edge Quality
   • Ensure the depth lever and ratchet are properly set and not slipping.
   • Check that all four wheels are aligned and stable; the 6033-00-01 has a four-wheel design for stability.
   • Verify the blade is sharp. The 10″ steel blade used on this model is double-sided / sharpened on four edges, so you can flip it to extend life.
4. Excessive Vibration or Noise
   • Tighten all hardware (bolts, nuts) loose parts cause vibration.
   • Inspect the pulleys, blade nut, and set screws; loose set screws or a loose blade nut can introduce wobble.
   • Check for bent or damaged blade; a bent blade will vibrate badly.
5. Belt / Guard Issues
   • Make sure the belt guard is properly attached; this protects the belts and keeps debris off them.
   • If belts are worn or cracked, replace them. Check them regularly.

How to Use It for Best Efficiency

To maximize performance and longevity, here’s how to operate the 6033-00-01 efficiently:

1. Setup Before Cutting
   • Adjust the cutting depth to just what you need: use the ratchet-arm to lower or raise the blade. Going deeper than necessary wastes engine power and increases wear.
   • Make sure belt tension is set correctly from the operator controls: too loose = slipping, too tight = unnecessary stress.
   • Engage the blade only when ready, using the blade control lever from your position. This gives you better control and avoids unnecessary wear.
2. Walking Technique / Movement
   • Walk at a controlled, steady pace. Pushing too fast can bog down the engine or cause poor cuts, too slow wastes time.
   • Because of the four-wheel design, the machine is stable; use that to your advantage, especially on curbs or uneven terrain.
   • For better precision, make multiple passes if needed: you don’t always need to do a full-depth cut on the first pass, especially in hard soil.
3. Blade Maintenance
   • Sharpen or flip the 10″ steel blade when it dulls: the four-edge sharpening gives you extra usable life.
   • Before every job, check the blade nut and tighten it if needed to avoid wobble or vibration.
4. Engine Care / Maintenance
   • Check the oil level daily. Top off as needed.
   • Change the oil after the first few hours of use, then on a regular schedule as per the Briggs & Stratton manual / Little Wonder’s recommendations.
   • Lubricate pivot points: specifically, the cutter head shaft, bracket, and key at rotation points every ~8 hours of use.
   • Inspect belts regularly for wear and maintain belt guard and proper tension.
5. Safe Operation
   • Always stop the engine and remove the spark plug wire before doing adjustments, clearing clogs, or maintenance.
   • Use eye protection when operating; debris can be thrown by the spinning blade.
   • Be aware of buried hazards (rocks, roots, etc.). If the blade hits something hard, disengage the blade, stop the engine, and inspect for damage.
6. Storage Tips
   • After use, clean off dirt and debris from the cutter head and frame.
   • Store in a dry place to avoid rust, especially on the cast-iron cutter head.
   • If storing for a long time, consider draining or stabilizing fuel per the engine’s recommendation.

Summary

The Little Wonder 6033-00-01 is a rugged, professional-grade edger with a 4-inch max depth, steel blade, dual-belt drive, and four-wheel stability. To troubleshoot efficiently, focus on belt tension, blade engagement, and hardware tightness. To maximize efficiency, set the right depth, walk steadily, maintain the blade and belts, and follow a careful maintenance routine.
