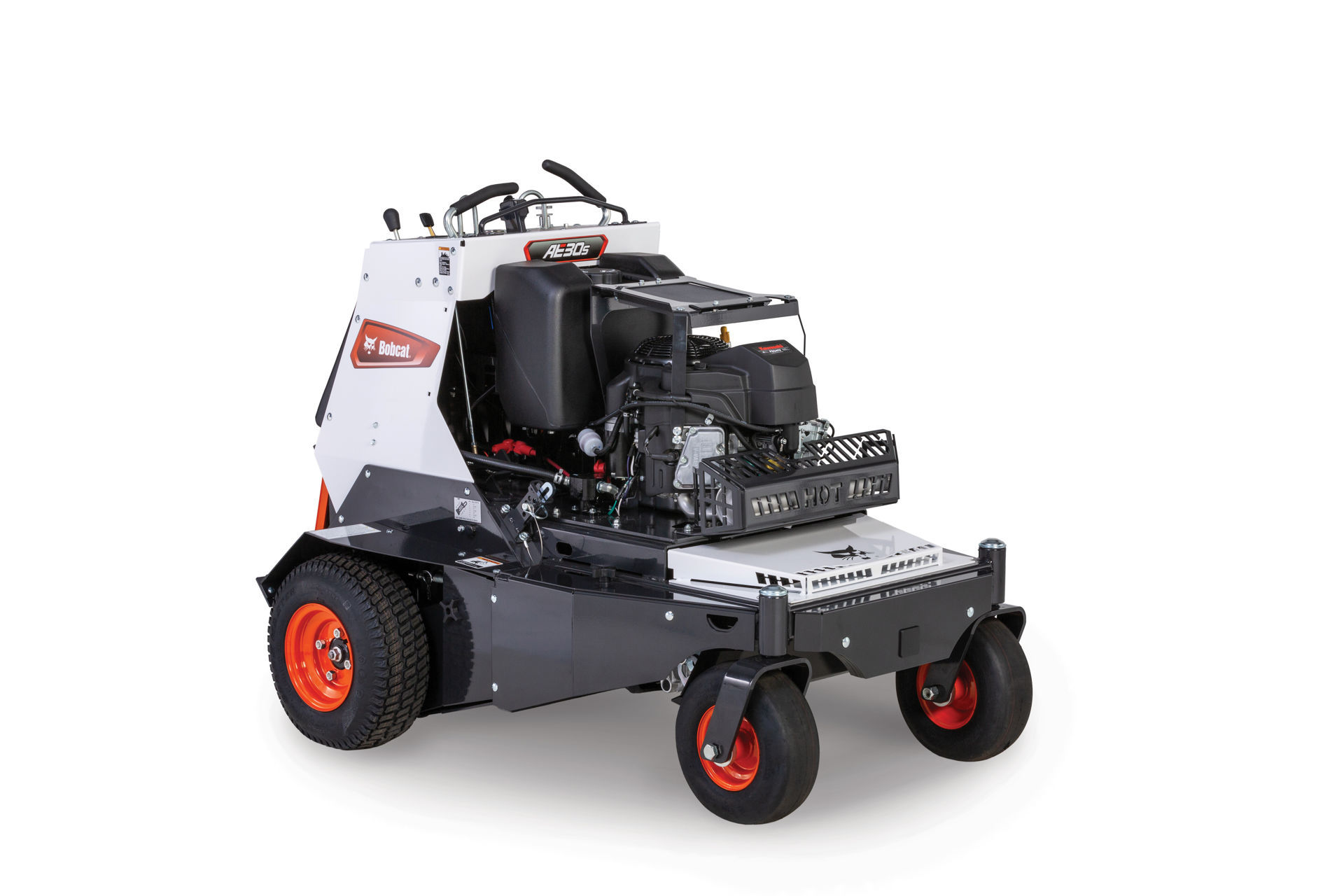

AE30S stand-on aerator

AE30S stand-on aerator

HUGE freight discounts!  Call 800-769-3741 for your discounted rate!

The AE30S stand-on aerator is a fast, commercial-grade machine built for large lawns and expansive properties, using its 30-inch aeration width, high-traction tires, and up to 5-inch tine penetration to cover more than two acres per hour when conditions are ideal, making it one of the most efficient stand-on aerators available for contractors or homeowners with substantial turf areas. To use it effectively, the lawn should be mowed first and, if the soil is dry or compacted, watered lightly 12–24 hours beforehand so the tines can pull deep, clean plugs rather than bouncing off hard ground or becoming clogged in sticky mud; once conditions are right, the operator simply stands on the platform, lowers the hydraulic tine system, and makes steady, overlapping passes across the yard, keeping a moderate and consistent speed that allows the machine to dig fully into the soil without sacrificing productivity. A cross-pattern pass, running the machine perpendicular to the first direction, can significantly improve aeration density, especially before overseeding or fertilizing. Common troubleshooting issues typically relate to soil moisture, traction, or tine condition: shallow plugs usually mean the operator is moving too quickly or the soil is too dry; uneven depth often comes from worn or bent tines; and wheel slip during operation typically indicates wet or muddy ground that should be avoided until firmer. After each use, cleaning soil buildup from the tines and frame, checking belts or chain tension, inspecting engine oil and filters, and storing the aerator in a dry place will prolong its lifespan and maintain peak performance.

Yard Size Capabilities

The AE30S is a 30-inch-wide stand-on core aerator built for fast, professional-level turf aeration. It features 48 hardened coring tines that penetrate up to about 5 inches deep, which improves water, air, and nutrient movement into the root zone of turfgrass.

With its 30-inch working width and nearly 7.4 mph forward speed, the AE30S can potentially aerate over 2 acres per hour under ideal conditions, so it’s excellent for medium to large lawns, estates, commercial landscapes, and acreage where plug aeration results are desired quickly.

Example coverage estimates (actual time varies):

• ~0.5 acre: ~10–20 min
• ~1 acre: ~20–40 min
• 2+ acres: ~1 hour or less

These are approximate times based on maximum productive speed; real results depend on terrain, obstacles, and soil conditions.

Common Troubleshooting Tips

Even with a robust machine like the AE30S, a few issues can crop up in the field. Here are common problems and how to address them:

▸ Tines Not Penetrating Fully

• Soil too dry or compacted: Lightly water the lawn 12–24 hrs. before aerating so the soil is moist but not muddy.
• Depth settings: Make sure depth stops or hydraulic controls are set to allow the full 5-inch depth and that tines are fully engaged before moving forward.

▸ Uneven Plug Depth / Pulling Small Plugs

• Operator speed too fast: Slow your pace to give tines time to reach full depth.
• Tine condition: Inspect tines; if they’re bent or dull, replace them to maintain clean, consistent cores.

▸ Tires or Wheels Slipping

• Wet, muddy, or sandy soil can reduce traction.
• Built-in tire scrapers help keep tires clean, but if you notice slipping, stop, clear debris, and adjust speed.

▸ Engine/Drive Issues

• Check fuel, air filter, and engine oil before each use.
• Ensure belts and chains are properly tensioned and not worn. (AE30S has automatic chain tensioners, but regular inspection is still good practice.)

If serious mechanical issues arise, contact a qualified service tech, especially for hydraulics or engine problems.

How to Use for Best Efficiency

To get the most from your AE30S and ensure healthy turf results:

✔️ 1. Prep the Lawn

• Mow grass to normal height.
• Water lightly a day before if soil is very dry; avoid aerating in saturated conditions.

✔️ 2. Start and Set Up

• Warm up the engine per manufacturer recommendations.
• Confirm depth settings (hydraulic control and depth stops) are appropriate for your soil.
• Stand on the operator platform and get comfortable with controls. ✔️ 3. Establish an Efficient Pattern
• Begin at one edge and work straight passes across the lawn, overlapping slightly each pass.
• After completing a full grid, you can do a perpendicular pass (cross-pattern) for deeper coverage, especially if overseeding.

✔️ 4. Maintain Consistent Speed

• Keep a steady pace so tines fully insert and pull complete plugs, too fast means shallow holes; too slow wastes time.

✔️ 5. Post-Aeration Care

• Leave cores on the lawn; they break down and return nutrients.
• Consider overseeding or fertilizing immediately after aeration to maximize seed-to-soil contact.

✔️ 6. Routine Maintenance After Use

• Clean tines and undercarriage to remove soil buildup.
• Check for wear on tines, belts, or chains.
• Store in a dry place to prevent corrosion.

Summary

The AE30S stand-on aerator is rugged and fast, capable of soil penetration up to ~5 inches and covering over 2 acres per hour, making it ideal for larger properties and professional use. Proper lawn prep, appropriate pacing, thoughtful depth control, and basic care keep your aeration effective and efficient. Regular troubleshooting (checking soil conditions, tine wear, and traction) ensures consistent results from season to season.
