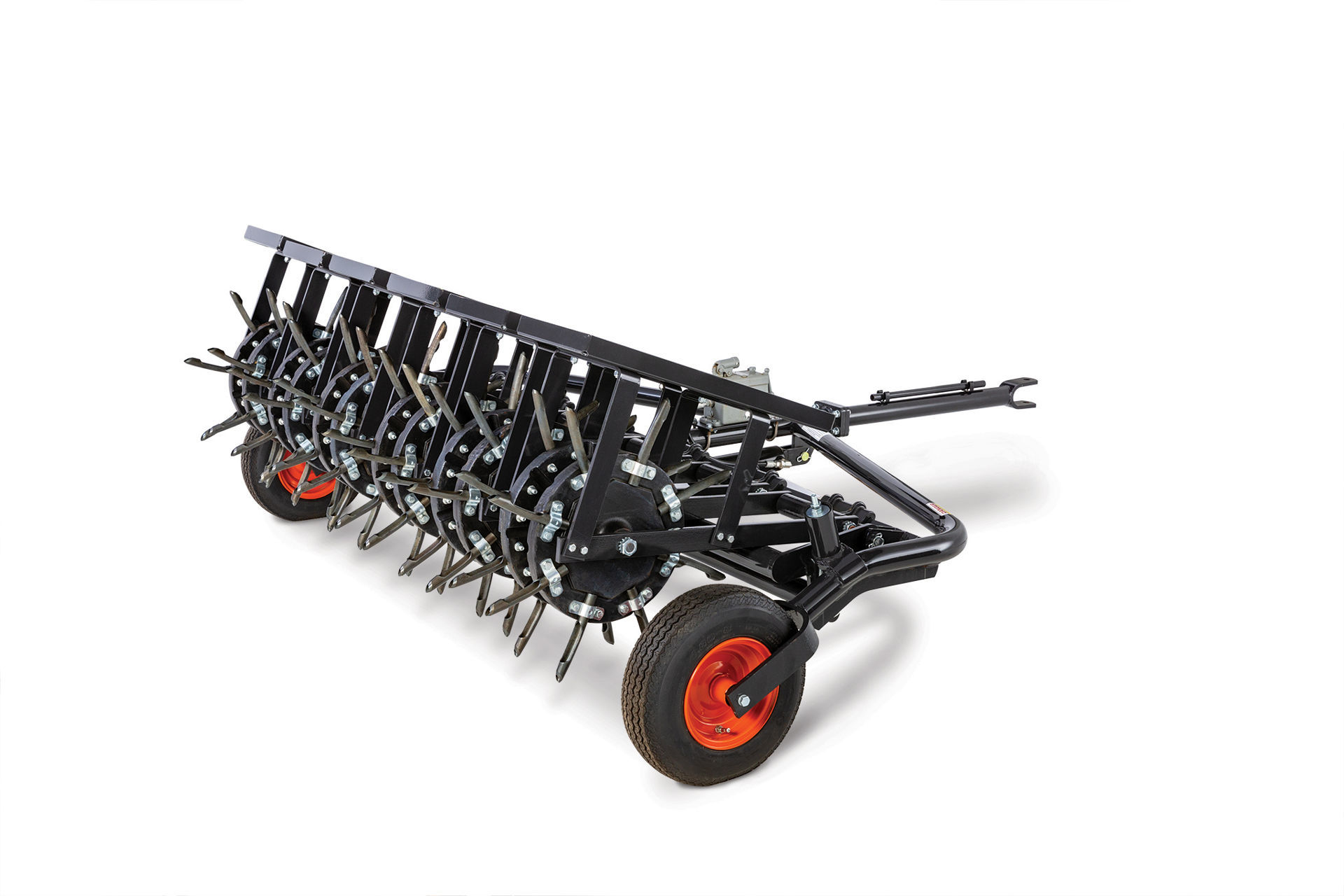

Ryan AE72 tow-behind aerator
HUGE freight discounts! Call 800-769-3741 for your discounted rate!
The Ryan AE72 tow-behind aerator is a heavy-duty, high-capacity machine designed for large properties and professional turf environments, delivering a full 72-inch working width and the ability to aerate up to three acres per hour when paired with a capable tow vehicle. Its design allows operators to add substantial weight to the built-in trays for deeper tine penetration, making it effective even in compacted soils, provided the ground has been properly prepared by mowing and lightly watering 24–48 hours beforehand. For best performance, the operator should maintain a steady, moderate towing speed that gives the tines time to reach full depth, avoid sharp turns while the tines are engaged, and ideally make perpendicular cross-passes to maximize soil loosening and air exchange. Efficiency depends heavily on proper setup: ensuring tines are straight, clean, and not worn; confirming all hitch hardware is tight; and distributing added weight evenly to prevent uneven hole depth. Troubleshooting is generally straightforward, shallow holes typically indicate dry or overly hard soil, lack of added weight, or excessive towing speed; uneven penetration can result from worn tines, rocky terrain, or poor balance; and poor maneuverability often stems from trying to turn too tightly or pulling the unit with an underpowered vehicle. After use, cleaning soil from tines and inspecting for wear helps maintain longevity, while storing the aerator in a dry area prevents rust. Because of its wide deck and robust build, the AE72 is best suited for properties over one acre, sports fields, commercial landscapes, and golf course fairways, where its size and speed turn what would be a lengthy job into an efficient, uniform aeration process with professional-grade results.
Overview — AE72 Aerator
The AE72 is a heavy-duty, tow-behind core aerator designed for large turf areas rather than small residential lawns.
Key Capabilities
- 72″ working width; very wide coverage per pass.
- Aerates up to ~3 acres per hour, ideal for golf courses, sports fields, and large residential properties.
- Up to 192 tines (standard 96, optional doubling) higher tine count increases soil perforation density.
- Six weight trays to add ballast for deeper penetration in tough soils.
- Tow-behind design must be pulled by a tractor, UTV, or similar capable vehicle (check your vehicle can tow ~1,600 lb.).
Best yard size: Ideally more than 1 acre and up to several acres, given the wide coverage and peformance. For small residential lawns <¼–½ acre, this might be oversized and harder to maneuver.
Common Troubleshooting Issues & Tips
Although specific AE72 manuals cover details, many core aerators share common practical challenges:
1. Holes aren’t deep enough
- Cause: Soil too dry or compacted.
Fix: Water lawn lightly 24–48 hrs. before aerating to soften ground (moist but not muddy). - Add weight: Put sand/concrete blocks in weight trays to drive tines deeper.
- Limit towing speed: Too fast → shallow holes. Stay at appropriate equipment speed.
2. Tines clog or don’t penetrate evenly
- Check tines: Bent, dull, or incorrect mounting reduces performance, inspect and replace if needed.
- Terrain obstacles: Rocks/roots can deflect tines, clear the area first.
3. Tow vehicle handling issues
- Safety: Avoid sharp turns with tines engaged and raise to transport position on hard surfaces like driveways.
- Braking/traction: Tow vehicle may take longer to stop; plan operation in open space.
4. Aerator not picking up plugs
- This isn’t specific to AE72 but common with core aerators. Ensure soil moisture is right, and don’t expect full plug removal in very dry/hard soil, weight helps but won’t fully compensate in drought conditions.
How to Use the AE72 for Best Efficiency
✔️ Before You Start
- Prepare the turf: Mow and lightly water 24–48 hrs. before.
- Plan passes: Mark out straight lines; aerate in parallel passes to avoid overlaps.
- Safety check: Inspect tines, hitch hardware, and weight trays.
✔️ During Operation
- Steady speed: Go slow enough for tines to fully penetrate, don’t rush.
- Cross-aerate: For best soil loosening, consider making second passes perpendicular to the first.
- Maximize penetration: Add weight if soil is very compacted, use all trays as needed.
- Avoid sharp turns: Especially with tines engaged, can damage turf and equipment.
✔️ After Aeration
- Clean the machine: Wash soil off tines and wheels to prevent rust and clogging.
- Inspect tines: Look for wear, replace or rotate if needed.
✔️ Timing & Frequency
- Best seasons: Early fall or spring when grass is actively growing.
- Frequency: Typically, once a year for most lawns; more often if soil compaction is severe.
Summary
Pros
✔ Huge coverage ~3 acres/hr.
✔ Excellent for large lawns or turf professionals
✔ Highly customizable tine density and weight
Cons
✘ Requires tow vehicle and space to operate
✘ Overkill for small residential yards
