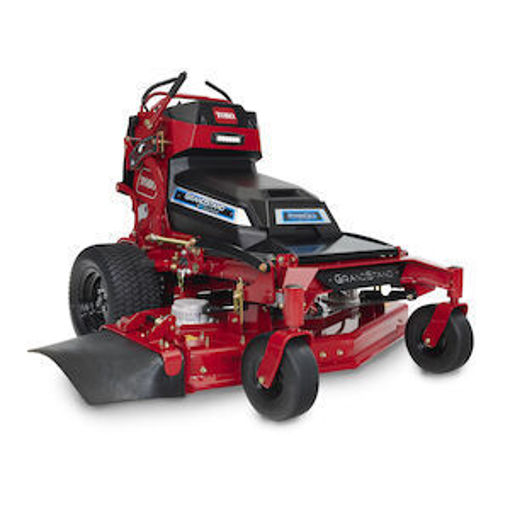

Toro Revolution GrandStand 52″ (Model 18560)
The Toro Revolution GrandStand 52″ (Model 18560) is a top-tier, commercial-grade stand-on electric mower built to deliver the perfect combination of power, precision, and efficiency for professional landscapers and large property owners. Powered by Toro’s advanced 18.4 kWh HyperCell™ battery system, it delivers reliable all-day performance with 4.5 to over 7 hours of continuous runtime on a single charge, depending on mowing conditions and deck load. Its 52-inch TURBO FORCE® 7-gauge steel deck ensures a clean, even cut across wide areas, while the adjustable deck rake system lets you fine-tune the cut quality and energy use to fit your mowing environment,maximize runtime on open turf or dial in precision on manicured lawns. The mower’s planetary gearset transmission and twin-lever steering controls provide smooth, responsive handling at speeds up to 10 mph, making it agile enough to navigate tight corners while still capable of covering multiple acres per charge. Ideal for large residential properties, commercial grounds, parks, athletic fields, and campuses, the 18560 easily handles 10 acres or more per workday, depending on terrain and grass density. Toro’s software-controlled drive system allows operators to customize machine feel, acceleration, and speed response, while Horizon360® connectivity offers fleet tracking, battery diagnostics, and maintenance reminders to maximize productivity. For best efficiency, plan your mowing pattern strategically—start along the perimeter, work in overlapping passes to minimize turns, and avoid mowing in wet conditions to prevent energy loss and deck clogging. Keep the blades sharp and balanced, clean the underside of the deck after every use, and use the adjustable deck rake to optimize airflow for your cutting conditions. To preserve battery health, avoid deep discharges, recharge in moderate temperatures, and store the machine in a clean, dry area. If the mower fails to start or loses power, check that the battery modules are securely connected and fully charged; if you experience uneven cutting, inspect for dull blades, clogged decks, or deck misalignment. Reduced runtime often points to heavy load conditions or aging battery cells, which can be mitigated by reducing travel speed, increasing cut height, or cleaning the deck to restore airflow. Excessive vibration usually indicates a bent blade, damaged spindle, or debris caught underneath the deck—always shut off the unit and inspect before resuming operation. Routine cleaning, sharp blades, and balanced deck setup all help extend runtime and deliver the crisp, consistent cut expected from Toro’s commercial lineup. Designed for heavy daily use, the Toro Revolution GrandStand 18560 gives operators quiet, emission-free mowing power with zero compromise on performance, offering an unmatched combination of speed, battery endurance, and professional-grade durability for managing large-scale turf efficiently and sustainably.
Specifications & Key Features
- Model: Toro Revolution GrandStand 52 in (18560)
- Power System / Battery: Uses Toro’s HyperCell battery system, total capacity ~ 18.4 kWh
- Charge Time: ~ 14 hours using the standard charger
- Run Time: Approximately 4.5 to 7+ hours, depending on load, deck settings, terrain, and conditions
- Deck / Cutting System:
• Deck width: 52 in (132 cm)
• Deck design: 7-gauge steel, TURBO FORCE®
• Height of cut range: 1.5 into 5.5 in (3.8 cm to 14.0 cm)
• Blade thickness / specification: 0.204 in (5.18 mm) - Traction, Speed & Controls:
• Forward (transport) speed: up to ~10.0 mph (16.0 km/h)
• Transmission: Planetary Gearset
• Steering: Twin-lever steering control (each lever separately controlling left/right drive) - Tires & Wheels:
• Drive tires: 20 in × 10.5–12 in “Super Turf” style
• Caster / front wheels: 11 in × 4–5 in semi-pneumatic - Size & Weight:
• Weight (dry / unit without load): ~1,118 lbs (≈ 507.1 kg)
• Dimensions (box / shipping): ~ 82 in × 63 in × 52.5 in - Other Features:
• Adjustable deck rake system , you can adjust “rake” on the deck to trade off cut quality vs. runtime / power efficiency
• Software / control tuning: the mower can adjust “machine feel, response, speed control” via software settings.
• Connectivity / fleet integration: compatible with Horizon360 remote monitoring / fleet management system.
Yard / Property Capability & Use Cases
Because this is a commercial stand-on mower, its effective “yard size capability” is much larger than typical residential mowers. Here’s how to think about it:
- A 52-inch deck cuts a wide swath, which reduces the number of passes needed on large sites.
- With runtime between 4.5 and 7+ hours (assuming favorable conditions), this mower can cover tens of acres in a full shift (depending on terrain, obstacles, overlap, travel distance).
- On a typical suburban or rural property (1–5 acres), this mower would be overkill but would make short work of the lawn, likely finishing in a fraction of its available shift time.
- It’s especially suited for commercial properties, parks, large estates, sports fields, campuses, HOA communities, etc., where large contiguous grass areas can be mowed efficiently.
In short: if you have a large yard, several acres, or multiple properties, this machine is well sized. For small lawns (< 1 acre), it’s more machinery than you need (but it will be very fast).
Troubleshooting Tips & Common Issues
| Problem / Symptom | Possible Causes | Checks & Fixes |
|---|
| Mower won’t engage / no drive | Battery not fully charged, one or more battery modules disconnected, motor controller fault, faulty wiring | Ensure battery pack is fully charged and connected; inspect wiring and connectors; check software / system diagnostics (Horizon360) |
| Poor cutting / streaks / uneven cut | Blades dull, deck out of level, deck rake not properly set, clogged underside, worn spindle | Sharpen or replace blades; level deck; adjust deck rake; clean underside of deck; check spindle bearings |
| Battery runtime much less than expected | Old battery modules, extreme loads, inefficient deck settings (e.g. rake too aggressive), or hydraulic / mechanical drag | Run battery diagnostics; reduce load (raise cut height, reduce speed, adjust rake); service drivetrain; ensure tires are properly inflated / no dragging parts |
| Excessive vibration or unusual noise | Bent blade, foreign object stuck, damaged spindle or housing | Disengage, shut off power, inspect blades & deck, remove debris; replace damaged parts if needed |
| Loss of traction / slipping | Wet grass, worn drive tires, low battery voltage under load | Avoid mowing in very wet conditions; replace worn tires; operate at optimal battery levels |
| Software / control irregularities | Firmware bug, mis calibrated sensors, control lever issues | Update firmware if available; recalibrate control systems; inspect control levers and sensors |
Best Practices for Efficiency & Longevity
- Optimize deck rake settings: Use a more “open rake” (more clearance to discharge clippings) when conditions allow to reduce resistance and save battery. Use tighter rake settings for finer cut quality when needed.
- Match ground speed to conditions: Don’t force the mower too fast when the grass is dense or wet; allow the mower to settle into an efficient pace to avoid bogging or overloading.
- Keep blades sharp: Sharp blades require less power and reduce stress on drivetrain and battery.
- Plan the mowing pattern: Minimize non-cut travel, avoid unnecessary turns, overlap minimally but sufficiently to avoid bald strips.
- Avoid mowing in overly wet conditions: Wet grass increases drag, clogs deck, and increases energy usage.
- Maintain drive system: Ensure tires are in good condition, check wheel bearings, and prevent mechanical drag or misalignments.
- Battery management: Avoid deeply discharging battery modules; operating within optimal ranges. Store batteries at proper state of charge and in recommended temps.
- Routine cleaning & inspection: After mowing, clean out clippings, debris, and check for buildup under deck, cooling vents, etc.
- Firmware / software updates: If the mower has software-adjustable parameters (e.g. speed, response), keep firmware current to benefit from efficiency improvements or bug fixes.
- Monitor performance via telemetry: Use the Horizon360 system (if used) to monitor battery performance, usage patterns, and maintenance schedules to catch anomalies early.
